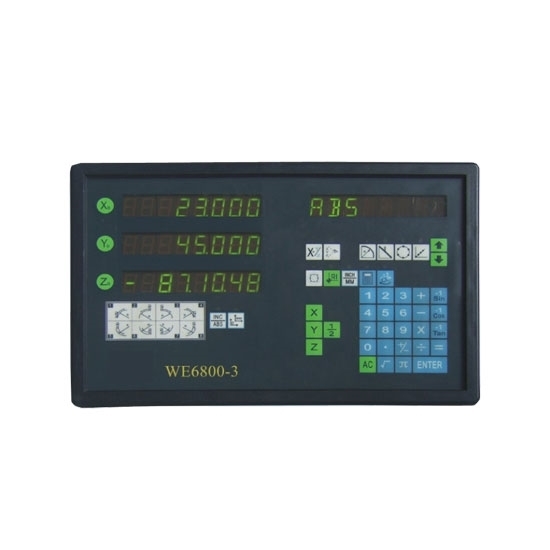

    3 Axis Digital Readout, DRO for Mills, Lathes

    5 out of 5 based on 2 reviews | Write a review
    DRO digital Readout 3 axis, input signal TTL, resolution 0.2 um, 5 um, um, um 20, or 50 um, it can be used for milling machine, lathes, surface grinders, grizzly planer ang optical comparator. The maximum measured length is 900mm, simple operation, stable and reliable.
    SKU: ATO-DR-WE68003
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital readout input voltage 90VAC- 240VAC, 50-60 Hz. Stable and powerful function, can be used for milling machines, lathes, surface grinders, grizzly planer and other machine tools.
    After purchasing a ATO DRO digital readout, you can buy a linear scale for milling machine, lathes or table saw fence.


    Model ATO-DR-WE68003
    Axis number 3 Axis
    Resolution 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm
    Input Signal TTL, Frequency < 2MHZ, Current > 1mA
    Input Voltage Range 90 VAC-240V AC
    Power Less than 15W
    Max Measuring Length 900mm
    Frequency 50 Hz - 60 Hz
    Anti Interference Capability Over 2200V
    Dimension 296mm x 184mm x 44mm

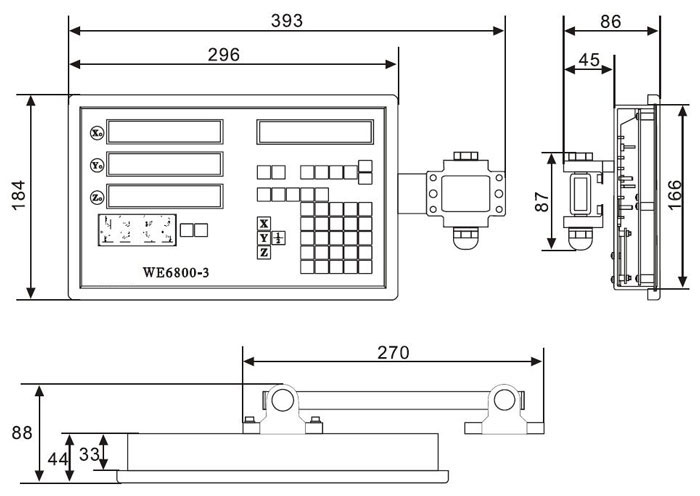

    Dimension (unit: mm)
    digital readout 3 axis dimensionTips: Digital Readout Advantages
    1. Digital readout has the function of attaching machine, which can load and unload at any time. It is common with other machine tools.
    2. Installation and adjustment procedures without other devices are convenient for maintenance.
    3. The wide range of USES, digital readout not only can be used for milling, drilling, boring and turning processing routine tasks, but also for many machine tools, measuring equipment and test equipment and special machine tools to provide the ideal solution, in fact it is suitable for all manual machine tools.

    Existing reviews of 3 Axis Digital Readout, DRO for Mills, Lathes
    Good Accuracy and Ease of Installation
    The DRO provides precise measurements, which is crucial for machining accuracy. Setting it up wasn't too complicated, and it integrated well with my milling and lathe machines.
    From: Ignatius | Date: 24/10/2023
    Was this review helpful? Yes No (0/0)
    3-axis digital readout works well
    I installed this 3-axis digital readout on my lathe, and it works very well, and I look forward to it assisting me in doing more work.
    From: Haibo | Date: 01/12/2021
    Was this review helpful? Yes No (0/0)
