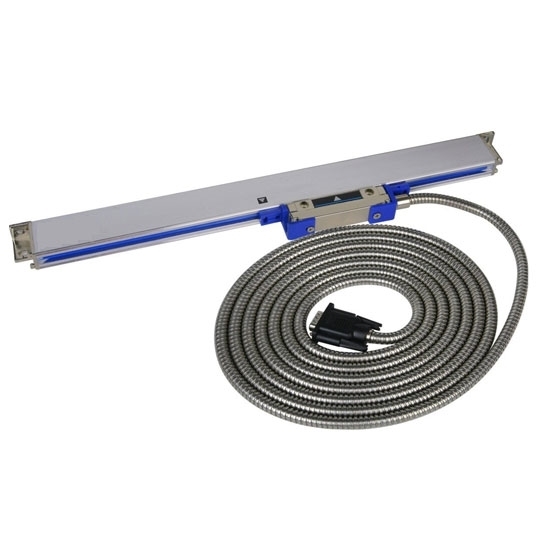

    Linear Scale, 300mm/12 inch, 1000mm/40 inch Stroke, 5 Micron

    5 out of 5 based on 5 reviews | Write a review
    High Precision digital linear scale stroke can select 250mm/10”, 400mm/16” or 800mm/32”. Resolutions 0.5 um, 1 um and 5 um. Possibility to choose the signal output and Plug type. 9 PD TTL, RS422. Pollution resistant capability is strong, good waterproof ability.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost Linear encoder resolution can select 0.5µm, 1µm or 5µm, the optional length is 350mm, 500mm and 700mm, signal output TTL or RS422. Widely applied to milling, grinding, lathe and EDM machines.
    After purchasing one ATO linear scale, you can buy a digital readout for milling machine, lathes or table saw fence.


    Model ATO-LS-WTA
    Resolution 0.5 µm 1 µm 5 µm
    Speed 30m/min 50m/min 90m/min
    Effective Movement Length 50-1000mm, (2"-40")
    Precision ±(3+3L0/1000) µm (or even higher)
    Output Signal TTL or RS422
    Grating Pitch 20 µm
    RI There is an RI every 50mm (1.9")
    Nominal Length When L0=50~1000mm, it is one file every 50mm
    When L0=1000~3000mm, it is one file per 100mm.
    Maximum Stroke Within 1000mm Scale Length: 3.5m (11 feet)
    Maximum Stroke Within 1000-1500mm Scale Length: 5.0m (16 feet)
    Maximum Stroke above 1600mm Scale Length: 10m (32 feet)
    Thickness 29mm (1.1")
    IP Rating 54
    Working Voltage 5±0.25V
    Work Waste Max, 5V, 40mA
    Reserving Temperature 0-50℃
    Working Temperature 0-40℃

    Dimensions (Unit: mm)

    linear scale WTA dimension


    Linear Scale Output Signal

    linear scale output signal

    linear scale TTL interface

    linear scale RS422 interface

    Linear Encoder Plug Types

    plug type

    linear scale plug type
    Tips: Linear scale working principle

    Transmission grating, for example, when the indicator on the grating lines and scale on the grating lines formed between a small Angle theta, and two relative of parallel grating ruler facets, in under the irradiation of light source, is located in a nearly vertical grid lines, the formation of light and dark stripes. This stripe is called the moire stripe. Strictly speaking, the direction of the moire fringe is perpendicular to the bisector of the Angle between the two grating lines. The distance between two bright or dark lines in the moire fringe is called the width of the moire fringe, denoted by W:
    W is /2 times sine of over 2, which is/over 2.
