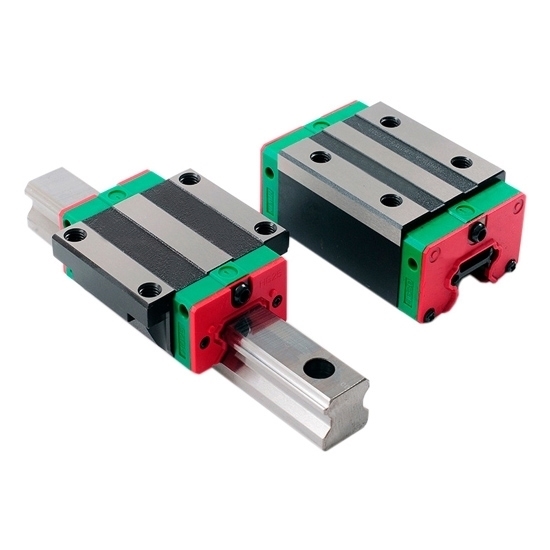

    Linear Guideways, 500 mm Linear Rails with 30 mm Guide Block

    5 out of 5 based on 1 reviews | Write a review
    The provided 500mm linear guideways with a guide block can meet the needs of your linear motion guideways applications. 300mm, 400mm~1500mm linear rails are available. Smooth 30mm linear bearing block moves easily and gently on the linear track. High precision linear guide rail is perfect for most automation requirements.
    SKU: ATO-LGB-30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a 30mm linear bearing block with 300~1500mm linear rails for The guide block moves easily and gently. Linear slide rail can achieve high speed, high precision and smooth linear motion. Cheap CNC rails are suitable for CNC precision machining and heavy-duty cutting machines.

    Guide Block Features

    30mm guide block with high speed, low friction and noise, high precision, long working period, high reliability, smooth movement, high transfer efficiency, no clearance and preload is available online.


    ATO linear guides with guide blocks are widely used in CNC precision machining, heavy-duty cutting machines, punching machines, marble cutting machines, automation equipment, grinding machines, high-speed transfer equipment and injection molding machines.


    • Model: ATO-HGWCC30
    • Block Mounting: Top to Bottom
    • Sliding track: Linear guideways

    Construction of CNC Linear Rail and Guide Block

    Construction of linear rail and guide block

    500mm Linear Rails with 30mm Guide Block Dimensions

    Dimensions of linear rail and guide block

    Datasheet (Unit: mm)

    Dimensions of 500mm linear rails with 30mm guide block

    Tips: What is the static safety factor of linear guideways?

    When the linear guideways in slow motion or action frequency are not high, we need to consider the static safety factor. The static safety factor depends on environmental and operating conditions, must be taken into consideration. A larger safety factor is especially important for linear guideways subject to impact loads.

    Existing reviews of Linear Guideways, 500 mm Linear Rails with 30 mm Guide Block
    Satisfied with cheap 500mm linear rail
    I am very satisfied with this 500mm linear rail and 30mm guide block. I used it on a 3D printer and was very surprised by how smooth these things were. You can't beat the quality at the price.
    From: Mister X | Date: 30/06/2022
    Was this review helpful? Yes No (0/0)
