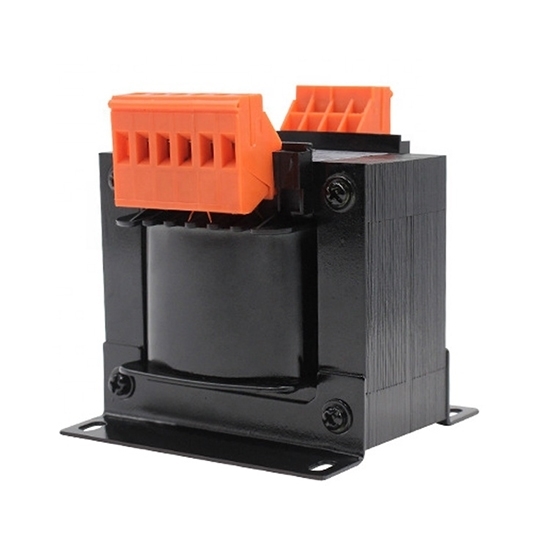

    500VA Control Transformer, 240V to 110/36/24V

    5 out of 5 based on 2 reviews | Write a review
    High efficiency single phase 500VA capacity control transformer is applicable for AC 50/60Hz, fully electric isolation between primary side and secondary sides, is designed to step down 240V input voltage to 110/36/24V three sets of output voltages.
    SKU: ATO-T-BK500VA
    30-day Returns
    Delivery date: 6-12 days

    Step down control transformer converts single phase 240V AC to 110/36/24V AC, input/ output voltage can be customized as your requirement. In general, for the 500VA control electric transformer, input rated voltage less than 500V, output rated voltage less than 240V, worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.


    Product Name Single phase control transformer
    Product Model ATOBK-500VA
    Winding Material Enameled copper wire or enameled aluminum wire
    Capacity 500 VA
    Primary Voltage (VAC) 110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Customized)
    Secondary Voltage (VAC) 6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Customized)
    Frequency 50 / 60Hz
    Insulation Level F / H
    Withstand Voltage Test Primary to secondary 2.5KV/min
    Primary to safety ground 2.5KV/min
    Secondary to safety ground 1.5KV/min
    Insulation Resistance Primary to secondary 2500V>100 megohm
    Primary to safety ground 2500V>100 megohm
    Secondary to safety ground 1500V>100 megohm
    Induction Withstand Voltage Test 125Hz/ 800V/min
    Ground Resistance 25A<80 milliohm
    Cooling Method Natural or air cooling
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage about 6%
    Total Losses 0.1
    Efficiency 80%~99%
    Operating Temperature -25℃~40℃ (40℃, 93% RH, 56 days)
    Storage Temperature -25℃~100℃ (40℃, 93% RH, 56 days)
    Certificate CE, ISO
    Warranty 12 months
    Size Overall size: 132*135*140mm, Hold distance for installation: 100*105mm, Installation hold: 12*7mm
    Weight 10kg

    Schematic diagram illustration

    Control transformer schematic diagram illustration

     Control transformer dimension

    Control transformer dimension

    Overall size (mm) Hole distance for installation (mm) Installation hole
    (mm) K x J
    B E D A C
    132 135 140 100 105 12 x 7

    Tips: ATO 500VA-10kVA control transformers working environment

    1. Ambient air temperature: -5℃~+40℃, the highest monthly mean temperature should not exceed +30℃.
    2. Altitude for installing place should not exceed 1000m.
    3. When the ambient air temperature is +40℃, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25℃, and condensation on the product surface caused by temperature change should be taken into consideration.
