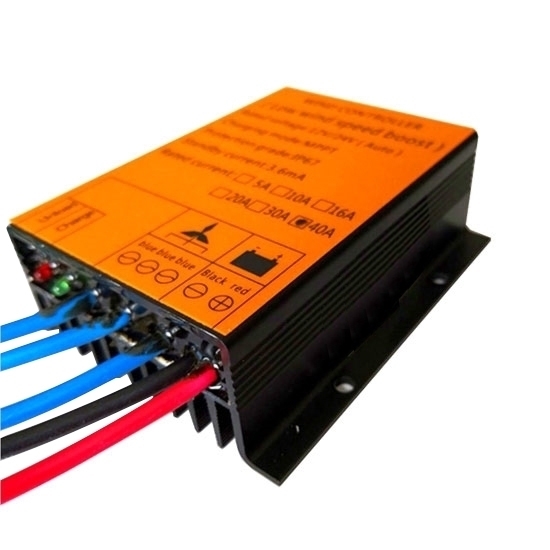

    600W Wind Turbine MPPT Charge Controller, 12V/24V

    5 out of 5 based on 2 reviews | Write a review
    $104.61
    Wind turbine mppt charge controller for wind power system, 12V/24V (auto), wind turbine rate power 500W, waterproof and dustproof design, IP67, Intelligent protection function, strong reliability, value for money.
    SKU: ATO-WTCMPPT-600
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy low price wind generator charge controller, mppt control, 500 watt, rated voltage can choose 12 volt or 24 volt, diode display, save money by selling directly to manufacturers.

    Note:

    The controller needs to be selected according to the power of the wind turbine and the battery voltage.

    Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

    Specification:

    Model ATO-WTCMPPT-600
    Rated Voltage 12V/24V (Automatic recognition voltage) ATO recommends the same generator voltage as the battery voltage
    Wind Generator Rated Power 600W
    Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
    Function MPPT Charging
    Unloading Way PWM Electrodeless and noiseless unloading
    Working Temperature -20~+60°C 35~85%RH
    Dimension 100*80*15mm
    Net Weight 0.4kg

    Features
    1. High quality technical components ensure the stability and reliability of the wind turbine controller.
    2. Waterproof and dustproof, the controller can be used in various outdoor environments.
    3. Voltage/current control charging ensures that the battery is always charged.
    4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
    5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

    Wind Power System Connection Diagram
    Wind power system control schemes

    Existing reviews of 600W Wind Turbine MPPT Charge Controller, 12V/24V
    Do you have a suitable charge controller for my application?
    I am looking for a charge controller for my wind turbine. The turbine puts out 13 volts DC and 1 amp at a 10 mph wind and all the way up to 48 volts and 10 amps at a 40 mph wind.
    Obviously, the 48 volt/10 amp would be a lot more productive if adjusted to say 12 volt and 40 amps. Do you have a charge controller that would work for this application?
    My battery bank is 12 volts.
    From: abner | Date: 01/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We recommend 600W Wind Turbine MPPT Charge Controller, SKU: ATO-WTCMPPT-600, rated voltage 12V, maximum current 40A. This charge controller can meet your needs. You can tell us what is the power of your wind turbine in W, in order to give you the correct advice, thank you for your understanding.
    Great choice
    My solar panel is often exposed to bad weather. I believe the MPPT wind turbine charge controller is my best choice. I did not hesitate to buy a 12V MPPT controller. It is really great and can adjust the temperature and compensate for the voltage change.
    From: Jim | Date: 16/02/2020
    Was this review helpful? Yes No (0/0)
