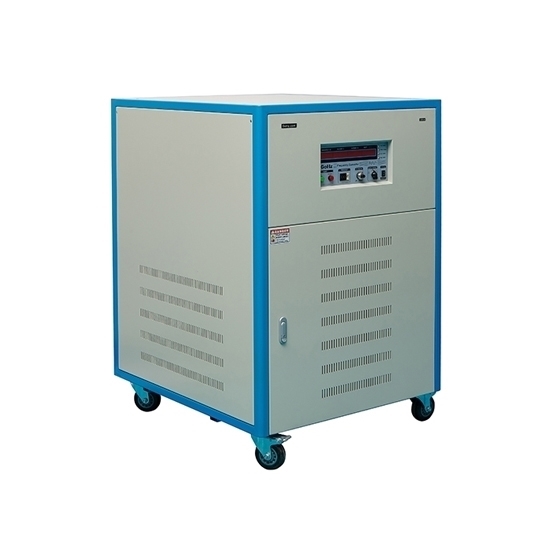

60kVA 3-Phase 220v 60Hz/380v 50Hz Frequency Converter

5 out of 5 based on 7 reviews | Write a review

$17,904.31

60 kVA three phase 220V to 400V frequency converter, also change 415V 380V to 208V 240V in one step, output 50Hz / 60Hz up to 400Hz adjustable, provide both voltage and frequency conversion in the same unit.

Input Voltage (Three Phase) *

Wiring Type *

Wye (L1, L2, L3 + N, G)
Delta (L1, L2, L3 +G)

Output Frequency *

50Hz/60Hz
400Hz [+$499.00]

SKU: HZ-50-3360

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

60kVA 3 Phase pure sine wave AC power supply, 50/60Hz 208V, 220V, 380V, 400V, 415V, 460V, 480V input, adjustable voltage (0V-520V) and frequency (40Hz-400Hz) output.

Specification:

Model	HZ-50-3360
Capacity	60 kVA
Dimension	9008001200 mm
Weight	480 kg
Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 166.4A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 83.2A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

How to Test a 9V Transformer Power Supply in a Frequency Converter?

This video shows you how to use a multimeter to test the IGBT in a frequency converter.

How to Use a Multimeter to Test the IGBT in a Frequency Converter?

This video shows you how to use a multimeter to test the IGBT in a frequency converter.

How to Check the Fuse of a Frequency Converter?

In this video, the steps on how to check the fuse of a frequency converter using a multimeter are shown.

Cabinet Frequency Converter Wiring and Testing

This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter. ATO provides a wide range of high quality single and three phase frequency converter available in rack-mounting and cabinet styles. Rated capacity ranges from 500VA/1kVA/2kVA to 200kVA. In addition to the typical frequency conversion between 50Hz and 60Hz, our converters also provide the maximum output frquency of 400Hz, tailored to various industrial application requirements.
