    7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output

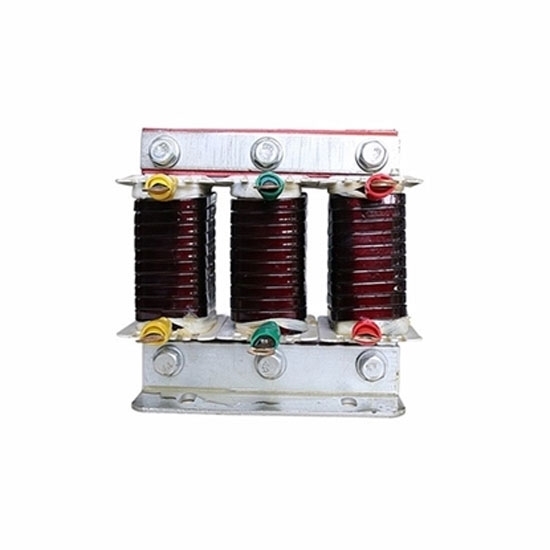

    Picture of 7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output
    Picture of 7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output
    Picture of 7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output

    7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 1 reviews | Write a review
    $299.36
    3 phase output line reactor voltage 480V, line reactor for VFD, 7.5 hp, rated current with 15 Amps, work frequency use in 50/60Hz. The material is divided into copper and aluminum, low cost, high quality and direct sales by manufacturers.
    SKU: ATO-OLR-5d5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Affordable price 7.5 hp 3-phase AC reactor provides 220V, 380V, 400V, 410V, 440V, 460V or 480V, offering material with copper and aluminum, rated current with 15 Amps. Attractive and reasonable price and factory direct sale.

    3-Phase Line Reactor Specifications

    Basic Model ATO-OCR-0015-0M47-0.4SC
    Recommended VFD Model GK3000-4T0055G (7.5 hp three phase VFD)
    Phase 3 Phase
    Power 7.5 hp (5.5 kW)
    Weight 3 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 15 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.94 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    110 90 95 70 130 6×11

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram



    Existing reviews of 7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output
    7.5 hp output line reactor solved my problem very well
    This 5.5kW output line reactor is well made, it is all copper. I purchased 240V ac output voltage and didn't know how to connect the wire after receiving. I asked ATO.com at once, they replied very quickly.
    From: Garcia | Date: 01/11/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 7.5 hp (5.5 kW) AC Line Reactor, 3 Phase Output
    • Only registered users can write reviews
    • Bad
    • Excellent
