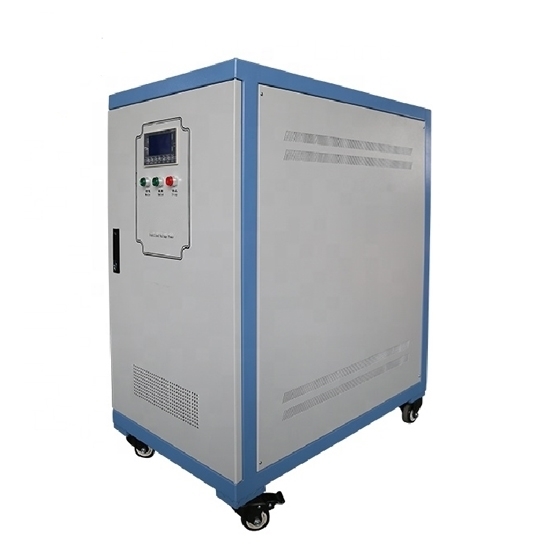

80 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

5 out of 5 based on 2 reviews | Write a review
$9,316.29
Three phase full automatic compensation industrial AC voltage stabilizer has 80kVA capacity, 3 phase 4-line with 175V-265V (phase voltage) / 304V-456V (line voltage) input voltage range, the default output is 3 phase 380V, and other voltages are customizable. ±15% tolerance of input range for output voltage above 380V and ±20% of that below 380V.
*
*
*
SKU: ATO-AVS-3P80K
30-day Returns
Delivery date: 10-20 days

80 kVA Voltage Stabilizer Features

  • Input: Three phase and four-line system, 175V-265V (phase voltage), 304V-456V (line voltage)
  • Output: Three phase 380V, other voltages can be customized
  • High technology with computer programming control
  • Comes with a sleek, compact, and elegant design
  • Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection
  • High efficiency: More than 95%

80 kVA 3-phase Industrial AC Automatic Voltage Stabilizer is applied when the power network voltage fluctuates or the load current varies, it automatically regulates the output voltage to ensure the normal function of the varied electric equipment.

It has the advantages of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for different kinds of loads, bearing instantaneous overload, and working continually for a long time. It is provided with protection against over voltage, over current, phase failure, and protection for phase sequence.

80 kVA Voltage Stabilizer Specifications

Model Number ATO-SBW/ZBW-80K
Capacity 80 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase 3 Phase 4-line
Input Voltage Range ±15% tolerance for all standard output voltages above 380V.
±20% tolerance for required 380V output and all standard voltages below.
Output Voltage 3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy ±2~4%/ ±1% (Optional)
* In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency 50Hz/60Hz
Current Type AC
Efficiency ≥95%
Response Time ≤1.5S
Ambient Temperature -15°C~+40°C
Cooling Method Air-cooled
Insulation Resistance ≥5MΩ
Electrical Intensity Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity Overload current (%) Duration (min)
20 ≤60
40 ≤15
60 ≤5
Waveform Distortion Non-lack fidelity waveform
Protection Over-voltage, over-current, feed phases
Protection Grade IP 24
Warranty 24 months
Certificate ISO9001:2008, CE
Weight 395 Kg
Package Size 800x620x1350 mm

3 Phase Voltage Stabilizer Schematic Diagram

three phase voltage stabilizer schematic diagram

Industrial Voltage Stabilizer Inner Detail

3 phase voltage stabilizer details

8 maintenance tips of three phase voltage stabilizer

  1. Do not operate under overload, and try to stagger the peak load.
  2. Clean up the dust and disconnect the power supply of the power supply before maintenance to ensure safety.
  3. Whether the installed model meets the environmental requirements, if not, please improve.
  4. Carefully clean all parts, especially the carbon brush, contact the exposed part of the coil, and remove the dirt.
  5. Under the installation environment of high-precision voltage stabilizer, ventilation shall be ensured, and the ambient temperature and body temperature shall be normal.
  6. Before the seasonal conversion, the transformer and high-precision voltage stabilizer shall be thoroughly maintained to remove potential safety hazards.
  7. Replace the worn or damaged carbon brush in time, and repair or replace the faulty or damaged components in time.
  8. Check whether the internal parts and wire ends of the high-precision voltage stabilizer are loose. If there is a loose connection or poor contact, handle it in time.
Existing reviews of 80 kVA 3 phase Industrial AC Automatic Voltage Stabilizer
Load capacity of voltage stabilizer
Hi. I'm looking at the ATOSVC-15kVA. Please explain the reason behind "The power capacity of voltage stabilizer needs to be 1.5~2 times greater than the load power". Also, what type of AVR is this? Eg Is it servo motor controlled with sliding contact?
From: Angela | Date: 14/09/2021
Was this review helpful? Yes No (0/0)
ATO Responded
Let me check. Yes, usually the input power supply capacity should be 1.5 times the voltage stabilizer capacity, which depends on the load capacity you are using.
Overload capacity of 3 phase automatic voltage stabilizer
What is the overloading capabilities of your 3 phase automatic voltage stabilizer?
From: Almonte | Date: 26/05/2021
Was this review helpful? Yes No (0/0)
ATO Responded
Overloading capabilities will be as following: 20% overloading for less than 60 minutes.
