Conductivity Sensor

ATO provides a comprehensive range of industrial conductivity sensors designed for precision liquid analysis. Whether you are monitoring ultra-pure water in pharmaceutical processes or managing wastewater treatment, our sensors offer reliability with various cell constants (K=0.01, 0.1, 1.0, 10.0). Features include high-temperature resistance, integrated Automatic Temperature Compensation (ATC), and compatibility with 4-20mA or RS485 Modbus protocols.

Conductivity Sensor Selection Guide

Selection Tip (Decision Logic): As a rule of thumb, use a lower cell constant (K) for low-ion liquids (e.g., ultrapure water, K=0.01 or 0.1) to ensure high sensitivity, and a higher cell constant for ion-rich liquids (e.g., seawater or wastewater, K=10.0) to prevent electrode polarization and signal saturation.

What is a conductivity sensor?

A Conductivity Sensor is a high-precision analytical transducer used to measure a liquid's ability to conduct an electrical current. This measurement directly correlates to the concentration of dissolved ions (salts, minerals, or acids) in the solution. In industrial automation, two core technologies are used to translate these physical states into digital data:

• Contacting Sensors: Best for Low Conductivity (<2000μS/cm)
  Using metal electrodes in direct contact with the fluid, these are the "Gold Standard" for high-purity water applications (like RO systems). They offer extreme sensitivity required to detect trace impurities but are susceptible to fouling in dirty liquids.
• 4-Electrode Sensors: Best for Mid-to-High Conductivity with High Precision. These sensors provide a hybrid solution by using an additional pair of electrodes to cancel out polarization errors and cable resistance. They are ideal for fluctuating industrial wastewater where both accuracy and anti-fouling are needed.
• Inductive (Toroidal) Sensors: Best for High Conductivity (>2000μS/cm) and Corrosive Media.
  Utilizing a non-contact magnetic coil design, these are the "Heavy-Duty" choice for aggressive chemicals, brine, and wastewater. They are immune to electrode corrosion, coating, or "poisoning," ensuring long-term stability in high-scaling environments.

Key Technical Features for Conductivity Sensors

• Digital Communication (Industry 4.0): Beyond 4-20mA signals, sensors supporting RS485 Modbus-RTU enable multi-parameter transmission (EC, TDS, and Temperature) over long distances without signal degradation.
• Automatic Temperature Compensation (ATC): Conductivity typically fluctuates by 2-3% per °C. Reliable probes integrate high-precision sensors (PT100/PT1000) to normalize readings to a standard 25°C.
• Material Resilience: For high-temperature sterilization (up to 130°C), specialized sensors with reinforced seals are required to prevent ingress and measurement drift.

Conductivity Sensor Applications

Selecting the right sensor architecture depends on your specific liquid environment. Here is how to match the technology to your application:

Tips for Installing Conductivity Sensor

For reliable data and a longer sensor lifespan, follow these three essential engineering rules:

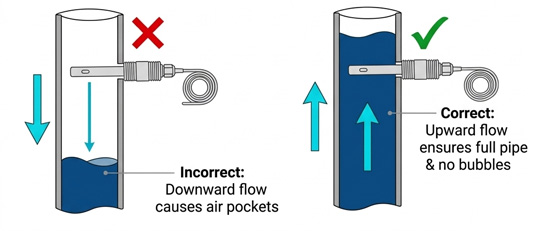

Rule 1: Always Upward Flow

Install the sensor in a vertical pipe section with upward flow. This ensures the pipe is always full and flushes out air bubbles that cause erratic readings.

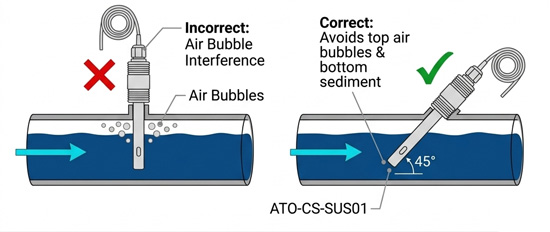

Rule 2: The 45° Mounting Rule.

On horizontal pipes, mount the probe at a 45° angle. This prevents air bubbles from insulating the electrodes at the top and keeps sediment from burying the sensor at the bottom.

Rule 3: Avoid the 'Wall Effect' (2cm Minimum Clearance)

Maintain at least 2cm of clearance between the sensor and the pipe wall to prevent the pipe material from interfering with the electrical field. For Inductive sensors, ensure the probe is centered; proximity to metal walls can distort the magnetic field, leading to a 3-5% measurement error.

Frequently Asked Questions

Q: When is an Inductive Conductivity Sensor better than a contacting model?

A: Choose inductive sensors for "dirty," scaling, or highly corrosive liquids. Their non-contact design prevents the electrode "poisoning" and degradation common in harsh chemical processes.

Q: Can ATO Conductivity Sensors measure TDS and Salinity directly?

A: Yes. ATO digital conductivity sensors are designed with built-in conversion algorithms. These conductivity sensors support real-time output of TDS (mg/L) and Salinity (PSU/PPT) via RS485 Modbus-RTU, eliminating the need for manual calculation or external conversion tables.

Q: Can pipe materials interfere with Inductive Sensor accuracy?

A: Yes. Since inductive technology uses magnetic fields, metal pipes can cause interference. Ensure at least 2cm of clearance between the probe and the wall for precise readings.

Q: How often should I calibrate my Inductive Conductivity Sensor?

A: For chemical or wastewater use, we recommend a monthly check. While inductive models resist fouling better than contacting probes, regular verification ensures accuracy in aggressive media.
