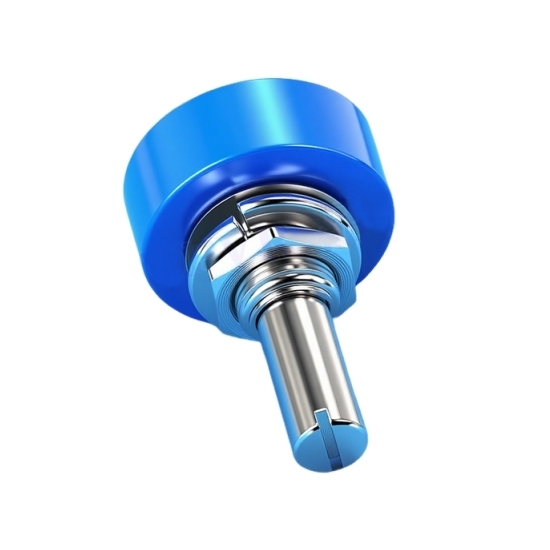

360 Degree Continuous Rotation Potentiometer, 1k/2k/5k/10k Ohm

360 degree continuous rotation potentiometer delivers various resistance, ±10% tolerance, low rotational noise <100mV and excellent insulation performance. Built with corrosion-resistant housing and dust-resistant wiring design, it ensures reliable operation in harsh environments. Ideal for smart devices, instruments and electronic systems.

Specification

Features

1. 360° Unlimited Rotation Design: The 360 degree potentiometer adopts a continuous rotation potentiometer structure with unlimited 360° rotation and no mechanical stop, enabling continuous position control and smooth adjustment for precision control applications.
2. 1,000,000 Cycles Long Service Life: Offering up to 1 million rotation cycles, the rotary potentiometer delivers exceptional durability with stable output performance, helping reduce maintenance frequency and replacement costs.
3. Multiple Resistance Options Available: Available in 1kΩ, 2kΩ, 5kΩ, and 10kΩ resistance values, this continuous rotation potentiometer offers flexible selection for different circuit designs, control systems, and potentiometer applications.
4. Stable and Accurate Signal Output: This potentiometer uses silver-plated copper contacts to improve conductivity and contact sensitivity. With rotational noise below 100mV, it ensures reliable signal adjustment and stable control performance.
5. Durable Industrial Structure: A high-strength corrosion-resistant housing protects internal components from environmental impact, allowing the precision potentiometer to maintain dependable operation in industrial environments.
6. Reliable Electrical Protection Performance: This continuous rotation potentiometer offers ≥100MΩ insulation resistance and AC 300V withstand voltage, combined with a dust-resistant wiring port to improve electrical safety, reliability, and service life.

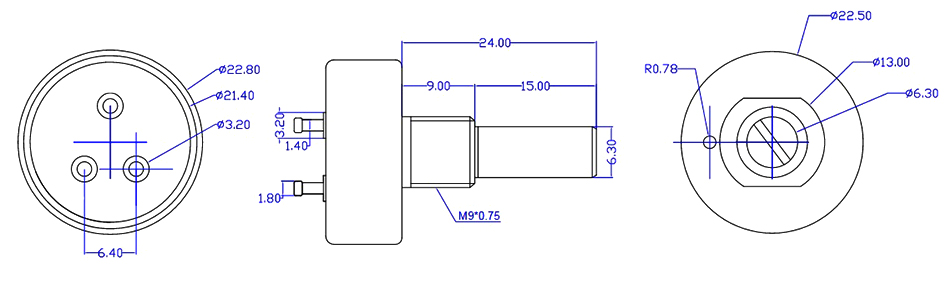

Dimension (unit: mm)

Tips: What is a continuous rotation potentiometer?

A continuous rotation potentiometer is a type of rotary potentiometer that allows the shaft to rotate continuously without mechanical stops. Unlike standard potentiometers with limited rotation angles, it provides unlimited 360° adjustment for continuous signal control.
It works by changing the position of the internal wiper on the resistive element during rotation, which adjusts the output voltage or resistance. A 360 degree potentiometer is commonly used in industrial automation, robotics, control systems, and precision equipment requiring frequent and smooth rotary adjustment.
