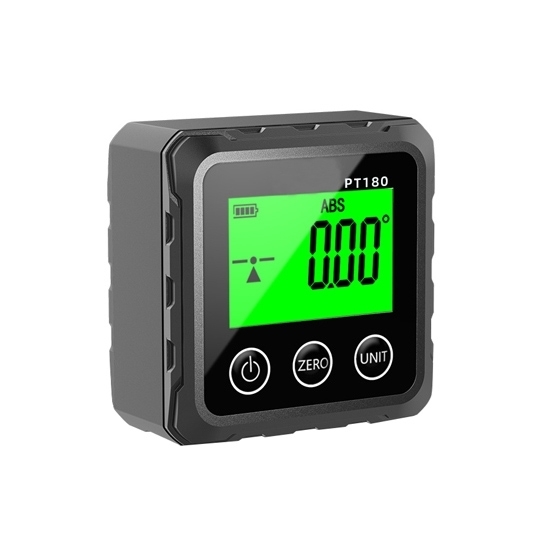

    Magnetic Inclinometer, Digital Angle Gauge, 4x90°

    5 out of 5 based on 1 reviews | Write a review
    $82.83
    Precision magnetic inclinometer is a digital angle gauge that can perform absolute or relative measurements within a 4x90° range. Measurement accuracy ±0.1° or ±0.2°, high-definition display, automatic screen flip support, ABS housing. Built-in strong magnet at the bottom for easy attachment to iron objects.
    SKU: ATO-DMI-PT180
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-accuracy digital angle gauge for sale online. This slope inclinometer can measure angles within a range of 4x90° absolutely and is relatively, suitable for automotive maintenance, wood processing, and construction.

    Specifications

    Model ATO-PT180
    Measurement Accuracy 0° and 90°: ±0.1°; Others: ±0.2°
    Resolution 0.1°
    Range 4x90°
    Power Supply 2 x AAA Batteries
    Operating Temperature 32℉ to 122F (0℃ to 50℃)
    Operating Humidity ≤85%
    Measurement Method Zero Point Measurement Based on Horizontal Plane


    Dimension (Unit: mm)

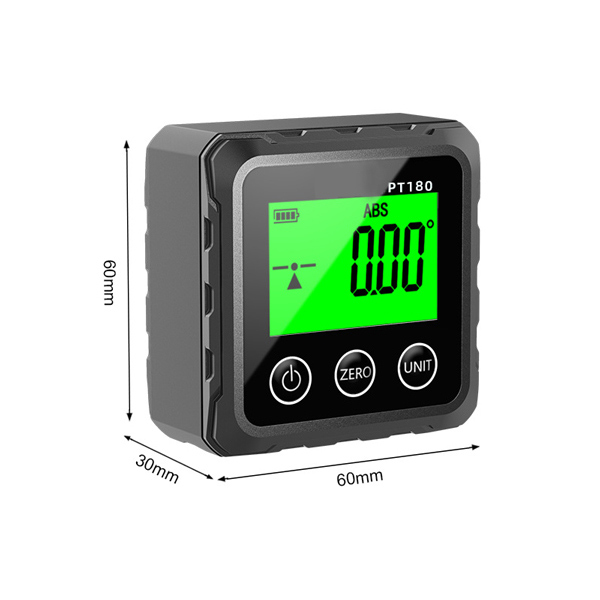

    Digital angle gauge dimension

    Details

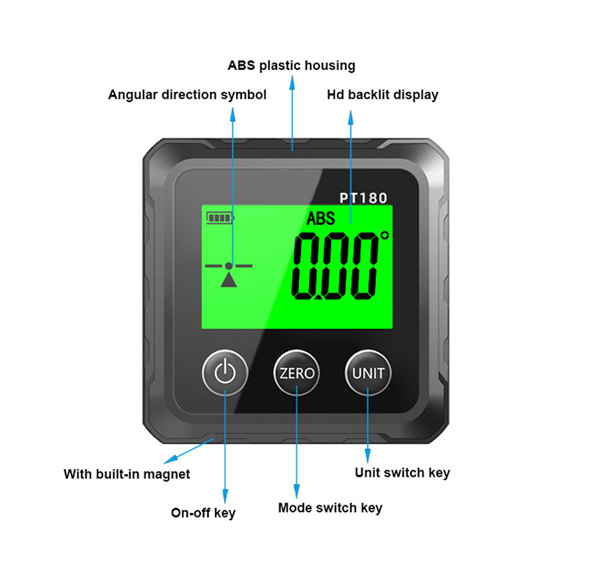

    Digital angle gauge details
    Applications

    Digital angle gauge applications

    Tips: What can a digital angle gauge do?

    A digital angle gauge, also known as an electronic level or inclinometer, is a versatile tool used to measure angles with high precision. Here are some of its primary functions and features:

    1. Angle Measurement: It accurately measures angles in degrees or percent slope, making it ideal for tasks like aligning machinery, installing cabinets, or ensuring surfaces are level.

    2. Zeroing Function: Users can zero the gauge on any surface, allowing for relative angle measurements. This is particularly useful for measuring the pitch of roofs or slopes of surfaces.

    3. Hold Feature: Many models have a hold function that retains the displayed measurement, making it easier to document or compare readings without needing to look at the display continuously.

    4. Backlit Display: A backlit screen enhances visibility in low-light conditions, allowing users to read measurements easily.

    5. Versatile Applications: Digital angle gauges are commonly used in carpentry, metalworking, construction, and automotive work, providing accurate angles for cutting, leveling, and installation tasks.

    6. Portability: Most digital angle gauges are compact and lightweight, making them easy to carry and store.

    Overall, a digital angle gauge enhances precision and efficiency in various applications, making it an essential tool for professionals and DIY enthusiasts alike.
