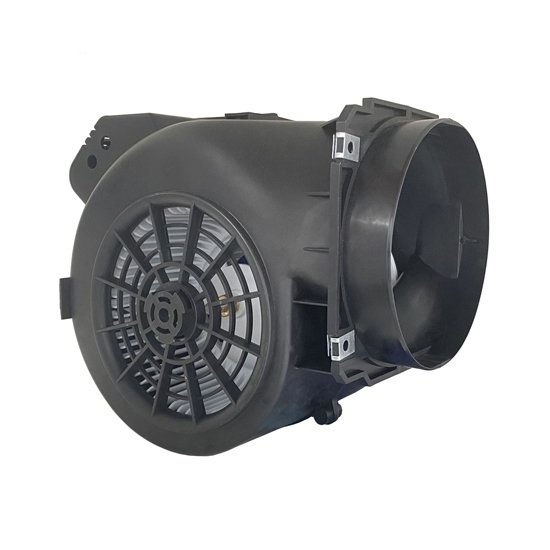

EC Double Inlet Centrifugal Fan, 146mm, 230V

5 out of 5 based on 1 reviews | Write a review

$465.59

Purchase EC (electronically commutated) double inlet centrifugal fan at factory price. This low noise dual inlet centrifugal fan comes with 146mm impeller and 115W EC motor, working at 230V AC 50Hz/60Hz, 2000rpm speed for applications requiring consistent airflow and energy savings, such as HVAC systems, data centers, and industrial ventilation.

SKU: ATO-DICF-EC146

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

146mm EC (electronically commutated) double inlet centrifugal fan is a high-efficiency fan designed for ventilation and air conditioning systems. It features an electronically commutated motor that combines the benefits of AC and DC motors, ensuring optimal energy efficiency and precise speed control.

Specification

Model	ATO-DL-F146B-EC-V2
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	115W
Motor Power	115W
Max. Current	0.85A
Noise	66dB(A)
Speed	2000rpm
Impeller Diameter	146mm
Air Volume	730m³/h (430 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	PA6+GF
Turbo Material	PA6+GF
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

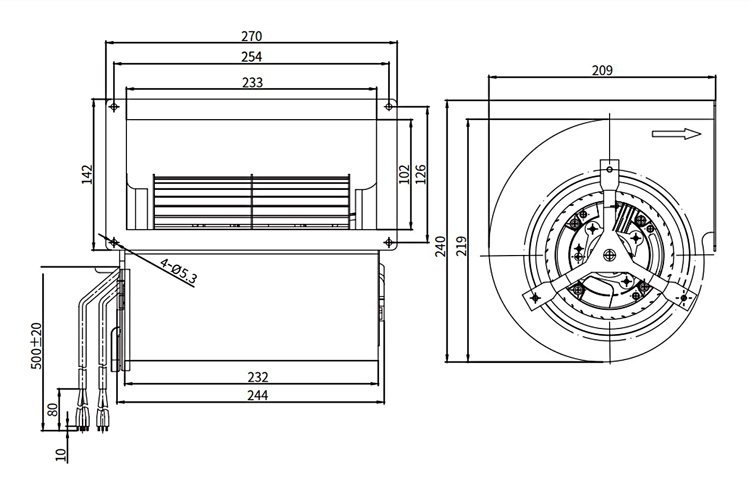

Dimension (Unit: mm)

EC double inlet centrifugal fan dimension

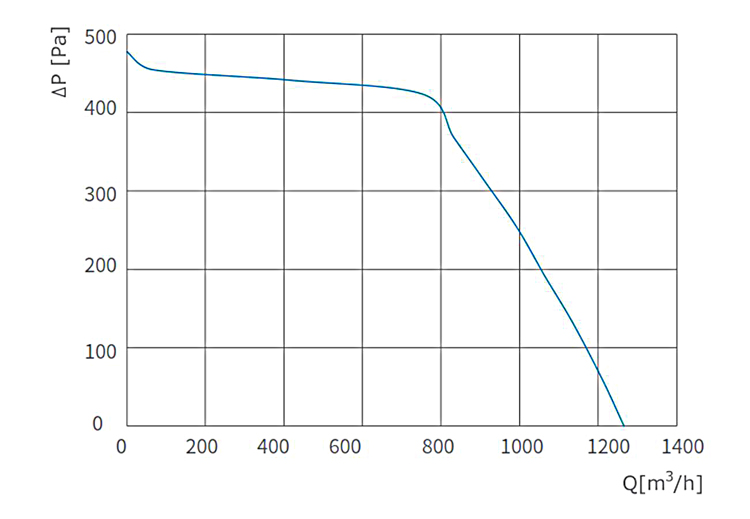

Performance Curve

EC double inlet centrifugal fan performance curve

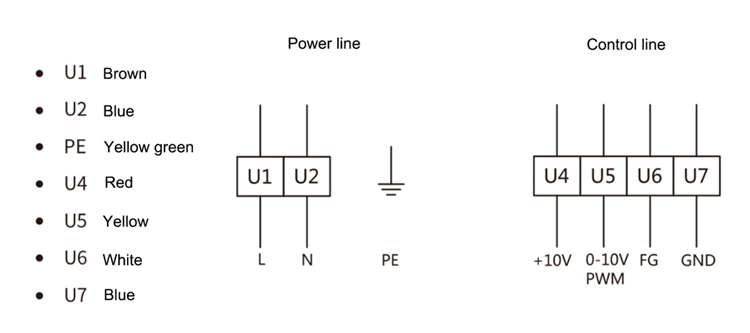

Wiring

EC double inlet centrifugal fan wiring

Tips: What is a double inlet centrifugal fan?

A double inlet centrifugal fan is a type of fan that uses two inlets to draw air into the fan casing. This design improves airflow efficiency and increases the fan's capacity compared to single inlet models. In a double inlet centrifugal fan, air enters the fan from both sides of the impeller, which is located centrally within the casing. As the impeller spins, it accelerates the air outward and directs it through a volute or diffuser, which converts the kinetic energy into static pressure and directs the airflow out of the fan outlet. This configuration provides higher airflow rates and more balanced air distribution, making it suitable for applications requiring substantial air movement, such as in HVAC systems, industrial ventilation, and large-scale cooling systems. The double inlet design helps reduce noise and improve overall performance in demanding environments.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Existing reviews of EC Double Inlet Centrifugal Fan, 146mm, 230V

High-quality and low-noise fan

I’ve been using this 146mm EC double inlet centrifugal fan for an HVAC project, and it has performed exceptionally well. The airflow is steady and strong thanks to the 115W EC motor, and the fan runs much quieter than I expected—even at around 2000 rpm. Installation was simple, and it works flawlessly on both 50Hz and 60Hz mains voltage. What really stands out is the energy efficiency; the EC motor keeps power consumption low while still delivering reliable performance. After continuous operation in a ventilation setup, the fan has stayed stable with no vibration or overheating. Overall, it’s a high-quality, low-noise fan that’s perfect for HVAC systems and other applications needing consistent, efficient airflow.
