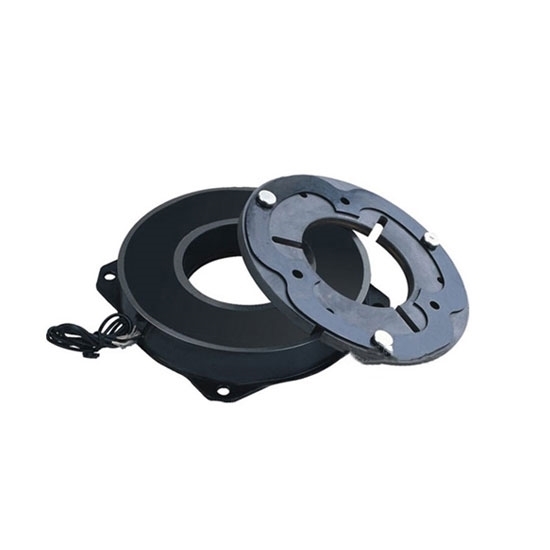

Electromagnetic Brake, DC 24V, 50Nm/400Nm

5 out of 5 based on 2 reviews | Write a review

$209.23

Cheap price electromagnetic brake DC 24V, manufacturer direct sales, static torque 6Nm/15Nm/50Nm/100Nm/200Nm/400Nm is optional, max speed of 1800rpm, efficient cooling scattered wet, fast response.

Static Torque *

SKU: ATO-EB-FBI

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High torque electromagnetic disc brake for sale, static torque 6Nm, 15Nm, 50Nm, 200Nm to 400Nm is available, widely used in cranes, machine tools, testing machines, milling machines, etc.

Specification:

Model	ATO-FBI-006	ATO-FBI-015	ATO-FBI-025	ATO-FBI-050	ATO-FBI-100	ATO-FBI-200	ATO-FBI-400
Static Torque[kgf-m](N-m)	0.6 (6)	1.5 (15)	2.5 (25)	5.0 (50)	10 (100)	20 (200)	40 (400)
Dynamic Torque[kgf-m](N-m)	0.5 (5)	1.0 (10)	2.0 (20)	4.0 (40)	8 (80)	16 (160)	32 (320)
Rated Voltage	DC 24V
Power (W) at DC 24V, 20℃, no load	11	15	20	25	35	45	60
Weight (kg)	0.28	0.5	0.91	1.68	3.15	5.9	10.5
Maximum Speed (r/min)	1800
Document	Download Electromagnetic Brake Installation Manual

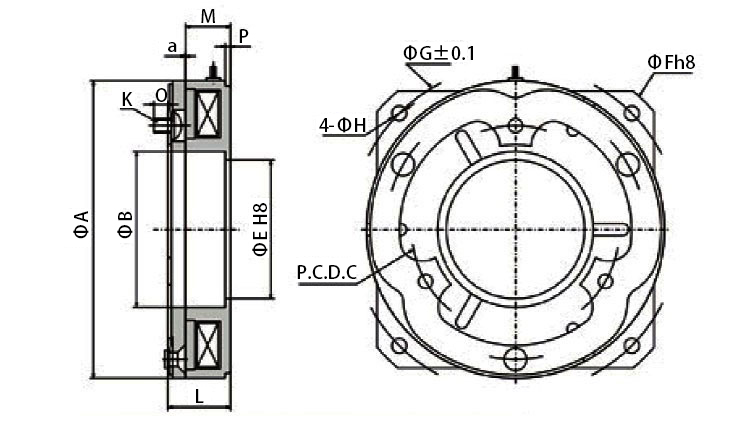

Electromagnetic Brake Dimension (Unit=mm)

Model	ATO-FBI-006	ATO-FBI-015	ATO-FBI-025	ATO-FBI-050	ATO-FBI-100	ATO-FBI-200	ATO-FBI-400
A	70	88	110	137	172	217	272
B	28	32	42	50	65	80	95
D	12	15	20	25	30	40	50
E (Hole Dimension)	35	45	52	65	80	100	120
F	90	110	135	165	210	265	390
G	80	98	122	150	190	240	300
H	4.5	5.5	6.5	6.5	8.5	11	13.5
L	39.3	47.4	55.8	65	79.2	96.5	116.7
M	18	20	22	24	26	30	34
N	24.3	27.4	30.8	35	39.2	46.5	49.7
O	15	20	25	30	40	50	60
P	1.6	2	2	2.5	3	3.2	3.7
S	6	8	8	10	12	15	18
m	M3	M4	M5	M6	M8	M10	M12
a	0.2	0.2	0.2	0.3	0.3	0.5	0.5
b	4	5	5	07	7	10	10
t	13.8	17.3	22.3	28.3	33.3	43.3	53.3

Electromagnetic brake applications

Electromagnetic brake applications

Tips: Is it necessary to adjust the gap for the electromagnetic brake?

The adjustment of the electromagnetic brake gap is particularly important, because the friction plate will wear after the electromagnetic brake is operated for a long time, resulting in an increase in the gap. In severe cases, the armature is not properly connected, the brake cannot be released normally, and the pull-in voltage of the armature coil rises and remains. The force and braking force are reduced and even the friction plates and other electrical components are burnt.

Existing reviews of Electromagnetic Brake, DC 24V, 50Nm/400Nm

Looking for electromagnetic brakes

I am looking for a specific type of electromagnetic brake for my own wind turbine. I want to be able to hold (an object) in place during windy weather. Any recommendations?

From: Pinas | Date: 22/04/2025

Was this review helpful? Yes No (0/0)

ATO Responded

For a magnetic brake, do you want it to brake when the power is off or when the power is on? Can you provide the size, weight, and other information about your wind turbine so we can recommend a suitable model?

Manipulator brakes

We need a pair of brakes with 15 Nm torque. I am wondering if the brakes can fit the Nema 34 flange of the stepper motors?

From: Amir | Date: 18/09/2020

Was this review helpful? Yes No (0/0)

ATO Responded

The flange diameter of ATO-FBI-015 can be matched with the flange of the Name 34 stepper motor, but please pay attention to whether the diameter of the brake is your requirement (φB & φE) when selecting brake.

Load more reviews...

Write your review for Electromagnetic Brake, DC 24V, 50Nm/400Nm
