    How to Choose a Diaphragm Valve?

    Diaphragm valves are a key device widely used for fluid control, and their unique construction and function make them suitable for a wide range of industrial applications. When selecting a diaphragm valve, several key factors need to be considered to ensure that the valve selected meets the specific process requirements, media characteristics, and operating environment. The following is a comprehensive buyer's guide from theĀ ATO shop to help users make the right choice of diaphragm valve.

    Selection Approach

    • Understanding Process Requirements: Firstly, understanding the specific needs of the process is the first step in selecting a diaphragm valve. This includes understanding the nature of the fluid, its temperature and pressure requirements, as well as the required flow control range. A clear understanding of these parameters helps determine the type of diaphragm valve best suited to the process.
    • Consider Fluid Control Requirements: Fluid control is one of the core functions of a diaphragm valve. Determine parameters such as the required flow range, flow rate, and viscosity of the fluid to ensure that the diaphragm valve selected will meet the precise fluid control requirements of the process.
    • Select the Appropriate Material: The material of the diaphragm valve is directly related to its service life and performance in different environments. According to the corrosive nature of the medium choose the appropriate material, such as stainless steel, plastic, rubber, and so on. For some special working conditions, special alloys or linings may be required.

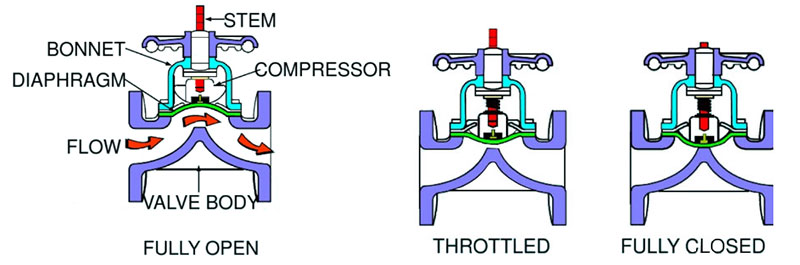

    Diaphragm valve working status

    Select Type

    Manual Diaphragm Valve: The manual diaphragm valve is one of the most basic and common types. Its operation mainly relies on manual hand control, by rotating the handle or bolt, to realize the opening and closing of the valve. This type of diaphragm valve is suitable for some simple fluid control scenarios, especially in small flow, small diameter applications that are more common. The advantage of a manual diaphragm valve is simple structure, and easy maintenance, but not for large-scale, high automation requirements of industrial production.

    Pneumatic Diaphragm Valve: The pneumatic diaphragm valve realizes the automatic control of the valve through a pneumatic device. It uses pneumatic drive devices, such as pneumatic actuators, to realize the opening and closing of the valve through the action of compressed air. Pneumatic diaphragm valves are suitable for industrial production that requires a higher level of automation, characterized by fast response time and high accuracy. This type of diaphragm valve is widely used in chemical and pharmaceutical industries, especially in scenarios that require frequent operation or remote control.

    Electric Diaphragm Valve: Electric diaphragm valve realizes the opening and closing of the valve through an electric device. It adopts an electric actuator to realize the automatic control of the valve through the drive of an electric motor. Motorized diaphragm valves are suitable for scenarios that require higher precision and more remote control, and are usually equipped with advanced control systems. This type of diaphragm valve is widely used in large-scale industrial production, especially in processes that require precision fluid control, such as food processing, water treatment, and power generation.

    Each of the three types of diaphragm valves has its characteristics, and the choice depends on the specific application scenario and requirements. Selection of the appropriate type should be based on specific process needs, level of automation, and budget. Manual diaphragm valves are suitable for simple operations, pneumatic diaphragm valves are suitable for scenarios that require automation but do not involve high-precision control, and motorized diaphragm valves are suitable for industrial production that requires high precision and remote control. When selecting a diaphragm valve, comprehensive consideration needs to be given to actual needs and process requirements to ensure that the valve selected optimally meets the needs of production and fluid control.

    Selection Factors

    1. Temperature and Pressure Range: Ensure that the selected diaphragm valve can be adapted to the actual temperature and pressure range to avoid valve failure or damage due to exceeding the specified conditions. Get a detailed understanding of the temperature and pressure requirements of the operating environment and select a valve that meets those needs.
    2. Sealing Performance: The sealing performance of the diaphragm valve is directly related to the leakage of the valve. Select valves with good sealing performance to ensure that in the closed state can effectively prevent the leakage of media to improve the safety of the system.
    3. Maintenance and Repair: Consider the maintenance and repair costs of high accuracy diaphragm valves. Some diaphragm valves have a simpler design and are easy to maintain, while others may require a more complex repair process. Choose the type of valve that is easy to maintain to reduce operating costs.
    4. Brand and Manufacturer Reputation: Choose a reputable manufacturer and brand with extensive experience. Check user testimonials, and reference cases, and understand the manufacturer's background and level of technical support. Reputable manufacturers are usually able to provide more reliable products and good after-sales service.

    Additional Suggestions

    If there are special needs for the process, discuss customization options with the manufacturer. Some manufacturers offer customized diaphragm valves to meet the needs of specific processes. Finally, choose the right diaphragm valve based on your budget. Prices can be affected by a variety of factors such as material, brand, and specifications, so choose the most appropriate product based on your budget range while ensuring quality.

    The selection of diaphragm valves requires a thorough consideration of several factors such as process requirements, mode of operation, material, fluid control needs, and so on. Through careful selection, you can ensure that the selected diaphragm valve in the actual application of the best performance, improves production efficiency, to protect the system's safety. Selecting a diaphragm valve is not only a technical decision, but also an investment in the overall production process, so it is important to choose carefully to meet long-term production needs.
