    How to Test a Mini Handheld Single Gas Detector?

    A mini handheld single gas detector is a small portable device designed to monitor and measure the concentration of a specific gas in the environment. These gas detectors are commonly used in industry, environmental protection, and health and safety to ensure that the concentration of gases in a workplace or environment is within safe limits. ATO online hop will explain in detail how to carry out the testing of a mini handheld single gas detector, including preparation, testing procedures, and data analysis.

    This is a new safety device that is worth having if you want to make sure you are protected from any potentially harmful gas leaks. This is a simple safety device that everyone should have. Designed to be lightweight and portable, the mini handheld single gas detector can be taken anywhere in the workplace, it is compact, portable, lightweight, and easy to use. ATO shop also offers more versatile models designed for other gas types, which can be viewed via the links in the description section.

    Check the Box

    Open the package and inside is our gas detector, very small and compact. It also has a calibration cap. This assembly comes with an integral tube for calibration when connected to the unit's large sampling port. A user manual and quality control card are also included. Ensure that the user is familiar with this manual before use. The mini handheld single gas detector is battery-powered and operates on 3.6V without recharging. Because of this, the user can take the gas leak detector with them wherever they go.

    Structure and Features

    • Large Built-in Air Inlet: Allows the gas detector to quickly draw in ambient air for real-time measurements.
    • Large LCD Screen: Attractive large LCD screen front and center of the mini handheld single gas detector.
    • Button Controls: The mini handheld single gas detector is very stylish and features a minimal two-button control, making it easier for users to manage the device with one hand.
    • Additional Features: Some useful additional features such as an audio alarm buzzer and visual LED flash.
    • Back Clip: A back clip on the back for the user to clip to work clothes or tool belt. Flip the clip over and there is a nice little metal hook that can be hung anywhere you like.
    • Easy To Carry: The compact round design of the mini handheld single gas detector fits very easily into the user's pocket without any hassle.

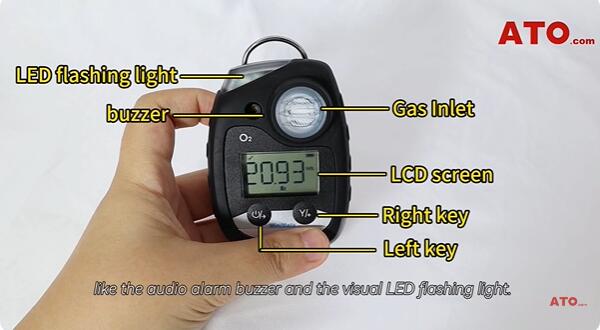

    Mini handheld single gas detector structure

    How to Start the Gas Detector

    Press and hold the power button for about 3 seconds to turn on the device, immediately after the power is on, you will see the indicator light on and hear the beeping sound.
    The startup sequence: the on-screen display is shown first, then the firmware version, measurement range, and details of the high and low alarms, TWA, and STEL are provided. The mini handheld single gas detector will perform a 60-second warm-up countdown until it starts up.

    How to Test the Gas Detector

    The mini handheld single gas detector has a fairly simple interface with a large digital display that makes it easy to read the gas concentration in the air in real-time. As an example, gas concentrations are measured as a percentage of volume from 0 to 30, while more unit options are available in the toxic and flammable gas detection model. The remaining battery power is also displayed in the upper right corner. In the upper left corner, there is an icon for whether the self-test has passed or failed. If the test fails, the icon will change to an X. This means that there is a problem with the portable gas leak detector and the user will need to contact the appropriate technician for further technical assistance.

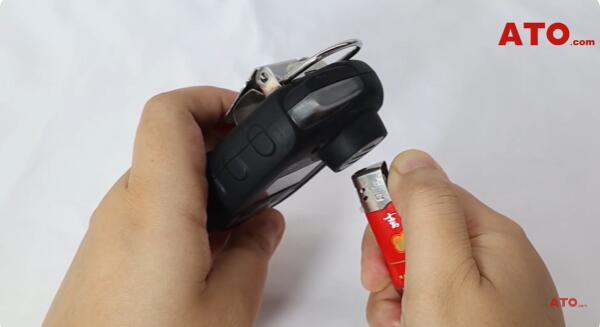

    Mini handheld single gas detector testing

    Test Steps

    The mini handheld single gas detector is a diffusion type, especially suitable for confined space testing.

    1. First, remove some butane from the lighter. It takes a few seconds for the gas to be sensed as it approaches the gas detector, as the alarm will sound when the oxygen level in the vicinity falls below the low alarm threshold.
    2. The mini handheld single gas detector will provide both visual and audible alarms, with a flashing red light at the top, while you are warned with a 95-decibel beeping warning that alerts the user to remain vigilant. While the mini handheld single gas detector is not as sensitive, perhaps because the gas leak detector is not a specialized model for detecting combustible gases, it still does a good job and works fine as an oxygen detector.
    3. As the gas source disappears, the mini handheld single gas detector will still sense the gas for some time and then begin to return to its previous level. When the mini handheld single gas detector stabilizes, the alarm turns off and the oxygen readings return to standard levels.
    4. Therefore, if there is any gas leakage problem, the user can check and easily find the fault at home or work and can take early and swift action or leave the scene immediately.
      To turn this feature off, simply press and hold the button for 5 seconds, then press 4 3 2 1 to turn it off.
    5. Given these features, the mini handheld single gas detector deserves to be a must-have device for almost everyone, whether it's a homeowner or an RV driver who needs to know immediately if there is any type of gas leak in their living or work area.

    Here is a video about testing with a mini handheld single gas tester. If you want to know more details about gas detectors, please visit, we offer different types of gas detectors such as portable gas detectors, explosion-proof gas detectors, and stationary gas detectors for detecting different gases, which can ensure the safety of the workers and the environment, increase the efficiency of the work, and is an indispensable tool in various modern industries.
