    How to Test a PoE Injector?

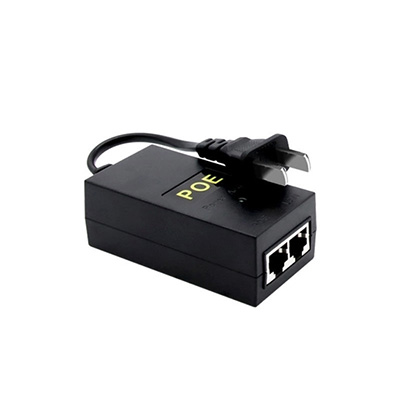

    A Poe injector refers to a device that can provide network power supply to remote-powered terminals (such as wireless APs, network cameras, etc.) through network cables. It is a common power supply device in PoE Poe injector systems. To ensure its performance, safety, and stability at work, and to provide customers with a better user experience, we need to conduct a series of tests on the PoE Poe injector. The following is the test content of the PoE Poe injector, I hope it will be helpful to you.

    PoE injector test steps

    1. PoE injector check
      Before testing the Poe injector, first check the power supply to ensure that the Poe injector is normal and the voltage is stable. Poe injectors generally need to be connected to 220V mains power, so you must ensure that the power socket is working properly and that the power cord is not damaged.PoE injector
    2. Device connection
      Connect the Poe injector to the powered device. Generally speaking, the Poe injector will provide a network cable interface, and the network cable can be plugged into the Poe injector and the powered device. Before connecting, you need to confirm that the powered device supports the PoE injector, otherwise, it may not work properly.
    3. Poe injector detection
      Check whether the Poe injector supplies power normally. You can observe whether the working indicator light of the Poe injector is on. If it is on, it means that the Poe injector is providing power to the powered device. At the same time, you can also use a multimeter to measure whether the output voltage and current of the Poe injector are normal.
    4. Functional testing
      Conduct functional tests on the PoE injector, including the power supply function, network function, etc. You can check the working status of the Poe injector, such as port status, network bandwidth, etc., through network management software or command line tools. At the same time, it is also necessary to test whether the functions of the powered equipment are normal, such as whether the IP camera can transmit video normally.
    5. Temperature test
      During the test, you need to pay attention to the operating temperature of the Poe injector. Excessive temperature may affect the working efficiency and stability of the PoE injector, and may even cause safety issues such as fire. Therefore, it is recommended to conduct the test in an environment with good ventilation and suitable temperature and observe whether the operating temperature of the PoE injector is normal during the test.
    6. Stability test
      Conduct a long-term working test on the PoE injector to check its stability. You can connect the powered device to the PoE injector and let it work continuously for some time (such as 24 hours) to observe whether the PoE injector can continue to provide a PoE injector. At the same time, it is also necessary to observe whether the PoE injector has abnormal heating, noise, and other problems during long-term operation.
    7. Security testing
      Conduct safety tests on PoE injectors, including overcurrent protection, overvoltage protection, etc. An adjustable load or a simulated fault generator can be connected to the output end of the PoE injector to simulate various abnormal conditions, such as overload, short circuit, etc. Observe whether the PoE injector can automatically cut off the power or provide alarm prompts and other safety measures. At the same time, it is also necessary to check whether the PoE injector complies with relevant safety standards and regulations.

    Necessity of testing PoE injector

    1. Ensure safety
      The security of a PoE injector is one of its most basic requirements. Through testing, you can ensure that the PoE injector voltage, current, and other parameters of the PoE injector meet the standards, and avoid overvoltage, overcurrent, and other abnormal situations, thereby protecting the safety of powered equipment and personnel.
    2. Improve stability
      The stability of the PoE injector is crucial to ensure the normal operation of the equipment. Through testing, problems that may exist during the long-term operation of the equipment, such as overheating, noise, etc., can be discovered, and repairs and improvements can be made promptly, thereby improving the stability and reliability of the equipment.
    3. Meet standard requirements
      The design and performance of PoE injectors need to comply with certain standards and specifications. Through testing, it can be ensured that the various indicators of the PoE injector meet the standard requirements and meet market access conditions and customer expectations.
