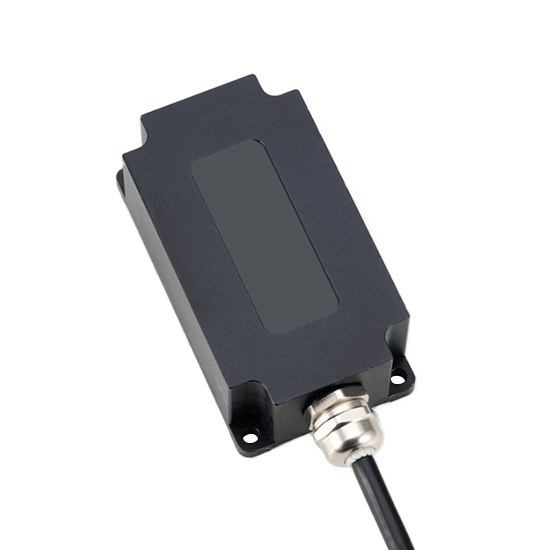

Portable Inclinometer Sensor, Dynamic/Static Mode, 3 Axis

The portable tilt sensor is a compact angle measurement solution for industrial applications, supporting static and dynamic operation across X, Y, and Z axes. It combines fast 0.01s response, 100 Hz frequency response, IP67 protection, and multiple output signal options for flexible integration into monitoring and control systems.

Specification

Feature

• Static & Dynamic Measurement: Portable inclinometer sensor supports both static and dynamic tilt measurement across different operating conditions.
• 3-Axis Measurement: Measures inclination along the X, Y, and Z axes, with ±90° 3-axis and ±180° single-axis measurement ranges.
• High Accuracy & Fast Response: The MEMS tilt sensor achieves 0.02° static accuracy, 0.1° dynamic accuracy, 100 Hz frequency response, and 0.01s response time.
• Durable Industrial Design: IP67 protection, 5500 g shock resistance, 10 grms vibration resistance, and a wide −40 to 85°C operating temperature range.
• Multiple Output Signals: The 3-axis inclinometer sensor supports CAN/CANopen, RS232, RS485, RS422 and TTL output signals for flexible system integration.

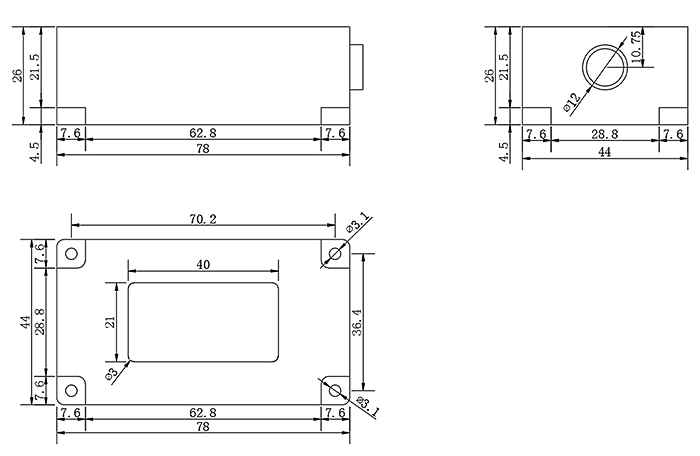

Size(unit: mm)

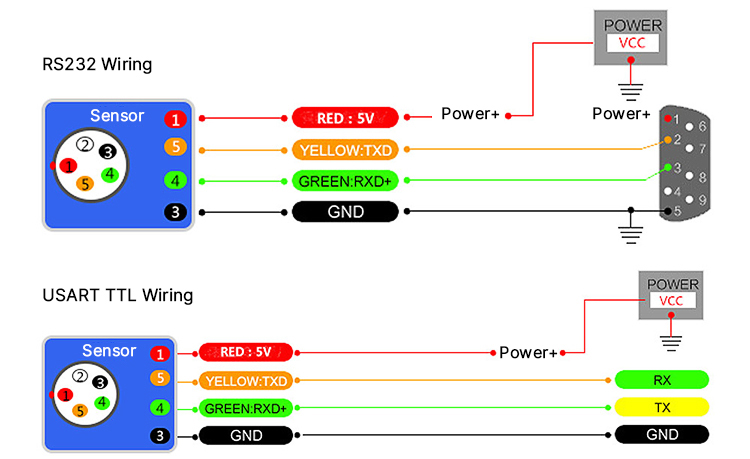

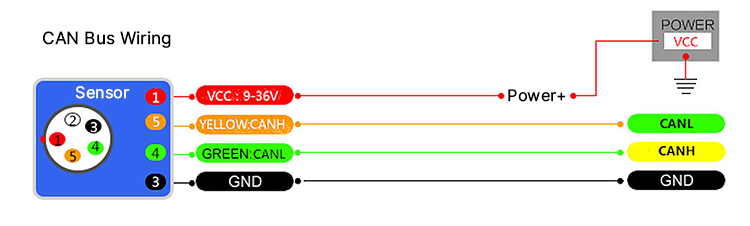

Wiring

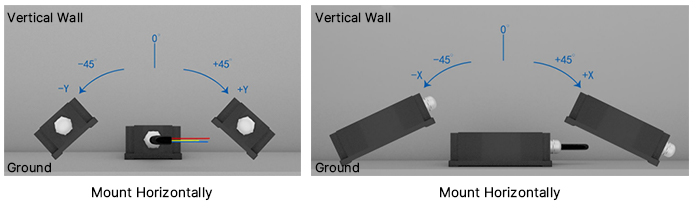

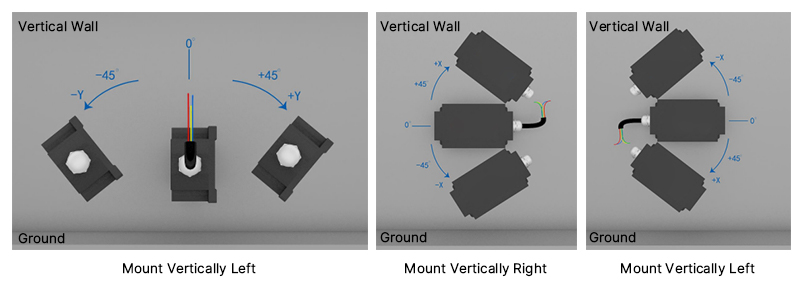

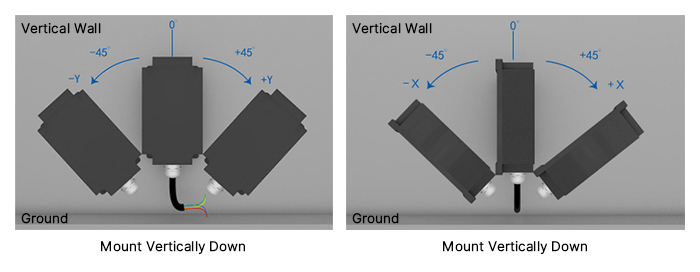

Installation

Tips: What Should I Consider When Selecting an Inclinometer Sensor for a New Application?

Check the required mounting orientation, communication interface, power supply, cable length, and environmental conditions to ensure the sensor matches the installation and system requirements. Also consider the available installation space, cable routing, controller compatibility, and expected mechanical conditions. For applications involving frequent movement or vibration, make sure the sensor's mounting structure is rigid and secure. A clear understanding of the installation environment and system interface can help avoid compatibility issues during setup and commissioning.
