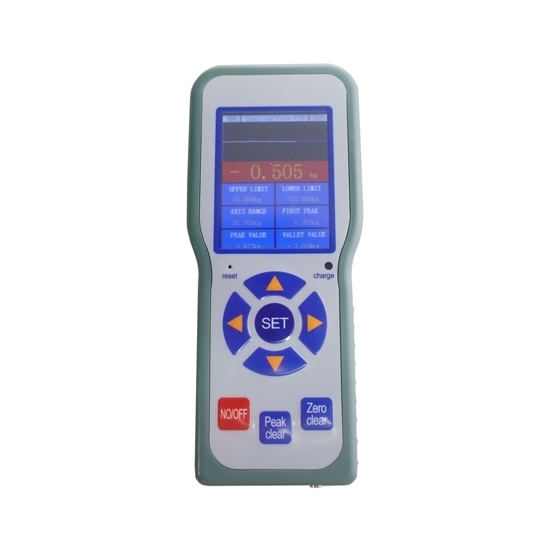

Portable Wireless Digital Panel Meter, 5 Digit

$477.21
Portable wireless digital panel meter with 5-digit display is on hot sale, supports wireless/wired sensor interface, can display kg, t, kN, N, lb and other units. Low cost and handheld design, sampling rate up to 120Hz (fixed at 7.5Hz for wireless mode), accuracy up to 0.05%, suitable for industrial environments that require stable sampling with alarm alerts.
*
SKU: ATO-DPM-TYSC
30-day Returns
Free Shipping
Delivery date: 6-12 days

The available portable wireless digital panel meter for sale, adopts wireless/wired sensor interface optional, provides 5 digit clear display. Alarm limit can be set upper and lower limit, coordinate range is adjustable, and capture length is up to 999999 seconds. Wireless mode is easy to set up, built-in battery lasts 24 hours, wide range of operating temperatures, low cost for stable data measurement.

Specifications

Model ATO-TYSC
Sensor Interface Wireless/wired (optional)
Display Unit kg, t, kN, N, lb
Sampling Speed 7.5Hz 15Hz 30Hz 60Hz 120Hz
The sampling rate of the wireless mode is fixed at 7.5Hz.
Display Bits 5 digit
Comprehensive Accuracy 0.05%
Operating Temperature Charge 0~45°C, Discharge -10~50°C
Battery Continuous Operating Time 24 hours
Alarm Upper Limit -19999~99999
Lower Alarm Limit -19999~99999
Capture Length 5~99999 seconds (return to measurement interface after capture)
Set Coordinate Range 0~99999
Clear Memory Space None
Peak Hold Time 0~86400 seconds
First Peak Predefined Value 0~99999
Wireless Mode Parameters Accept Transmit Disable (need to re-power up after setting)
Number of Decimal Places 0 1 2 3 4 bits
Power Adapter 9V DC 2A (Adapter input voltage AC-100-240V, 50/60HZ)
External Dimensions 176*72*38mm
5-pole Air Plug Definition Pin 1: Signal negative (white line)
Pin 2: Signal positive (green line)
Pin 3: Negative excitation (black line)
4 pins: Excitation positive (red line)
5 pins: Null

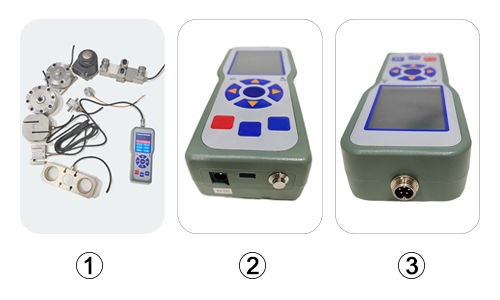

Feature

Wireless digital panel meter feature

  1. Digital Display: Built-in rechargeable lithium battery, suitable for the site complexity, inconvenient wiring and interference with the use of large force measurement occasions. Can be used in combination with a variety of force sensors.
  2. USB Data Interface: Connect to computer via USB, export TXT data to view force curves through supporting software.
  3. Aviation Plug: Connected to the sensor through the aviation plug. Can be built-in wireless receiver module, into a wireless handheld digital panel meter.

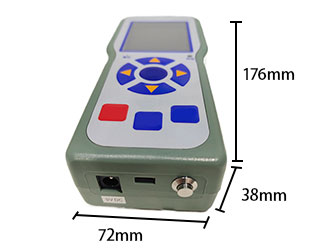

Dimension (unit: mm)

Wireless digital panel meter dimension

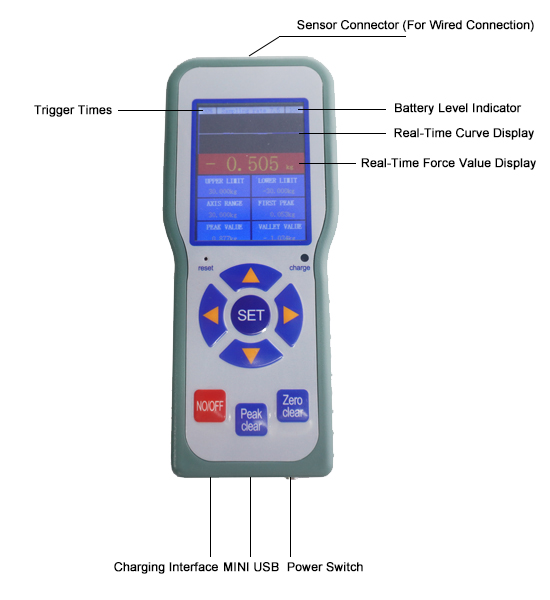

Details

Wireless digital panel meter detail

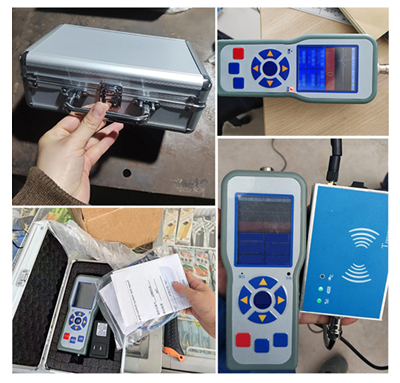

Field Cases

Wireless digital panel meter field cases

Tips: Protable wireless digital panel meter for quick calibration/scalibration

  1. When the sensor or sensor device is unloaded, press "Setup" to enter the parameter table.
  2. Find "Sensor Calibration" and press "▶" key to enter, input the password 011111, after determining the zero point, it will display "00000" and the last digit will be red, then press "◀", "▲", "▲", the display value will be set to the weight value to be added to the sensor device. After setting, add the set weight to the sensor and press "Set" key after stabilization.
  3. The display will show "-", "---", "---",... "-----" finally return to the parameter table, press the setup key to return to the measurement interface, calibration is complete.
  4. In the case of making sure that the sensor device is unloaded, press and hold the "Zero" key to complete the power off to save the zero (tare).
  5. Note: If the sensor and the handheld meter are purchased as a set and have been calibrated at the factory, please do not repeat the "Sensor Calibration".
