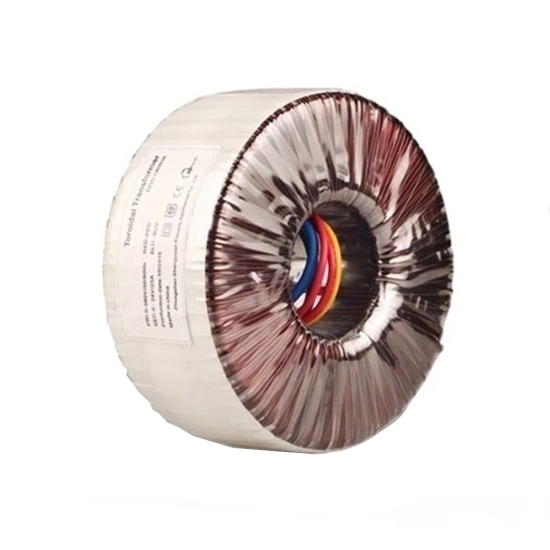

    1500VA Toroidal Transformer, 230V to 12-0-12V/24V

    Buy best 1-phase isolated toroidal transformer with 1500 full capacity, 230V AC primary voltage to 12-0-12V/24V secondary voltage, small size and light weight, has been widely used in household appliances and other electronic equipment with high technical requirements.
    SKU: ATO-T-C1500VA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 1500VA toroidal transformer is single phase, step down input voltage 230V AC to double output voltage 2x12V or single output voltage 24V, input/output voltage can be customized as your requirement. It features high insulation strength, UL recognised, less noise and long life.

    Advantages of ATO Toroidal Transformer

    1. High Efficiency: Winding matches core perfectly, which makes the transformer more efficiency.

    2. Long Service Life: With high quality materials and manufacturing technology, the transformer can be used for 30 years.

    3. Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.

    4. Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.

    5. Low Temperature Rise: Even it is overloaded at 120%, temperature rise will be less than 70℃.

    1500VA Toroidal Transformer Specifications

    Model ATO-C1500VA
    Phase Single phase
    Power 1500VA
    Primary Voltage 230V AC (Optional: 110V, 120V, 220V, 230V, 240V)
    Secondary Voltage 2x12V (12-0-12) AC (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
    Secondary Current 62.5A each winding
    No. of Inputs 1 intput
    No. of Outputs

    2 inputs, 4-wire (1 output is available)

    Note: For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.

    Frequency 50Hz/60Hz
    Winding Material Copper Wire
    Coil Structure Toroidal
    Efficiency 90%-96%
    No-load Loss <5.5W
    Input Wire UL1015-14
    Output Wire UL3321-12
    Voltage Strength DC2500V
    Insulation Impedance ≥500MΩ
    Cooling Method Natural air cooling
    Temperature +40℃
    Certification CE, RoHS, ISO, UL
    Warranty 12 months
    External Diameter 193mm
    Height 80mm
    Pedestal 180*180mm
    Mounting Hole Distance 170*170mm
    Weight 13kg
    Package Included 1*Toroidal transformer + 1*Accesorries sets (Nut, Shim, Metal disk, Rubber gaske, Pedestal, Screw)

    Toroidal Transformer Accessories

    toroidal transformer accessories

    Toroidal Transformer Mounting Methods

    toroidal transformer mounting method

    Toroidal Transformer Internal Structure

    toroidal transformer internal structure

    Tips: All copper wire transformers have higher efficiency

    All copper wire toroidal transformers have higher conversion efficiency than copper clad aluminum wire transformers and aluminum wire transformers. For the same type of toroidal transformer, if the metal wire used for its coil winding is aluminum, its loss will be greater than that with a copper coil. However, all copper wire transformers generate less heat and have less losses in the same time period. Naturally, the work conversion efficiency is faster than copper-clad aluminum wire transformers and aluminum wire transformers that generate heat and have large losses.

    Compared with ordinary transformers, toroidal transformers have great advantages in efficiency, temperature rise, cost, anti-interference, and longevity. This video will showcase its function and benefits.
