2500 Amp Dual Power Automatic Transfer Switch, 4 Pole

2500 amp dual power automatic transfer switch with 120 kA rated limit short circuit current and 50 kA rated short time withstand current. Intelligent automatic transfer switch widely used in military facility, hospital and shopping mall.

Features:

• With the function of normal power ON, dual power OFF, standby power ON.
• Adopting high performance micro circuit breaker, with circuit breaker breaking capacity and characteristics.
• Simple structure, easy and reliable operation, no noise and long service life.
• Suitable for the illuminating circuits of commercial buildings, shopping mall, banks, and high-rise buildings where the power supply can not be cut off for a long time.

Specification:

• Model: GCQ4-125/4P-2500A
• Rated Current: 2500A
• Number of Poles: 4P
• Rated Insulation Voltage: 1000V
• Rated Shock Withstand Voltage: 12 kV
• Rated Working Voltage: AC 400V
• Rated Marking Capacity: 10 Ie
• Rated Breaking Capacity: 8 Ie
• Rated Limit Short-circuit Current: 120 kA
• Rated Short-time Withstand Current: 50 kA
• Change-over Time: 1.8s
• Normal Rated Power: 120W
• Working Temperature: -25 ℃ ~ +70 ℃
• Storage Temperature: -30 ℃ ~ +80 ℃
• Weight: 95 kg

Details

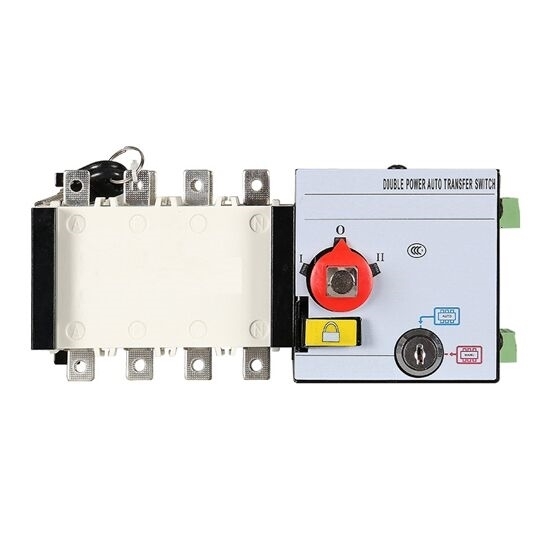

Dual Power Automatic Transfer Switch Structure:

Terminal Connection Method:

Use the screw driver use force downwards as the picture indicated direction,the line imbedding as the picture shows.

Tips: Applications of Automatic Transfer Switch

The applications of automatic transfer switch include the following.

• ATS dual power transfer switches are used to transfer electrical power between two power sources like primary utility and secondary backup power source.
• Auto transfer switches are also used in other electricity switching applications like utility to utility, the generator to generator and three-source systems.
• Dual power automatic transfer switches are used in hospitals, schools, medical buildings, malls, restaurants, malls, warehouses, factories, etc.

• Automatic changeover switches are used for protecting telecommunication and data networks, industrial processes and critical installations like financial transaction centers and health care facilities.
