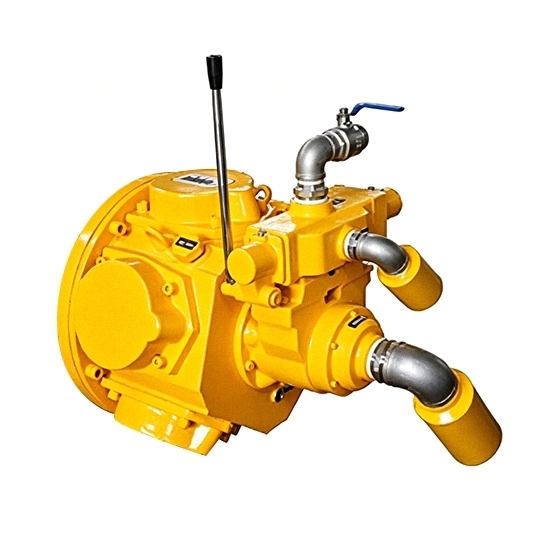

30 hp Piston Air Motor, 650 rpm, 320 Nm

For demanding industrial drive systems, this 30 hp piston air motor combines a robust pneumatic design with flange-type mounting for straightforward equipment integration. Suitable for heavy-duty machinery, the motor provides dependable power transmission in applications where compressed-air operation is preferred.

Specification

Best For

• High-load industrial drives where strong pneumatic output is needed to power demanding mechanical systems.
• Heavy-duty processing equipment operating in environments where compressed air is a practical alternative to electric motors.
• Low-to-medium speed machinery that benefits from substantial torque and controlled rotational output.
• Large pneumatic installations with adequate air supply, piping, and control components for high-flow operation.

Not Recommended For

1. Small machines or low-power equipment that do not require the output capacity of a 30 hp pneumatic motor.
2. Air systems with restricted flow capacity, where insufficient compressed-air supply may limit motor performance.
3. Precision high-speed applications requiring fine speed control or rotational speeds beyond the motor's rated range.
4. Installations with limited mounting or piping space, particularly where the flange configuration and large air connection cannot be accommodated.

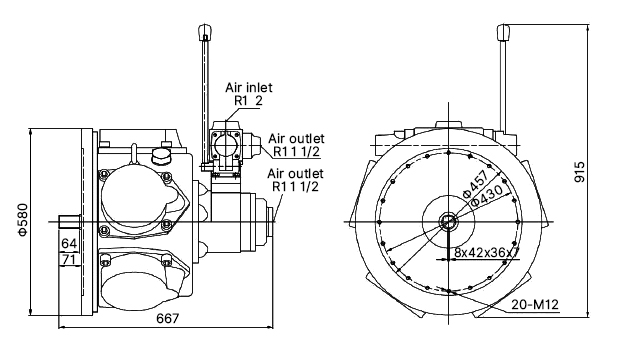

Size (unit: mm)

Tips: What Factors Should I Check Before Selecting This Piston Air Motor?

You should first compare the required torque, operating speed, and available compressed-air capacity with the motor specifications. The equipment should also provide sufficient space for flange mounting and accommodate the RC 2" air connection. Matching these mechanical and pneumatic requirements before installation helps ensure proper integration and reliable operation.
