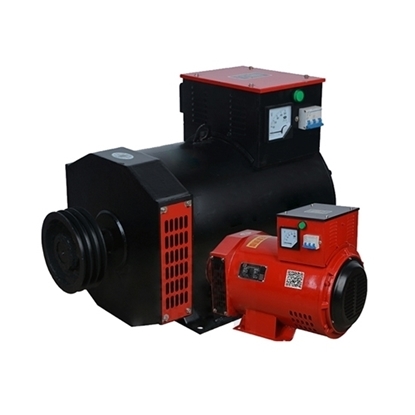

5kW AC Synchronous Generator, 1-phase/ 3-phase

5 out of 5 based on 1 reviews | Write a review

$1,456.50

Cheap price AC generator online for sale, which featuring rated power 5kW, rated capacity 6.3kVA, rated current 9 amp, 1500 r/min rated speed. Alternating current generator is widely used in industrial and agricultural production, national defense, science and technology and daily life.

SKU: ATO-ASG-STC-5

Voltage *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Single phase or three phase brush AC generator with 0.8 cosφ power factor, 4P, frequency 50Hz. AC generator has an elegant appearance, sturdy and durable structure, convenient maintenance and long service life.

Specification

Model	ATO-STC-5
Rated power	5kW
Rated capacity	6.3kVA
Rated current	9A
Power factor	0.8 cosφ
Pole number	4 pole
Rated speed	1500 r/min
Phase	Single phase/ Three phase
Rated voltage	220V (230V/ 240V can be customized)/ 380V (400V/ 460V can be customized)
Frequency	50Hz
Weight	60kg
Certificate	CE
Warranty	12 months

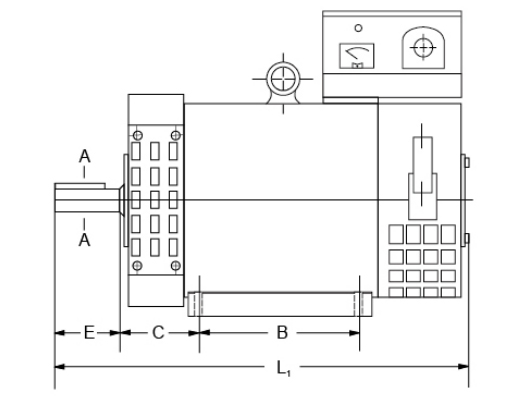

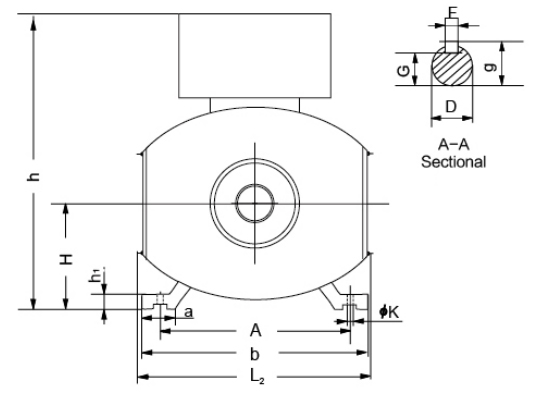

Dimension

Model	Mounting dimensions (mm)									Outer dimensions (mm)
Model	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g
STC-5	254	254	108	32	80	12	32.8	160	15	50	310	25	450	580	325	40.8

Tips: What is AC Synchronous Generator?
AC synchronous generator is a mechanical device that converts other forms of energy into electrical energy. It is driven by a water turbine, steam turbine, diesel engine or other power machinery, which converts the energy generated by water flow, air flow, fuel combustion or nuclear fission into mechanical energy and then transmits it to the generator, at last, it converted into electrical energy by a generator.
