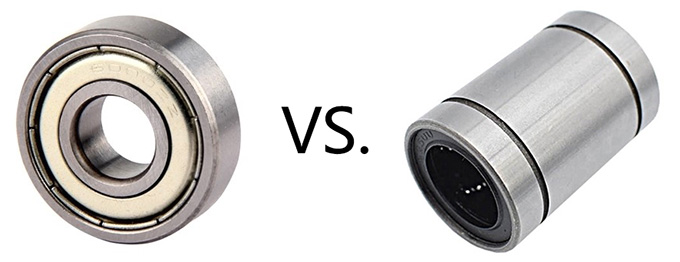

Deep Groove Ball Bearing vs. Linear Ball Bearing

Bearings are essential components in mechanical design and industrial manufacturing. Although they are small in size, they play a key role in transmission systems. Today we are going to talk about two common but very different types of bearings: Deep Groove Ball Bearings and Linear Ball Bearings. Although they both contain "Ball Bearings" in their names, they are very different in structure, function and usage scenarios. Understanding their differences will help engineers and designers make appropriate selections for different projects.

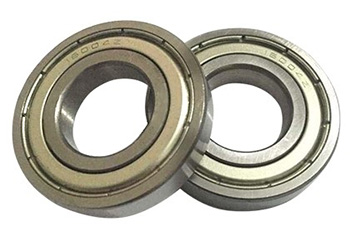

Deep groove ball bearings are a typical rotating bearing. It consists of an inner ring, an outer ring, balls and a cage. Because of its deep groove, it can withstand large radial loads and a certain degree of axial load. This type of bearing has a simple structure, smooth operation and low manufacturing cost, so it is widely used in motors, fans, car wheels, household appliances and other equipment. Deep groove ball bearings are suitable for medium and high-speed rotation environments and are one of the most common types of bearings in industry.

In contrast, linear ball bearings are not designed for rotational motion, but for low-friction, high-precision linear sliding. It is usually used in conjunction with a cylindrical guide rail (also called a smooth axis), and the internal ball rolls cyclically between the bearing housing and the guide rail, allowing the slider to move smoothly along the guide rail. This type of bearing is most commonly found in sliding parts of industrial machinery such as precision machine tools, textile machinery, food packaging machinery, and printing machinery, where position accuracy and smooth linear movement are more important than high-speed rotation.

Working principle comparison

The working principle of deep groove ball bearings is based on rolling friction in rotational motion. When the bearing is installed between the rotating shaft and the bearing seat, the inner ring rotates with the shaft, and the ball rolls between the inner ring and the outer ring, thereby effectively reducing the rotational friction of the shaft. The design of this bearing enables it to withstand both radial loads (forces perpendicular to the axis) and a certain degree of axial loads (forces along the axis).

The working principle of linear ball bearings is to achieve low-friction linear sliding by rolling the rolling body along the guide rail. When the slider moves along the guide shaft, the ball circulates between the bearing housing and the guide rail, similar to a track structure. This type of movement enables the load to achieve high-precision, low-friction linear movement on the guide rail, which is particularly suitable for occasions with frequent linear displacement, such as automated platforms or XYZ mobile systems.

Bearing structure analysis

In terms of structure, deep groove ball bearings are composed of four parts: inner ring, outer ring, ball and cage. Its characteristic is that there are deep spherical grooves on the inner and outer rings, which can stabilize the movement of the balls. The function of the cage is to evenly distribute the balls to prevent mutual collision. It has a compact structure and strong versatility, and is the most common type of bearing in the industry.

Linear ball bearings are usually composed of a cylindrical housing (slider), several ball rows and end covers, and some of them also have circulation channels inside to achieve continuous circulation of the balls. It is usually used in conjunction with a cylindrical guide shaft (optical axis), and the entire sliding system is more like a combination of "guide rail + ball" rather than a traditional rotary bearing.

Bearing characteristics comparison

Deep groove ball bearings are suitable for rotary motion, can withstand large radial loads and certain axial loads, operate stably, are suitable for medium and high-speed occasions, are simple to maintain, and have a long life. Linear ball bearings are used for linear sliding, with a lower friction coefficient, but they do not bear axial loads, and have higher requirements for guide rail cleaning and lubrication. They are suitable for systems that require high-precision linear positioning.

In terms of installation, deep groove ball bearings are usually installed between the rotating shaft and the bearing seat, while linear ball bearings are embedded in the slider and used in conjunction with the guide rail. The former is commonly used in motors, fans, and mechanical transmission systems, while the latter is widely used in equipment such as 3D printers, CNC platforms, and automated slides. The choice between the two depends on the mode of movement and precision requirements.

Although both are called "ball bearings", deep groove ball bearings are suitable for rotational scenarios, while linear ball bearings focus on linear sliding. If you are selecting a bearing, you must first determine whether the system needs to support rotational motion or achieve precise linear guidance. This judgment will directly determine which type of bearing you need. ATO online store offers a variety of bearing options. You can visit ATO website to select the type of bearing you need.
