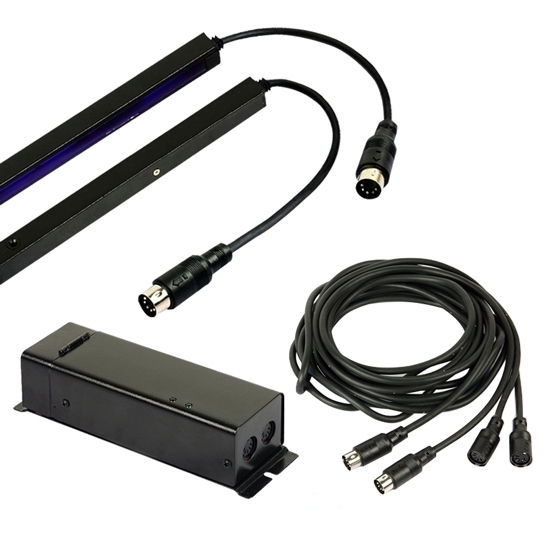

Elevator Light Curtain, 33-94 Beams

ATO elevator light curtain is both safe and practical: Equipped with 17 pairs of infrared tubes and 33-94 scanning beams, the protection height covers 20~1841mm, and the transistor output response is only 21ms, enabling quick and accurate obstacle prevention. Safety light curtain sensor adopts waterproof plug and integrated seamless structure, taking both durability and protection. It supports both mobile and fixed installation, is suitable for multiple elevator scenarios, and can work stably at -20℃~65℃, achieving a balance among safety, adaptability, and convenience.

Specification

Features

• High security protection: 33-94 beams of rays provide a protection height of 20~1841mm, resist 100000Lux light interference, and redundant functions enhance reliability.
• Strong environmental adaptability: Elevator light curtain can withstand a temperature range of -20℃ to 65℃, has passed high and low temperature/vibration tests, complies with EN12015 for electromagnetic compatibility, and is stable and durable under complex working conditions.
• Easy to install and use: ATO safety light curtain supports both mobile and fixed installation, is equipped with a waterproof plug, and comes with complete accessories for immediate use upon unpacking.

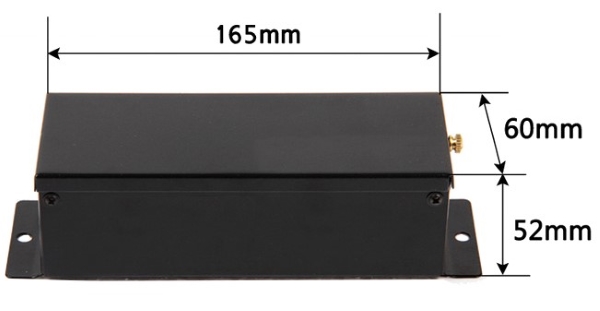

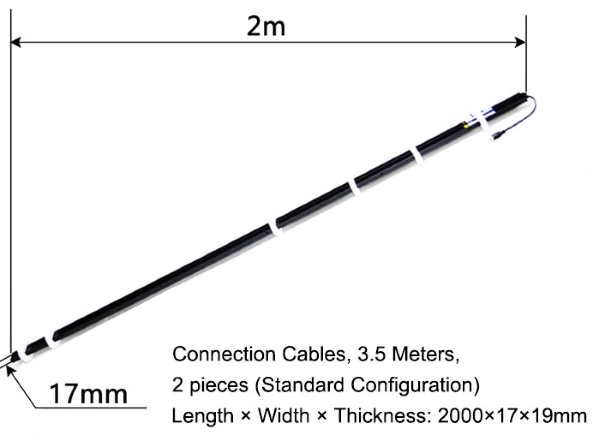

Dimension

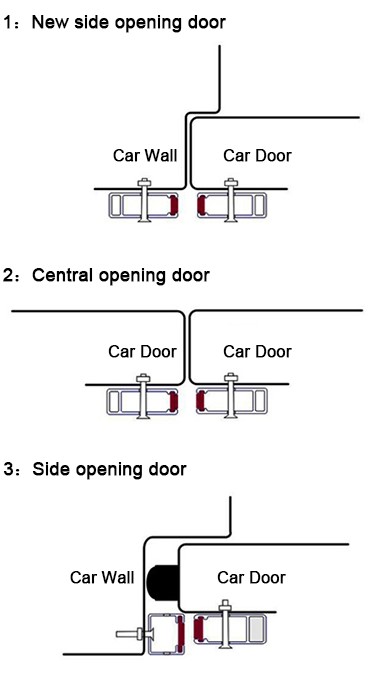

Movable Installation Diagram

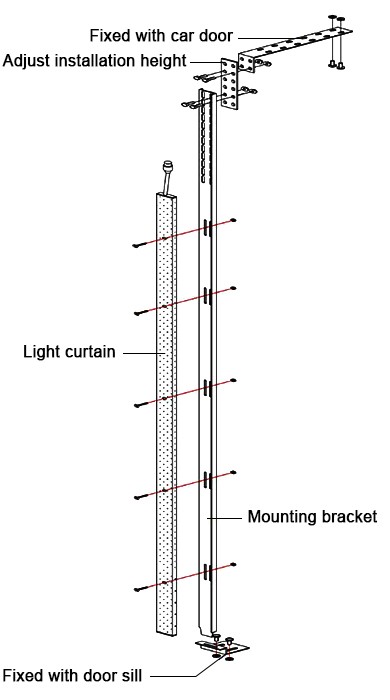

Fixed Installation Diagram

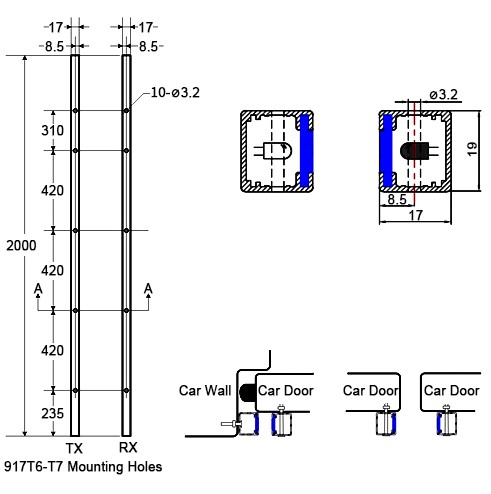

Mounting Holes

5 Tips for Using Elevator Light Curtain

1. Install in strict accordance with the instruction manual. Ensure that the position tolerance is within the range of ±15mm/7° (up and down) and ±3mm/5° (front and back), and avoid blocking the infrared tube or light beam.

2. Do not use it in a temperature environment beyond -20℃ to 65℃, and avoid direct exposure to strong light. Although the elevator light curtain is resistant to 100000Lux interference, long-term strong light may still affect its service life.

3. Clean the surface of the infrared tube regularly to avoid blocking by oil stains and dust. Do not knock or pull the light curtain line to prevent damage to the seamless splicing structure.

4. If the buzzer alarms continuously, first check if the light curtain is blocked; if the fault recurs, do not disassemble it by yourself, and contact professional personnel for maintenance.

5. Do not rely on safety light curtain to replace the mechanical protection of the elevator door. Stop using the equipment immediately and report for repair when it malfunctions.
