    Gauss Meter Buying Guide

    A gauss meter, also known as a magnetic field meter, is an instrument used to measure magnetic fields. gauss meters play a vital role in scientific research, engineering, medicine, and other fields. Choosing the right gauss meter for a need may require some thoughtful consideration, and this buying guide will help users understand the benefits of gauss meter, the different types, and how to choose the best gauss meter for the job.

    Benefits of Gauss Meters

    • Accurate Measurements: Gauss meters provide highly accurate measurements of magnetic fields, which is important for applications that require accurate data, such as scientific research and engineering projects.
    • Directional Measurements: Gauss meters not only measure the strength of the magnetic field but also determine the direction of the field, which is useful for magnetic orientation and navigation applications.
    • Non-Invasive Measurement: Gauss meters are usually non-invasive and require no contact with the object being measured, making them suitable for many different experimental and measurement situations.
    • Versatility:¬†Gauss meters can be used for a wide variety of applications including magnetic field measurements, magnetic material testing, magnetic field calibration, biomedical research, and many more, making them highly versatile.
    • Data Logging and Analysis: Many¬†gauss meters have data logging and analysis capabilities to help users record measurements, analyze data, and generate reports.

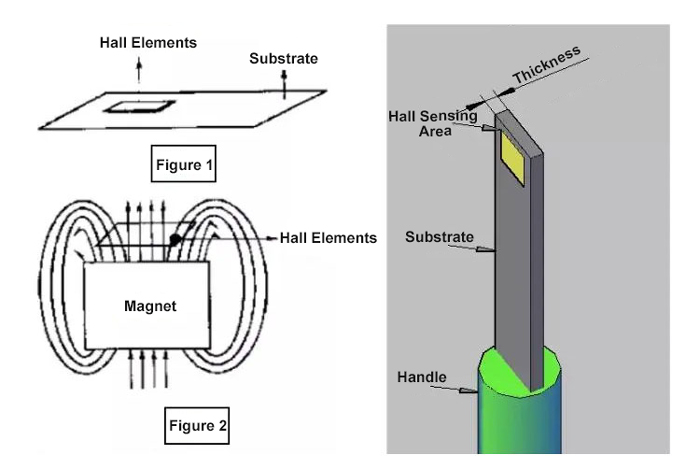

    Use of gauss meters

    Types of Gauss Meters

    There are many different types of gauss meters, and depending on the measurement principle and application, it is important to choose the right type of gauss meter for your needs. The following are some of the common types of gauss meter.

    1. Hall Effect Gauss Meter: This type of gauss meter is based on the Hall effect and utilizes the potential difference caused by the magnetic field when a current passes through a semiconductor material to measure the magnetic field, and is typically used for low magnetic field measurements and magnetic field direction measurements.
    2. Magnetoresistive Gauss meter: Magnetoresistive gauss meters use magnetoresistive materials whose resistance changes in response to the magnetic field. This type of gauss meter is commonly used for high magnetic field measurements and high precision measurements.
    3. Bending Gauss Meter: Bending gauss Meter adopts the principle of bending the metal sheet, utilizing the change of bending degree of the metal sheet to measure the magnetic field, which is suitable for some special applications, such as medical equipment and biomedical research.
    4. Triaxial Gauss meter: Triaxial gauss meters have three independent sensors that can measure magnetic fields in three directions simultaneously. This is useful for applications that require omnidirectional magnetic field measurements, such as geomagnetic surveys and navigation systems.

    Choosing a Gauss Meter

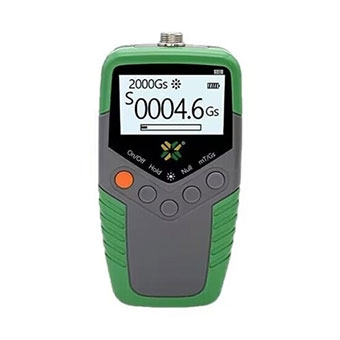

    Digital gauss meter

    • Determine the Application Requirements: First, define the application requirements. Determine the range of magnetic fields to be measured, the accuracy, the frequency of measurement, and whether directional information is required. The magnetic field is divided into DC magnetic field and AC magnetic field two kinds, permanent magnetic material magnetic field strength should be selected DC gauss meter measurement. Define the approximate magnetic field range of the object to be measured, and select a gauss meter whose range should be larger than the measured magnetic field.
    • Choose the Appropriate Type: Select the appropriate type of gauss meter according to the application requirements. For example, if high magnetic fields need to be measured, a magnetoresistive gauss meter may be a better choice. If triaxial measurements are required, choose a triaxial gauss meter.
    • Determine the Accuracy Requirement: This refers to the resolution of the gauss meter, e.g., whether the resolution is 1G or 0.1G, etc. Determining the measurement accuracy required will help narrow down the choice. Different models of gauss meter have different accuracy levels.
    • Consider the Environment: Consider the environment in which you plan to use the gauss meter. Some gauss meters are water and dust-resistant, making them suitable for use in harsh environments.
    • Budget Considerations: Consider your budget range. Prices of gauss meters vary greatly depending on the model and features. Make sure you choose the right gauss meter for your budget.
    • Check Product Reviews and Manufacturer Information: Check product reviews about the gauss meter to see what other users have experienced. Also, review the product specifications and technical data provided by the manufacturer for more information.
    • Contact a Professional: If you are not sure how to choose the right gauss meter for your needs, it is advisable to consult a professional or supplier who can provide professional advice and guidance. ATO.com, a one-stop online store supplying a wide range of industrial automation products, i.e., motors, motor controls, power supplies,ect. ATO is committed to providing you with the best and highest quality gauss meters at the most affordable prices, we will ship your gauss meter to you wherever you are and provide you with professional after-sales service, if you need any help, please feel free to click and visit.

    Buying a gauss meter is an important decision as it involves the crucial task of measuring magnetic fields correctly. Understanding the benefits, different types and selection methods of gauss meters will help to make an informed choice to meet the application requirements. Ensure that you fully consider your needs, budget, and the environment in which it will be used before making a purchase, and refer to expert advice to select the most suitable gauss meter. This will help ensure that accurate magnetic field measurements are obtained and research or engineering requirements are met.
