    How does an Air Cooled Spindle Motor Work?

    Air-cooled spindle motor is a special type of motor mainly used in CNC machine tools. It dissipates heat through internal air circulation and does not require the use of a water cooling system. This kind of motor is mainly used for high-precision, high-speed, and high-stability machine tool processing requirements, especially when the cooling performance is relatively poor. Air-cooled spindle motors are mainly used in equipment with smaller power, such as household and small machine tools. Now we will provide the knowledge of the working principle, hoping to help someone who needs it.

    Working principle of air-cooled spindle motor

    Motor working basics

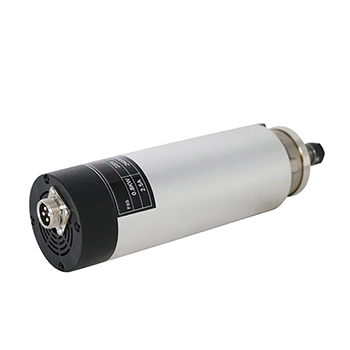

    The working basis of theĀ air-cooled spindle motor is mainly based on the principle of electromagnetism. The main components inside the motor are the rotor (armature) and the stator, which realize energy conversion through the action of the magnetic field. The normal operation of the motor requires a power supply to provide electrical energy, thereby generating a magnetic field between the stator and rotor.Air cooled spindle

    Principle of electromagnetic induction
    In the working principle of an air-cooled spindle motor, electromagnetic induction is a key link. When the motor is powered on, it will produce a rotation. The magnetic field interacts with the rotor (armature) to generate torque, thereby causing the rotor to rotate. This process is the application of the principle of electromagnetic induction, and the rotation of the rotor realizes the conversion of mechanical energy.

    Mechanical energy and electrical energy conversion
    The air-cooled spindle motor realizes the mutual conversion of mechanical energy and electrical energy during operation. When the rotor rotates, the coils on it cut the magnetic lines of force and generate induced electromotive force, thereby converting mechanical energy into electrical energy. In turn, when the current on the stator changes. The resulting magnetic field also changes, creating torque and converting electrical energy into mechanical energy.

    Cooling system operation

    Air-cooled spindle motors get their name from their cooling system. To ensure that the motor maintains normal operating temperature under high-speed operation, an effective cooling system is required. The cooling system usually includes a fan and a radiator. The fan blows cold air to the radiator, and the radiator takes away the heat generated by the motor to achieve a cooling effect.
    The control system of the air-cooled spindle motor is mainly responsible for adjusting the operating status of the motor. The control system can adjust the input voltage or current of the motor, thereby changing the motor's speed and torque. In addition, the control system can also monitor parameters such as temperature, current, and voltage of the motor to ensure that the motor works under safe conditions.
    Air-cooled spindle motors have some notable features. First of all, due to its air cooling method, it has a simple structure and easy maintenance. Secondly, the air-cooled spindle motor has the characteristics of high efficiency and high power density, which can meet the needs of high-speed processing. In addition, due to the efficient control and heat dissipation system, the air-cooled spindle motor can maintain high-precision and high-stability operation for a long time. These characteristics make air-cooled spindle motors widely used in high-precision processing equipment such as CNC machine tools and machining centers.

    Working procedures of air-cooled spindle

    Start the spindle
    When starting the air-cooled spindle motor, first check whether the motor's power supply is normal to ensure that the motor can operate normally. Then, start the main axis motor and wait for the motor to run stably. During this process, the spindle motor gradually reaches the preset speed.

    Accelerate the spindle
    After the spindle motor runs stably, the spindle can be accelerated according to processing needs. During the acceleration process, it is necessary to pay attention to the current and voltage changes of the motor to ensure that the motor is not overloaded. At the same time, pay attention to the vibration and noise of the spindle to ensure the stability of the spindle.

    Running the spindle
    After the spindle reaches the required speed, the machining operation can be carried out. During operation, you need to pay close attention to the various parameters of the spindle. Such as current, voltage, temperature, vibration, etc. to ensure the stable operation of the spindle. At the same time, it is also necessary to adjust the spindle parameters in time according to the processing needs to obtain better processing results.

    Slow down and stop
    After processing is completed, the spindle needs to be decelerated and stopped. During the deceleration process, it is necessary to pay attention to the current and voltage changes of the motor to avoid overloading the motor. After the spindle comes to a complete stop, turn off the power of the spindle motor to complete the entire processing process.
    When turning off the spindle motor, you need to first check whether the various parameters of the motor are normal, such as current, voltage, temperature, etc. If an abnormal situation is found, it needs to be dealt with in time. Then, turn off the power to the spindle motor and complete the entire shutdown process.
