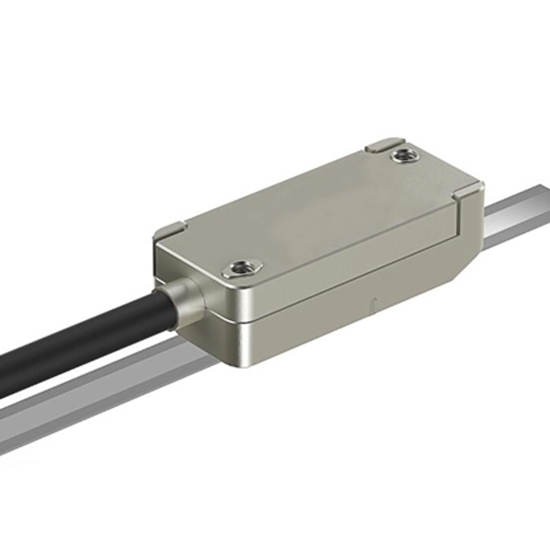

    Incremental Optical Linear Encoder, Non-Contact

    Incremental optical linear encoders are available for sale at factory prices, offering optional resolutions of 0.1 µm, 0.5 µm or 1 µm to meet various accuracy requirements. The non-contact incremental linear encoder operates at a frequency of 4 MHz and has direct outlet, DB9 or DB15 output options, suitable for precise position measurement in industrial applications and precision machinery.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental non-contact linear encoder provides precise position feedback for your equipment, optimizing production processes and enhancing product quality. Whether you require high-precision machining or precise positioning, ATO provides useful solutions for your needs.


    • Multi-color indicator lights indicate signal strength, simplifying installation.
    • It includes a built-in reference zero position for precise calibration.
    • The encoder utilizes a high flexibility, bending-resistant braided shielding wire.
    • Despite its compact size, it offers high resolution for detailed measurements.
    • The optical linear encoder provides a standard AB quadrature digital signal output for compatibility with various systems.
    • The incremental position encoder features an open non-contact optical system to ensure reliable performance.
    • Encased in a stainless steel shell, it boasts strong anti-interference properties.
    • The incremental encoder incorporates a high-precision measurement system for accurate readings.


    Model ATO-LGD64
    Power supply 5V±-10%
    Current consumption Less than 120mA
    Resolution 0.1μm, 0.5μm, 1μm (choosable)
    Accuracy level of grating ruler ±5μm/m
    Repeatability ±1μm
    Maximum output frequency 4MHz
    Output signal Differential TTL
    Mode of connection Direct outlet, DB9 or DB15
    LED status Red, green and blue
    Reading head size 32mm*14mm*9mm
    Grating scale size 6mm wide (We can provide grating scale, please contact us)
    Operating temperature -10℃~70℃
    Storage temperature -20℃~85℃
    Outside diameter of cable 4.0±0.1mm
    Number of bending 50 million times, Bending radius greater than 24mm

    Dimension (mm)

    Incremental optical linear encoder dimension

    Tips: How to choose an incremental optical linear encoder?

    • Resolution: Choose the resolution (e.g., 0.1 µm, 0.5 µm, 1 µm) based on your required precision.
    • Signal Output: Decide between digital (e.g., AB quadrature) or analog signals based on your system’s needs.
    • Installation and Size: Ensure the encoder fits your mounting requirements.
    • Environmental Conditions: Select one that can operate reliably in your environment (e.g., temperature, humidity).
    • Additional Features: Consider features like built-in reference points or robust shielding for interference resistance.
    • Cost vs Performance: Balance your budget with the required performance specifications.
