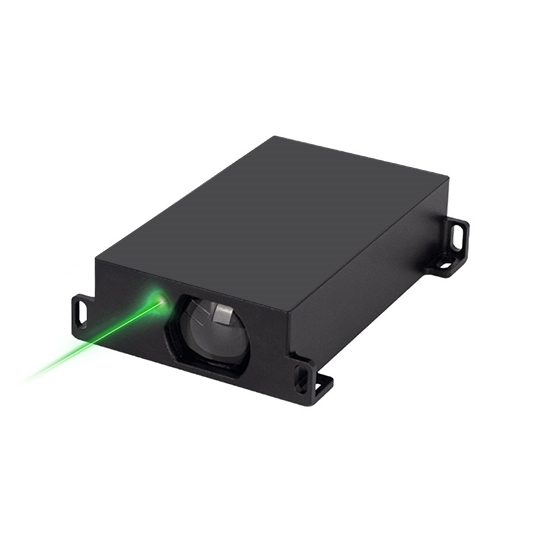

Industrail Laser Distance Sensor, TTL/RS485/RS232

Write a review

$288.92

The industrial laser distance sensor with selectable TTL/RS485/RS232 communication, designed for reliable long-range measurement. Supports 100m, 150m, and 200m sensing ranges, with 0.05–4s adjustable measurement time and 3Hz measurement frequency for stable real-time distance monitoring. Ideal for industrial automation, positioning, and outdoor distance measurement.

Measuring Range *
Communication Interface *

SKU: ATO-LDS-MSJG

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The high precision laser distance sensor designed for stable measurement in demanding environments. Multiple communication interfaces enable flexible integration with PLCs, controllers, and industrial systems.

Specification

Model	ATO-MSJG-202512
Measurement Range	0.03–100/150/200m (Reflectivity: 1.0, Ambient Light Intensity: 3 kLux)
Sensing Distance	100m/150m/200m
Measuring Frequency	3Hz
Accuracy	±(3 mm + D × 1/10000)
Resolution	1mm
Laser Wavelength	λ=610–690 nm
Laser Power	< 1mW
Measurement Time	0.05–4s
Laser Class	ClASS-II
Laser Spot Diameter	＜8mm@10m; ＜20mm@20m; ＜40mm@40m
Reflectivity Range	0.02–1.0
RS485	Laser Off Current	<60mA@5V
	Laser On	<85mA@5V
	Continuous Measurement Mode	<120mA@5V
5V RS232	Laser Off Current	<65mA@5V
	Laser On	<90mA@5V
	Continuous Measurement Mode	<130mA@5V
5–36V RS232	Laser Off Current	<60mA@5V
	Laser On	<80mA@5V
	Continuous Measurement Mode	<120mA@5V
3.3V TTL	Laser Off Current	<70mA@3.3V
	Laser On	<100mA@3.3V
	Continuous Measurement Mode	<155mA@3.3V
5–36V TTL	Laser Off Current	<65mA@5V
	Laser On	<70mA@5V
	Continuous Measurement Mode	<100mA@5V
Operating Temperature	0–40℃
Storage Temperature	-25–60°C
Protection Rating	IP54
Dimensions	85×62×22mm
Weight	93g

Feature

High-Precision Laser Measurement: The industrial laser distance sensor uses advanced laser ranging technology to provide accurate distance detection.
Long-Range Distance Detection: Designed for medium and long-distance measurement applications, suitable for industrial monitoring, positioning, and outdoor detection tasks.
Multiple Communication Interfaces: The small laser distance sensor supports TTL, RS232, and RS485 communication, enabling easy integration with PLCs, microcontrollers, and industrial control systems.
Fast Response & Continuous Measurement: Adjustable measurement time and continuous measurement capability allow real-time distance monitoring for dynamic industrial environments.
Compact Design for Industrial Integration: The laser distance sensor features a compact and lightweight structure, making installation convenient.

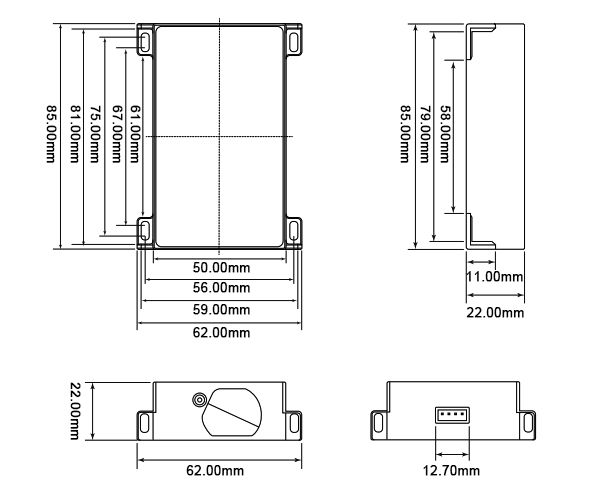

Size (unit: mm)

Industrail laser distance sensor size

Application

Industrail laser distance sensor application

Tips: How does this industrial laser distance sensor work?

The laser distance sensor operates based on Time-of-Flight (TOF) technology. It emits a laser beam toward the target and measures the time it takes for the reflected light to return to the sensor. By calculating this time difference, the laser sensor accurately determines the distance to the object. This method enables fast response, long-range measurement, and stable performance in industrial applications.
