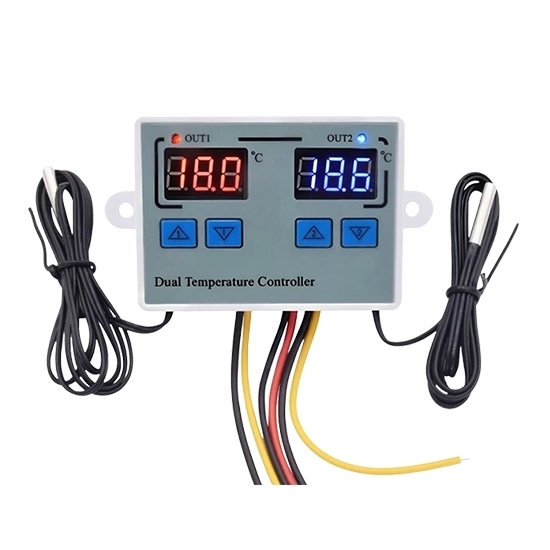

Intelligent Dual Temperature Controller, 12V/24V/110-220V

This smart temperature controller offers dual temperature control with intelligent working mode judgment. Available in 12V, 24V and 110-220V working voltages, and equipped with a 1m waterproof NTC probe for fast temperature detection. Durable ABS flame-retardant shell make it suitable for HVAC systems, water tanks, and automation projects. Buy now and make temperature control simple and precise.

Specification

Features

1. Intelligent Mode Detection: This intelligent temperature controller can automatically switch between heating and cooling modes, providing stable and efficient temperature management without frequent manual adjustment.
2. High-Precision, Wide-Range Temp Measurement: Featuring a wide temperature control range of -50~110℃ and 0.1℃ accuracy, this dual temperature controller ensures precise and reliable temperature regulation for various applications.
3. Safe and Durable Construction: Equipped with a waterproof NTC probe and flame-retardant ABS housing, this digital temperature controller delivers safe, stable, and long-lasting performance in demanding environments.

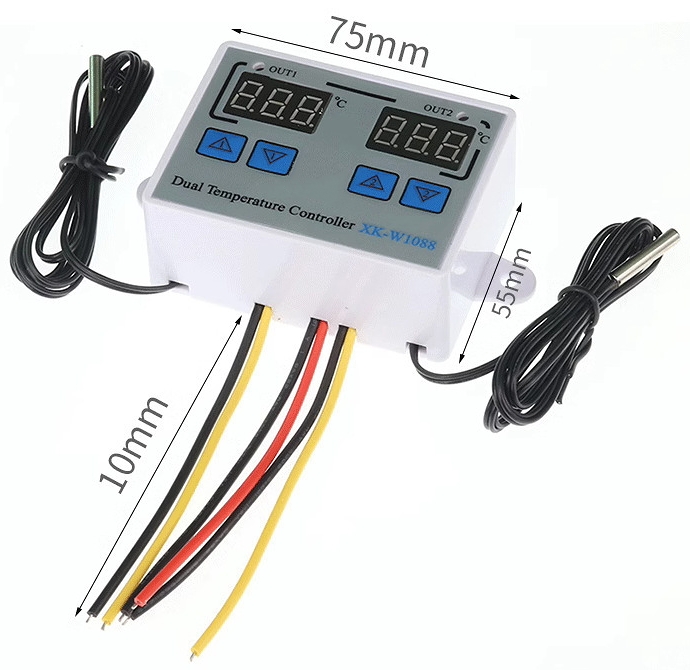

Dimension (unit: mm)

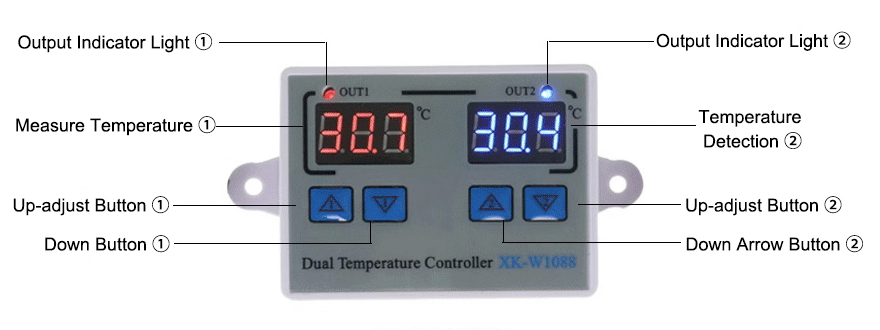

Details

Wiring

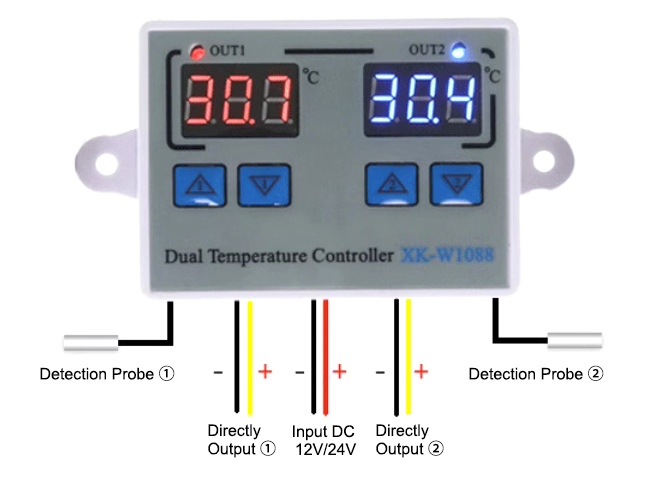

12V/24V

• Note: The 12V/24V version of this temperature controller can be powered by a transformer or a DC power supply with 12V/24V output.
• Caution: This temperature controller provides direct output. Do not power it on if the load is not properly connected to the output terminals to prevent sparks caused by contact between the two terminals.

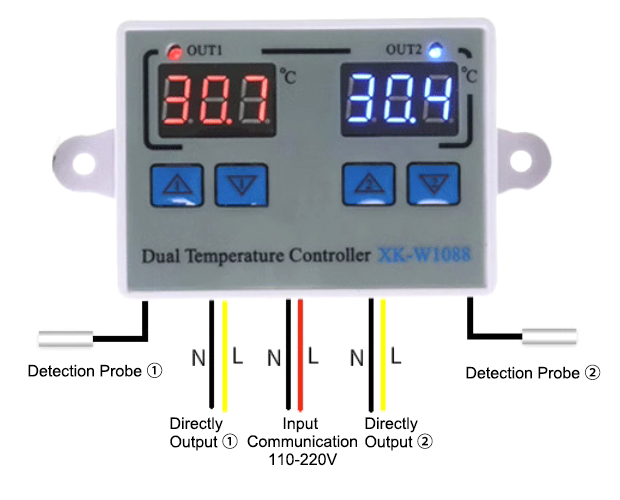

220V

Tips: Temperature controller relay output vs SSR drive output

Relay output and SSR drive output each have their own advantages, and the better choice depends on the application requirements. Relay output temperature controllers are suitable for low-frequency switching loads and can directly control heaters, fans, or other devices with higher current capacity. They are cost-effective and widely used in general temperature control applications. SSR drive output temperature controllers are designed to work with solid state relays, offering faster response speed, silent operation, and longer service life due to no mechanical contact wear. They are ideal for high-frequency switching, precise temperature control, and applications requiring stable long-term operation. For basic temperature control, relay output is usually sufficient, while SSR drive output is better for high-precision and continuous industrial control systems.
