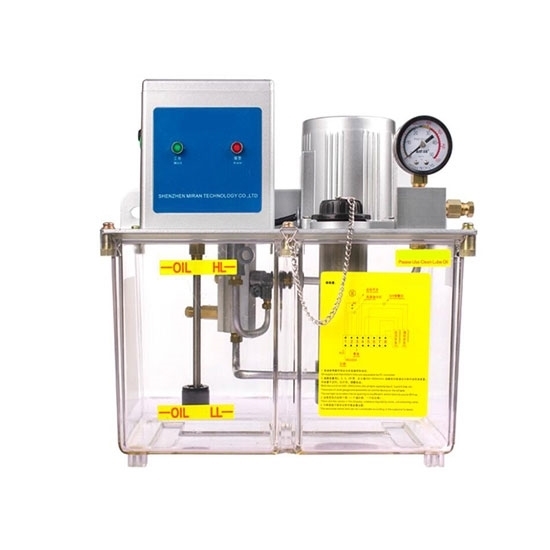

    Automatic Oil and Grease Lubrication Pump

    $230.59
    Industrial oil and grease lubrication pump, 2L/ 3L/ 4L, discharge capacity 200~300 ml/min, equipped with induction motor, single phase or three phase, selectable motor voltage 110V/220V/380V AC, 24V DC, alarm output 24V/220V DC. It is an automatic lubrication system for mechanical equipment.
    SKU: ATO-OGLP-MRG
    *
    *
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Automatic oil and grease lubrication pump is an electric pump equipped with induction motor, which can be used in the centralized lubrication system of light industry, forging automation and other mechanical equipment.

    Specification

    Model ATO-OGLP-MRG
    Operating Mode Semi-automatic (without dual-timer module)
    Full-automatic (with dual-timer with digital display and press buttons)
    Distributor Resistance Distributor (without pressure take-off mechanism)
    Volumetric Distributor (Built-in pressure take-off mechanism)
    Oil Tank Capacity 3L/ 4L/ 5L
    Motor Induction Motor (Asynchronous Motor)
    Number of Motor Poles 2P
    Motor Voltage 1 Phase 110V AC, 1 Phase 220V AC, 3 Phase 220V AC, 3 Phase 380V AC, 24V DC
    Motor Power 25W
    Frequency 50/60Hz
    Rated Rotary Speed 1350 rpm
    Current 0.22A
    Level Pressure Alarm Output 24V DC/ 220V DC
    Rated Pressure 20 kgf/cm2
    Max Pressure 35 kgf/cm2
    Discharge Capacity 200~300ml/min
    Oil Viscosity 30# Thin Oil ~ 00# Grease
    Weight 4/ 4.5/ 6 kg

    Dimensions (Units: mm)

    3L Oil and Grease Lubrication Pump

    Dimensions of 3L Automatic Oil and Grease Lubrication Pump with Motor

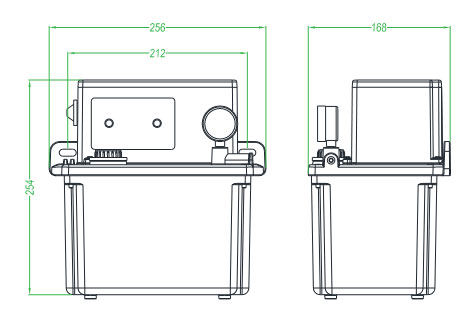

    4L Oil and Grease Lubrication Pump

    Dimensions of 4L Automatic Oil and Grease Lubrication Pump with Motor

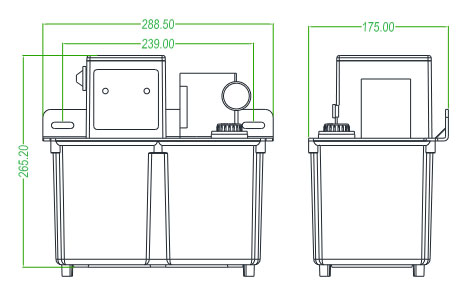

    5L Oil and Grease Lubrication Pump

    Dimensions of 5L Automatic Oil and Grease Lubrication Pump with Motor

    Tips: What is an automatic oil and grease lubrication pump?

    Automatic oil and grease lubrication pump is an electric pump providing lubrication for the industrial equipment. Lubrication is a very important factor for the oil pump, which often determines the quality of oil delivery. Because only the pipeline is sufficiently lubricated can ensure the smooth transportation of the oil. In addition, the oil has a certain viscosity and is easy to stick to the pipe wall, causing losses and even impeding the transportation of the oil. Automatic electric lube pump is to lubricate the pipe wall, and strive to maintain the normal transportation of oil. The working principle of the full-automatic electric lubrication pump is to avoid the oil staying in the pipe wall through vacuum operation. Under the condition of ensuring the sealing of the pipe, the pumping operation begins, so that the oil will be smoothly transported. If the oil is transported in the process of mixing air or lubrication effect decreases, then it will automatically adjust the pressure to help the pipe in a vacuum to maintain lubrication.
