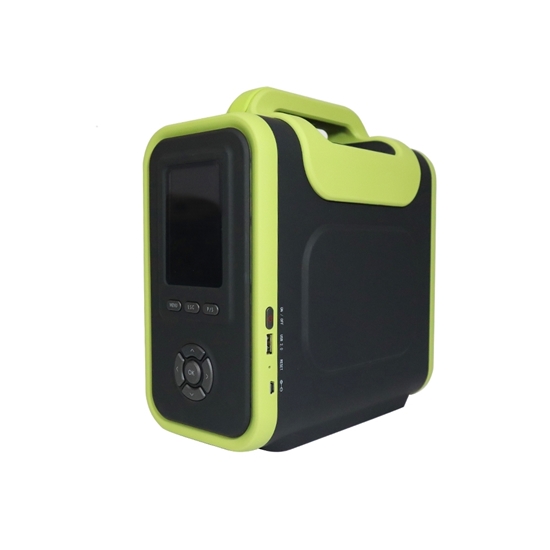

Portable Multi Gas Analyzer, NO2, SO2, CO, O3

5 out of 5 based on 4 reviews | Write a review

$6,753.85

High accuracy multi gas analyzer can detect 4 gases of NO2 ( 0-10 ppm), SO2 (0-10 ppm), CO (0-20 ppm), O3 (0-10 ppm), high definition LCD display to show the measurement data, large capacity rechargeable Li-battery for long working time, compact and light design, portable and easy operation.

SKU: GD600-4GAS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Features

Using world top brand sensors, to guarantee the test results reliable and accurate.
Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection.
Multi-display mode is switchable.
Various gas concentration units can be shifted freely.
Modular internal structure (can be customized for 1-18 gases detection)
With an indepedent SD memory card, can view and delet the historical detection data.
High capacity rechargeable lithium polymer battery, long operation time and standby time
3.5-inch hd LCD screen and 120 degree wide view, beautiful and useful menu interface

Specification

Model	GD600-4GAS
Sampling Method	Pumping suction, 10 grades adjustable, flow rate range 0-500 mL/min.
Detection Principle	Electrochemistry
Detecting Gas *	NO2, SO2, CO, O3
Measure Range	NO2: 0 to 10 ppm, SO2: 0 to 10 ppm, CO: 0 to 20 ppm, O3: 0 to 10 ppm
Resolution	NO2: 0.001ppm, SO2: 0.001ppm, CO: 0.001ppm, O3: 0.001ppm
Accuracy	≤±2% F.S.
Data Storage	8G SD memory card
Alarm	Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Display	3.5 inch hd LCD display with resolution 320*480
Language	Chinese/English
Battery	Large capacity rechargeable lithium battery
Explosion-proof Grade	Ex ia llC T4
Protection Grade	IP65
Certification	CE, ATEX
Operating Temperature	-40℃~70℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	260230120mm
Weight	3700g
Standard Accessories	User manual, Micro-USB cable, Water vapour smoke filter, Intake sampling rod, 600mm tube, Carrying case
Optional Accessories *	Printer (built-in printer or external bluetooth printer), Pressure sensor, High temperature gun

Note:

* For the detected gas, it can be customized. This multi-gas analyzer can detect up to 18 gases simultaneously, such as combustible gas, O2, CO2, H2S, NH3, NO, VOC, and so on. If you have any requirements about the detectied gases and measuring range, please feel free to contact us.
* For the optional accessories, please contact us if you need it.

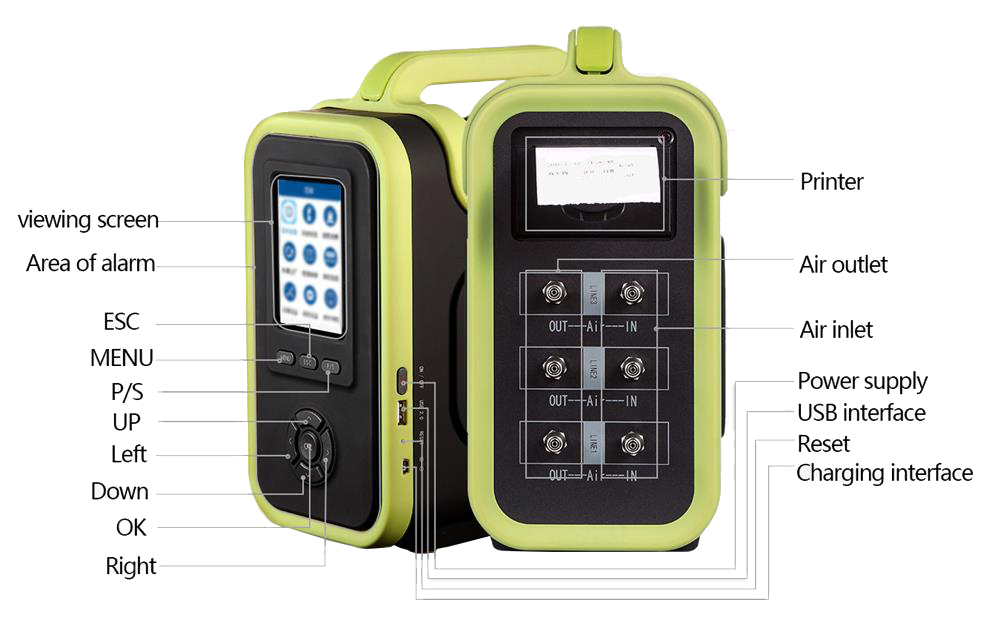

Details

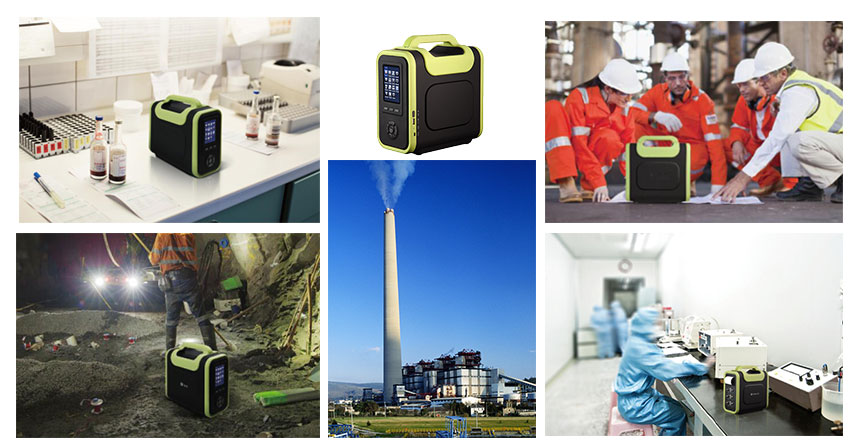

Applications

Portable gas analyzer can be widely used in the university laboratory, research institute, large oil refinery, metallurgical plant, inspectation and quarantine bureau, hospital, mines, tunnel engineeringsite, etc.

Viewing and Exporting Multi-Gas Analyzer Data Tutorial

Shows you how to view historical data from a multi-gas analyzer and export the data to your computer.

Gas Analyzer Calibration and Parameter Setting Guide

Demonstrates how to perform zero calibration, set alarm parameters, and change units.

Simple Testing with Multi-Gas Leak Analyzer

This universal gas analyzer is simple to use and it really does allow you to check for gas leaks around your site. Complete with flexible tubing and probes, this device will help you determine where a gas leak may be coming from.

Portable Oxygen Gas Detector with PC Interface

The Smart Handheld Gas Detector from ATO is designed to detect oxygen in a range from 0% to 30%. In this video, ATO will show you that the detector uses a micro sampling pump to draw in the measured gas with the max flow rate up to 1L/min. The LED display provides simultaneous pickup of gas variety, density units, the maximum value, local time and atmospheric temperature, etc.

Existing reviews of Portable Multi Gas Analyzer, NO2, SO2, CO, O3

What temperature can the detectors operate up to?

Sorry for the delay in getting back to you. The H2O comment was in the context of water vapor, but it is not critical.
N2 is also not critical, we would however be interested in SO2 in the range of (0-200ppm). Let me know if a CO2: 0-100%VOL, CO: 0-200ppm, NO2: 0-200ppm, SO2: 0-200ppm setup would be possible.
The detector would be used indoors and would be connected to inlet and outlet piping. The humidity will be low and temperatures and pressures are close to ambient.
Flow rates through the pipeline will be in the range of 0 to 300L/min, however, we’re imagining the detectors would sit on a bypass line where the flow rate could be significantly reduced.
We would be interested to know what temperature the detectors can operate up to.

From: abner | Date: 19/07/2023

Was this review helpful? Yes No (0/0)

ATO Responded

1. Yes, our multi-gas detector can set CO2: 0-100%VOL, CO: 0-200ppm, NO2: 0-200ppm, SO2: 0-200ppm.
Are you asking for a portable or fixed gas detector?
2. If the flow rate of the pipeline will be in the range of 0 to 300L/min, you need to control the gas flow in the bypass at a pressure of 1 bar and a flow rate of 750mL/min before using our gas detector.

How long does it take to get to your O3 gas detector to be in full charge?

How long does it take to get to your O3 gas detector to be in full charge?

From: Kaleb | Date: 14/12/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Charging time is 5-6 hours to be fully charged.

Does ATO provide fixed gas detectors?

Do you provide a fixed gas detector to measure hydrocarbon gases (petroleum products)?

From: Jon | Date: 02/11/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, you can use our fixed combustible gas detector, 0 to 100%LEL.

Looking for the multi gas analyzer to measure CO2, N2O, NH3 and CH4.

I'm looking for the multi gas analyzer to measure CO2, N2O, NH3 and CH4 gases. Do you have it?

From: David | Date: 16/07/2020

Was this review helpful? Yes No (0/0)

ATO Responded

We proivde multi-gas detector, but unfortunately, our gas detector do Not measure N2O gas.
