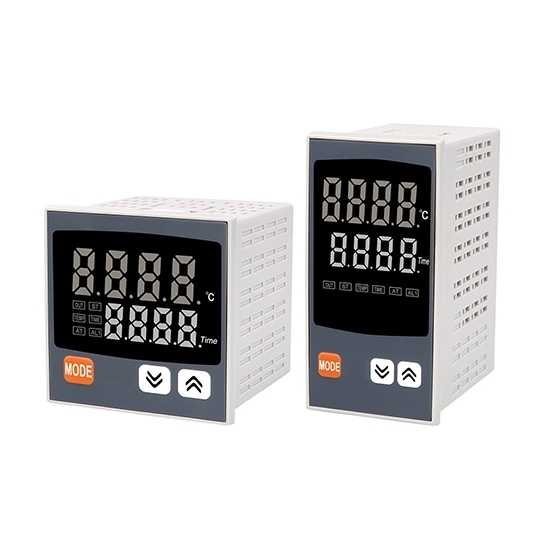

Digital Temperature Controller with Timer, AC100-240V

Write a review

$99.69

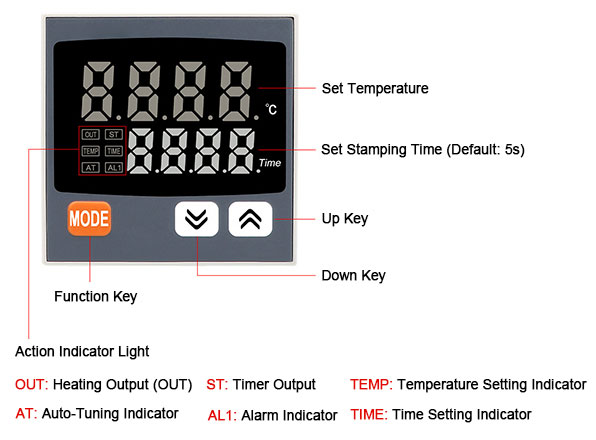

Digital temperature controller with timer, powered by AC100–240V wide range input. Features a dual-line 7-segment LED display for real-time temperature and time monitoring, and supports relay, SSR outputs for strong compatibility. Built with PID intelligent control and anti-interference design for stable and precise operation. Compact and easy to install, ideal for industrial temperature and timing control applications.

Dimension *
Control Output Type *

SKU: ATO-TEMPC-TCT

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Temperature and timing controller for efficient automation. PID control ensures stable and accurate operation even in harsh environments. Compact design with multiple output options for easy system integration, suitable for industrial applications. Upgrade your process control with reliable precision and improve overall production efficiency today.

Specification

Model		ATO-BEM-TCT-4A-KR	ATO-BEM-TCT-4A-KV	ATO-BEM-TCT-7A-KR	ATO-BEM-TCT-7A-KV
Control Output Type*		Relay	SSR	Relay	SSR
Power Supply Voltage	AC Type	100–240VDC 50/60Hz
	AC/DC Type	24VAC 50/60 Hz, 24–48VDC
Permissible Voltage Range		90%–110% of the rated voltage
Power consumption		≤5VA (100–240VAC, 50/60Hz; 24VAC, 50/60Hz)
		≤3W (24–48VDC)
Input type	RTD	DPt100Ω, Cu50Ω (maximum lead wire resistance: 5Ω per wire)
	Thermocouple	K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)

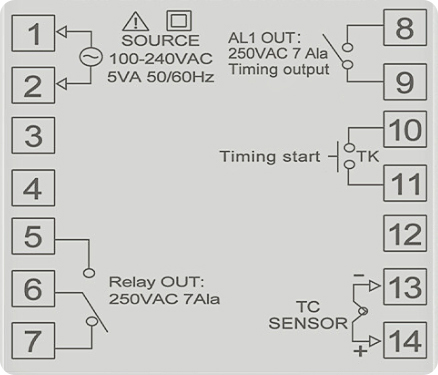

Control Output	Relay	250VAC 5A

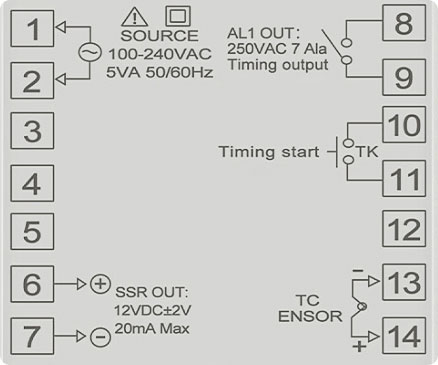

	SSR	12VDC ±2V, ≤20mA
Relay Life	Mechanical	OUT: ≥5M cycles; AL1/AL2: ≥5M cycles
	Electrical	OUT: ≥200K operations (250VDC 3A resistive); AL1/AL2: ≥300K operations (250VAC 1A resistive)
Alarm Output		AL1/AL2 relay output: 250VAC, 5A
Control Mode		ON/OFF, P, PI, PD, PID control
Control Accuracy		1–100℃/0.1–50℃
Time Range		0–9999 (s / 0.1s / min / 0.1min adjustable)
Maximum Temperature		0–9999℃
Control Cycle (T)		0.5–120 s
Sampling Period		100ms
Insulation Resistance		≥100MΩ (at 500VDC)
Noise Immunity		Square-wave interference (1μs pulse width), ±2kV (R/S phase)
Memory Retention		Approx. 10 years (non-volatile semiconductor memory)
Ambient Temperature		-10–50°C (no icing)
Insulation Type		Double or reinforced insulation

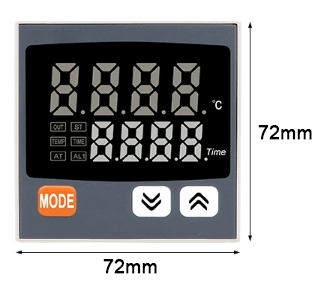

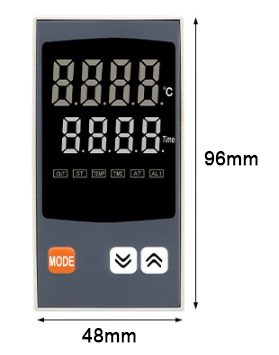

Dimension*		96mm48mm74.6mm		72mm72mm75.7mm
Weight		182g	177g	185g	180g

Feature

Dual Function Temperature & Timer Controller: Integrates temperature control and timing in one compact unit for industrial automation.
Universal Sensor Input: Compatible with RTD (Pt100, Cu50) and thermocouples (K, J, T, R, S types).
Wide Power Supply Range: Digital temperature controller with timer supports AC 100–240V and AC/DC 24V for flexible installation.
Flexible Output Options: Relay (250VAC 5A) and SSR drive (12V DC) for different control requirements.
Advanced PID Control System: Digital temperature controller supports ON/OFF, P, PI, PD, and PID modes for stable and accurate regulation.
Fast Response Performance: 100ms sampling period ensures real-time monitoring and precise control.
Strong Anti-Interference Design: Reliable operation under electrical noise with ±2kV surge protection.
Wide Operating Environment: The temperature controller works in -10 to 50°C with reinforced insulation for industrial safety and stability.
