    What is a Wedge Gate Valve?

    A wedge gate valve is a type of industrial valve used to control the flow of fluids (such as liquids or gases) in a pipeline. It is named after the shape of the internal gate mechanism, which resembles a wedge. These valves are commonly used in a wide range of industries, including oil and gas, water treatment, petrochemical, and more, due to their ability to provide tight shut-off and reliable flow control.

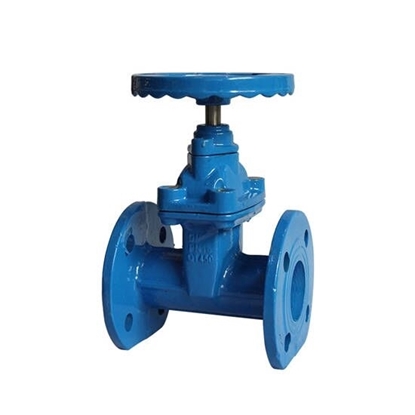

    Resilient wedge gate valve

    Here are some key features and characteristics of wedge gate valves:

    Design

    • The design of a wedge gate valve consists of a gate or disc that is typically wedge-shaped, with a sloping edge on one or both sides.
    • The gate is positioned between two parallel seats within the valve body. When the gate is raised, it creates an unobstructed pathway for fluid flow, and when it's lowered, it blocks the flow.

    Bidirectional Flow

    Wedge gate valves are specifically designed to handle bidirectional flow, meaning they can effectively control the flow of fluids regardless of the direction in which they are flowing through the pipeline.

    Sealing

    • The sealing mechanism in a wedge gate valve relies on the close contact between the gate and the seats.
    • When the valve is fully closed, the wedge-shaped gate is pressed tightly against the seats, providing a reliable and tight seal that prevents any fluid from passing through.

    Materials

    • Resilient wedge gate valves¬†are available in a wide range of materials, including but not limited to cast iron, ductile iron, carbon steel, stainless steel, and exotic alloys like bronze or titanium.
    • The choice of material depends on the specific application, the type of fluid being transported, and the environmental conditions.

    Actuation

    Wedge gate valves can be operated manually or automatically:

    • Manual operation is typically achieved using a handwheel that rotates to raise or lower the gate.
    • Automatic operation involves the use of actuators such as pneumatic, electric, or hydraulic devices to control the gate remotely.

    Applications

    Resilient wedge gate valves are commonly used in a variety of applications, including

    • Oil and gas pipelines for isolation and control.
    • Water treatment plants for regulating water flow.
    • Petrochemical and chemical industries for controlling the flow of various chemicals.
    • Power generation plants for managing steam and cooling water systems.
    • General industrial processes where on/off flow control is required.

    The following are some application scenarios:

    Wedge gate valve applications

    Maintenance

    • Maintenance of wedge gate valves involves:
    • Regular inspection of the gate and seats for signs of wear or damage.
    • Lubrication of moving parts to ensure smooth operation.
    • Replacing worn seals or gaskets to maintain a reliable seal.
    • Periodic testing to verify proper functionality.

    Size Range

    Wedge gate valves are available in a wide range of sizes to accommodate different pipe diameters and flow rates, from small valves suitable for residential plumbing to large valves used in industrial applications.

    Pressure Ratings

    These valves come in various pressure ratings to handle different operating pressures, ranging from low-pressure applications to high-pressure environments.

    Advantages

    • Some key advantages of wedge gate valves include:
    • Excellent sealing capabilities for leak-tight shut-off.
    • Durability and reliability in various industrial settings.
    • Suitability for high-pressure applications due to their robust construction.

    Wedge gate valve is a kind of gate valve. It's an essential component in many industrial processes and pipeline systems, offering reliable flow control and leak-tight shut-off when needed. They are available in various sizes and materials to meet the specific requirements of different applications.
