    What is the Working Principle of a Planetary Gear Motor?

    A planetary gear motor is a kind of motor that utilizes a planetary gear mechanism to realize transmission and conversion. Its working principle is to convert the rotary motion of the motor into the rotary motion of the planetary frame through the planetary gear mechanism, and at the same time realize the distribution and transmission of power. Planetary gear motor has the advantages of compact structure, high transmission efficiency, good stability, etc., widely used in various industrial fields.

    Structural Characteristics

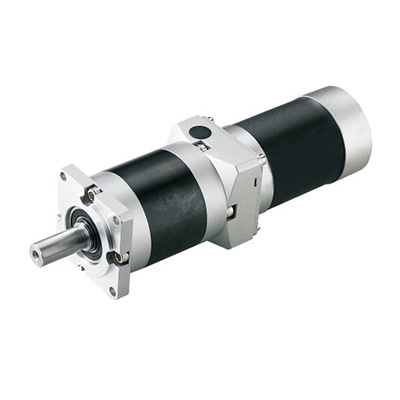

    A planetary gear motor is mainly composed of three parts: motor, planetary gear mechanism, and control system. Among them, the planetary gear mechanism is the core part, which is composed of a planetary frame sun wheel, and gears. The planetary carrier is connected to the motor to realize the rotary motion of the motor; the sun wheel is coaxial with the planetary carrier, which converts the rotary motion of the planetary carrier into the rotary motion of the sun wheel; and the toothed ring converts the rotary motion of the sun wheel into the rotary motion of the output shaft. The planetary gear mechanism has unique motion characteristics and deceleration capability and can realize a high deceleration ratio and high torque output.DC planetary gear motor

    The working principle of a planetary gear motor

    1. Coaxiality of input and output shafts: The input and output shafts of a planetary gear motor are located on the same axis, which makes the motor compact and easy to install and maintain.
    2. Rotation of planetary gears: Planetary gear motors contain several planetary gears that rotate around a center wheel to achieve reduction. The number of planetary gears determines the reduction ratio and output torque.
    3. Rotation and revolution of planetary wheels: planetary wheels rotate around their axis to realize rotation; on the other hand, they rotate around the axis of the center wheel to realize revolution. This combination of rotation and revolution enables the planetary gear motor to realize the effect of a high reduction ratio and high torque output.
    4. Variable speed and direction: By changing the speed or direction of the input shaft, the output speed and direction of the planetary gear motor can be changed. This gives the planetary gear motor a wide range of applicability to meet the needs of different applications.

    The planetary gear is a rotating gear mechanism, which is characterized by the three main components of the center wheel, ring, and sun wheel. The planetary wheel can rotate freely around its axis, and at the same time, it can rotate around the axis of the center wheel. The following are planetary gear working characteristics.

    Motor drive: The planetary gear motor is driven by a motor, usually a DC motor or a stepper motor. The motor's rotary motion is transmitted to the planetary gear through the transmission device, which drives the whole planetary gear system.

    Planetary Wheel Motion: When the motor drives the planetary gear system, the planetary wheel rotates around its axis on the one hand and rotates around the axis of the center wheel with the rotation of the center wheel on the other hand. This kind of movement makes the trajectory of the planetary wheel in the shape of a planet, so it is named planetary gear.

    Deceleration: One of the main functions of a planetary gear motor is deceleration. As the planetary wheel rotates around the center wheel, it also rotates. Therefore, it can reduce the rotational speed and realize the deceleration effect. This deceleration effect makes the motor output a larger torque at a lower speed, which is very suitable for occasions requiring large torque.

    Stable output: The output of a planetary gear motor is a stable rotary motion, and the output speed and torque are relatively stable. Because the planetary wheel is always constrained by the center wheel and gear ring in the process of movement, its trajectory is relatively fixed, thus ensuring the stability of the output. In summary, the working principle of a planetary gear motor mainly involves the structure of planetary gears, the drive of the motor, the movement of planetary wheels, deceleration, and stabilization of output. These principles make planetary gear motors widely used in many fields, such as robotics, automation equipment, CNC machine tools, and so on.
