    How to Wire and Test Pure Sine Wave Power Inverter?

    The inverter converts DC power (battery, storage battery) into AC power (usually 220V 50Hz sine or square wave). In general, an inverter is an electronic device that converts low voltage (12, 24, 48 volts, etc.) DC power into 220V AC (or other voltages) power. It consists of an inverter bridge, control logic and filter circuit.

    In daily life, 220 volt alternating current is usually rectified into direct current for use, and the inverter is the opposite. We are in an era of "mobile", mobile office, mobile communication, mobile leisure and mobile entertainment. In the mobile living state, not only the low voltage direct current supplied by the battery or the battery is required, but also the alternating current which is indispensable in the daily environment. The power inverter is to meet our needs.

    Pure sine wave power inverter in ATO online shop is a DC to AC transformer that can output power from 300 watts to 6000 watts continuously. The DC to AC Power Inverter provides your equipment with full safety protection from over voltage, under voltage, overload, short circuit (reverse polarity connection), overheating and fuses and smart cooling fans. Next, let's do a test of the 1000W pure sine power inverter.

    The specifications of the power inverter used for testing are as follows:

    • Rated Power: 1000W
    • Output Wave: Pure sine wave
    • Input Voltage: 24V DC
    • Output Voltage: 220V AC

    It has two cooling fans on the input side and an aluminum cooling case. There are two 220V universal 3-hole sockets and one 5V 1A USB DC jack on the output side.Pure Sine Wave Power Inverter Testing

    The first is wiring. Connect the power cable of the inverter input terminal.

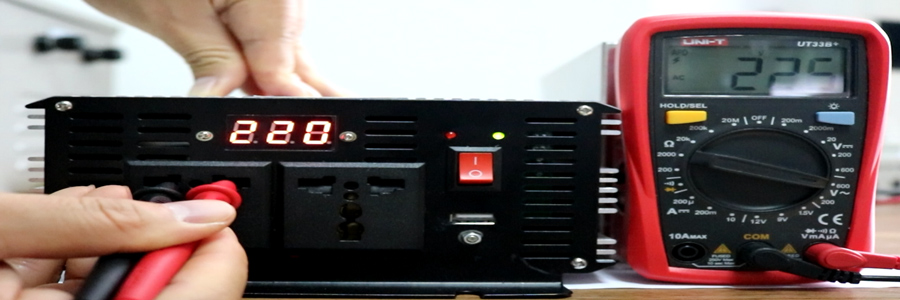

    Next, turn on the inverter switch. The LED cycle shows the current input voltage, output frequency and output voltage. The LED light above the switch is on when it is running normally. The measurement shows that the current output voltage value is normal.

    Pure Sine Wave Power Inverter Testing

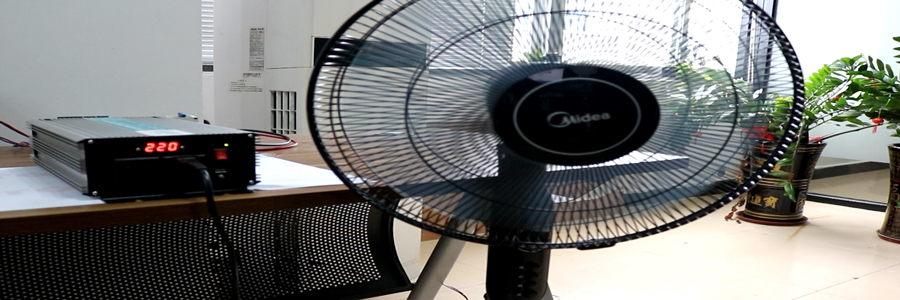

    Enter the test. Plug a 220V AC 60W electric fan into the inverter output. Turn on the power of the electric fan, and the fan rotates normally.

    Pure Sine Wave Power Inverter Testing

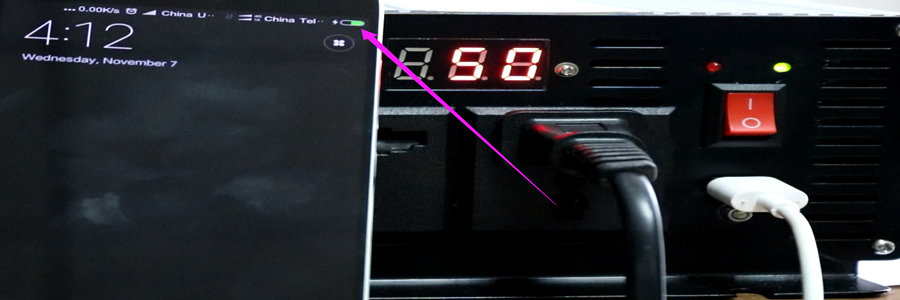

    Finally, test its USB function. Plug the USB to type-C power cable into the USB port and connect the phone. You can clearly see that the phone is charging normally.

    Pure Sine Wave Power Inverter Testing

    You can watch the video below to know more details about how to wire and test a power inverter.
