Small Laser Distance Sensor, 10m-100m

Small laser distance sensor features a compact design with stable performance. The small structure allows easy installation in limited spaces, while reliable laser technology ensures consistent distance detection. Ideal for applications such as positioning, monitoring, and distance measurement in industrial environments.

Specification

Feature

• Wide Measurement Range: Small laser distance sensor provides a wide measurement range from 0.03 m to 100 m, suitable for both short-range precision tasks and longer-distance applications.
• Stable Measurement Accuracy: Delivers ±3 mm accuracy, supporting reliable distance data for positioning and automation systems.
• Multiple Communication Interfaces: The laser range sensor supports RS485, RS232, and TTL, allowing convenient integration with different controllers and industrial devices.
• Class II Laser Design: Uses a Class II laser, providing effective distance measurement while meeting common safety standards.
• Compact Structure: The compact laser rangefinder sensor features a compact form factor, simplifying installation in space-limited equipment and embedded systems.
• Basic Environmental Protection: IP54 rating helps protect the sensor from dust and splashing water in typical industrial environments.
• Industrial Operating Temperature: The small laser sensor operates reliably within a 0–40 °C temperature range.

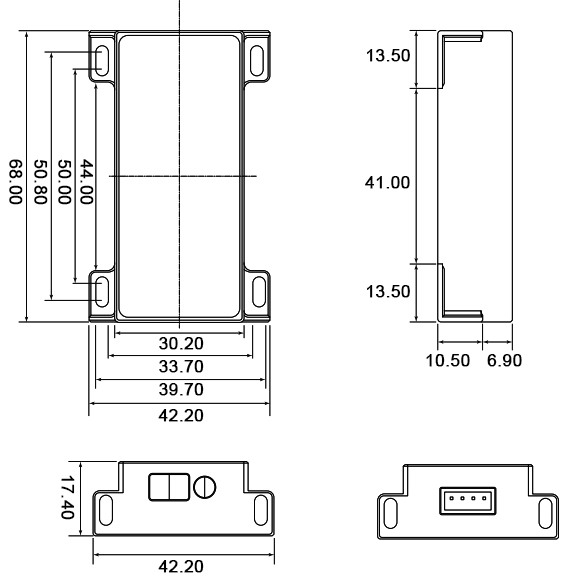

Size (unit: mm)

Application

Tips: How to choose the appropriate communication interface for the small laser distance sensor?

The small laser distance sensor offers TTL, RS232, and RS485 communication interfaces to meet different system requirements. TTL are typically used for short-distance communication with microcontrollers or embedded systems due to simple wiring and quick response. RS232 is suitable for direct point-to-point communication with computers or serial devices. For industrial environments or applications requiring longer cable distances, RS485 is often preferred because it provides stronger noise immunity and more stable signal transmission. These interface options make the laser distance sensor easier to integrate into various control and automation systems.
