    What is a Digital Panel Meter?

    Digital panel meters, often referred to as DPMs, are electronic devices used to measure and display various electrical or physical parameters on a digital screen. These meters are commonly found on control panels, instrumentation panels, and in various industrial, commercial, and scientific applications. Digital panel meters offer several advantages over traditional analog meters, such as improved accuracy, readability, and the ability to easily interface with digital control systems.

    Digital panel meter applications

    Key Features

    Digital panel meters are equipped with a digital screen that presents a numerical readout of the measured parameter, offering enhanced readability and interpretation compared to analog needle-based meters. Their versatility extends to the measurement of a broad spectrum of parameters, encompassing voltage, current, resistance, temperature, frequency, pressure, flow, and more. Some DPMs specialize in specific parameters, while others provide more general measurement capabilities.

    Renowned for their high accuracy and precision, digital meters deliver reliable and consistent readings, making them well-suited for applications where precision is paramount. Furthermore, many DPMs can undergo calibration or adjustments to maintain accuracy over time, ensuring continued reliability.

    DPMs offer customization options, allowing users to tailor display units, scaling, and other settings to align with the specific requirements of their applications. Some models accept both analog and digital input signals, ensuring compatibility with a diverse range of sensors and transducers.

    Advanced DPMs may include communication options such as RS-232, RS-485, or Ethernet, facilitating data logging and remote monitoring. Designed for easy panel mounting, DPMs seamlessly integrate into control panels and industrial equipment.

    Compact and space-efficient, DPMs are ideal for applications with limited panel space. They find diverse applications in industries such as manufacturing, energy, HVAC, automotive, and laboratory settings, where precise measurements and monitoring play a crucial role.

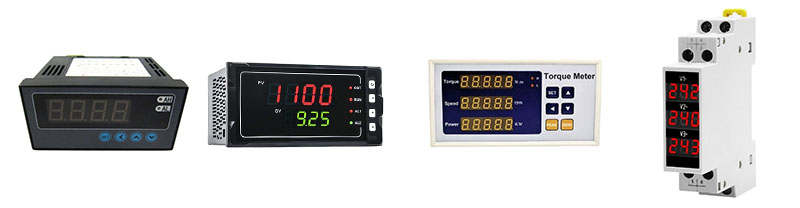

    Digital panel meters

    Instructions for Use

    Safety precautions: before starting any work, ensure that the circuit is powered off and safe to operate. If you are not familiar with the circuit, seek help from a qualified electrician or technician.

    Installation: install the DPM firmly on the control panel or in the designated position, ensuring that the power supply (voltage and current) is within the specified range mentioned in the meter's technical specifications.

    Power on: follow the manufacturer's instructions to connect the power supply to the DPM and start the DPM's power supply.

    Initial setup: if the DPM has adjustable Settings (scale, unit, or communication options), please refer to the user manual to configure as required. Verify that the meter is set to measure expected parameters (such as voltage, current, and temperature).

    Measurement: when powered on and configured, the DPM will display the measurement parameters on a digital screen. Read and interpret values to ensure that units of measurement are understood.

    Calibration (if required): for DPM that requires regular calibration, consult the user manual for instructions and calibration frequency. Use appropriate equipment or calibrate as recommended by the manufacturer.

    Data logging and communication (if applicable): if the DPM provides data logging or communication capabilities, configure and use them as required by the user manual or manufacturer's instructions.

    Maintenance: check the DPM regularly for signs of physical damage or wear. Keep the display clean and free of debris. Check for loose connections or wires.

    Troubleshooting: if performance issues occur, refer to the Troubleshooting section of the user manual for guidance. If the problem persists, contact the manufacturer's technical support or consult a qualified technician.

    Turn off the power: after using the DPM, turn off the power. Ensure that the DPM is disconnected from any live circuits before maintenance or further adjustments are made.

    Common Types

    Voltage meters: designed to measure the electrical potential difference between two points in a circuit, typically expressed in volts.

    Current meters: specifically calibrated to measure the flow of electric charge in a circuit, represented in amperes.

    Resistance meters: used to measure the resistance of a component in an electrical circuit, typically displayed in ohms.

    Temperature meters: equipped with sensors to measure temperature and display the results digitally, often in degrees Celsius or Fahrenheit.

    Frequency meters: designed to measure the frequency of an alternating current signal, typically expressed in hertz (Hz).

    Power meters: measure the electrical power consumed in a circuit, often providing readings in watts.

    Energy meters: calculate and display the total energy consumption over time, usually in kilowatt-hours.

    Flow meters: used in fluid systems to measure the rate of flow, commonly in liters per minute or gallons per hour.

    Pressure meters: gauge the pressure of gases or liquids in a system and display the readings digitally, often in pascals or psi.

    Process meters: versatile meters that can measure multiple parameters, such as voltage, current, resistance, and more, providing a comprehensive overview of a system.

    Digital multimeters (DMMs): a versatile tool that combines various measurement functions in one device, typically used for troubleshooting and general-purpose testing.

    Overall, digital panel meters have become an integral part of modern control and measurement systems, offering improved accuracy, ease of use, and flexibility in various industrial and scientific settings. offers high-quality digital panel meters, click to shop if you are interested.
