5kW Brushless DC Motor Kit, 48V/72V/96V, 16Nm

5 out of 5 based on 3 reviews | Write a review

$1,746.93

Buy 3 phase 5kW brushless DC motor and bldc controller for your electric car at lower cost. 48V bldc electric motor features 16 Nm high holding torque, peak torque up to 42 Nm, 3000 rpm rated speed, 72V/ 96V voltage is optional.

SKU: ATO-BLDC-5000R3

Voltage (DC) *
With Brake *
With Matched Controller *
With Planetary Gearbox *
Inline GearBox *
Right Angle Gearbox *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Relative Video
Documents

5kW 3-phase bldc motor kit operates at 48V/72V/96V DC voltage, maximum power to 12.6kW, rated speed of 3000 rpm and rated torque of 16Nm. It has higher start torque, smaller start-up current, lower noise, less vibration and longer working life advantages. Voltage, Brake, Matching Controller, Matching Gearbox options are available for your specific needs. Usually, ATO recommends buying a kit of 5000W BLDC motor.

FEATURES

High performance and low consumption.
5kW brushless dc motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
Wide application range and good control effect.
BLDC motor works with a matching controller (ATOTH-G) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
Wide control speed torque range.
Brushless dc motor works with a planetary gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
Low noise and smooth operation.
Brushless dc motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
Good protection performance and continuous duty (24/7).
5000W 48 volt BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

SPECIFICATION

Model	ATO-180WDM16030 (Click it to see more motor specs)
Matched Controller Model	ATOTH-G (Click it to see more controller specs)
Square Flange Size	180 mm
Phase	3 phase
Number of Pole	4 pairs of poles (8 poles)
Rated Voltage	48V DC	72V DC	96V DC
Rated Current	123 A	82 A	62 A
Rated Power	6.8 hp (5 kW)
Maximum Power	12.6 kW
Holding Torque	16 Nm
Peak Torque	42 Nm
Rated Speed	3000 rpm
Maximum Speed	3600 rpm
Efficiency	85%
Rotor Inertia	55 kgcm²
Electric Potential	13.3 V/K rpm	20 V/K rpm	26.7 V/K rpm
Brake Apparatus Voltage	24V DC, (If 24V voltage is not connected, the motor brake) Brake length: 40-50mm
Motor Lead Length by Default	30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
Warranty Time	12 months
Certificate	CE, ROHs, ISO/TS16949
Insulation Rank	F
Protection Rank	IP65
Temperature	0~50℃
Humidity	<90%RH (no dewing)
Motor Weight	18.6 kg
What Parameters of ATO BLDC motor Can Be Customized?
Power	Yes
Voltage	Yes
Speed	Yes
Shaft	Yes
Motor Length	Yes
Motor Lead	Yes

BLDC MOTOR LINE DEFINITION

Power Wire		Power Line Color		Red		Yellow		Blue
		Motor Winding		U		V		W

Feedback Wire

Hall Line Color

Orange and Black

Orange

Yellow

Blue

Green

Hall Signal Definition

Hall A

Hall B

Hall C

Plug serial number

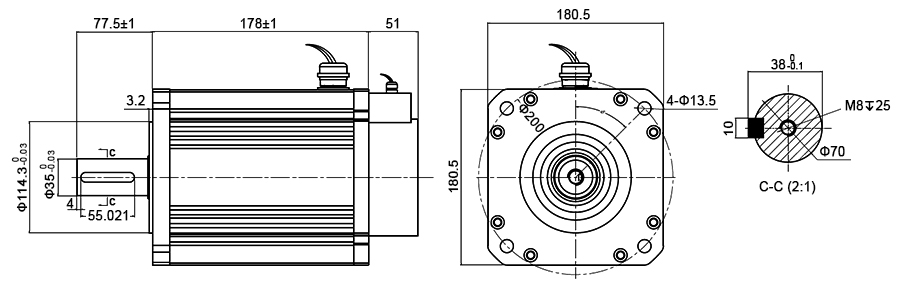

MOTOR DIMENSION (Unit=mm)

5kw 3000rpm bldc motor size

LA: 205mm, LB: 235mm (for 48V and 72V version), 255mm (for 96V version)

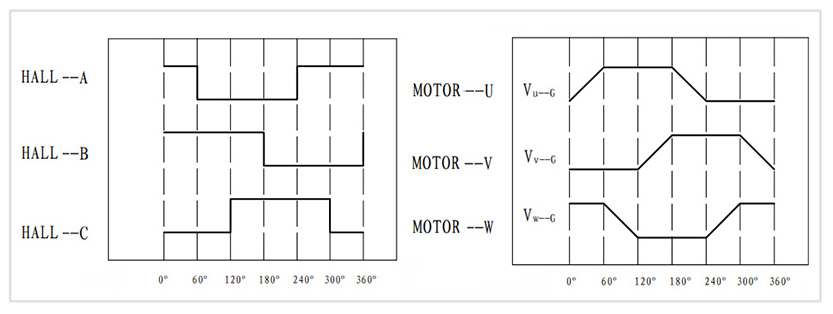

MOTOR AND HAll RELATIONSHIP

BLDC motor and hall relationship

TIPS: Application of 5kW brushless DC motor

5kW BLDC motor with 16Nm torque is absolutely powerful, which can be used for industrial machinery, boat, car, traction motor, pump, bus A/C systems, etc. It features the advantages of brushless DC motors: low electromagnetic influence, low noise, high efficiency, long lifetime, no spark during running and smooth operation. Technique development, like advance in new high-performance permanent magnet materials technology, semiconductor devices and ICs, which have urged the revolution of brushless DC motors. As the energy-saving and speed-regulating control requirements becoming more and more important, high-efficiency BLDC motor has become a priority choice for customer.

Wiring ATO High Torque BLDC Motor With Controller

In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

How to Make Your BLDC Motor Forward and Reverse Control

If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.

1. Controller User Manual.pdf

2. BLDC Motor Wiring Instruction.pdf

3. ATO BLDC Motors Catalog.pdf

ATO High Torque BLDC Motor Drawings & Price List

Note:

1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

Model	Motor Price	Controller Price	Rated Power	Rated Speed	Rated Torque	Rotor Inertia	Motor Weight
	(USD/Piece)	(USD/Piece)	(kW)	(RPM)	(Nm)	(Kgcm²)	(Kg)
80mm Series DC Brushless Motor
ATO-80WDM01330 24/48/72/96V	24V: 458.24	395.52	0.41	3000	1.3	0.6	2.4
	48V: 305.49
	72/96V: 580.43
ATO-80WDM02420 24/48/72/96V	24V: 564.53	395.52	0.5	2000	2.4	0.8	3
	48V: 376.35
	72/96V: 715.06
ATO-80WDM02430 24/48/72/96V	24V: 529.16	395.52	0.75	3000	2.4	0.8	3
	48V: 352.77
	72/96V: 670.26
ATO-80WDM03320 24/48/72/96V	24V: 597.68	395.52	0.69	2000	3.3	1.1	3
	48V: 398.45
	72/96V: 757.36
ATO-80WDM03330 24/48/72/96V	24V: 639.27	395.52	1.04	3000	3.3	1.1	3
	48V: 426.18
	72/96V: 809.74
110mm Series DC Brushless Motor
ATO-110WDM02020 24/48/72/96V	24V: 687.38	395.52	0.4	2000	2	3.3	3.2
	48V: 458.25
	72/96V: 824.85
ATO-110WDM02030 24/48/72/96V	24V: 745.11	395.52	0.6	3000	2	3.3	3.2
	48V: 496.74
	72/96V: 894.13
ATO-110WDM04010 24/48/72/96V	24V: 779.86	395.52	0.4	1000	4	6.5	5.65
	48V: 519.93
	72/96V: 935.87
ATO-110WDM04020 24/48/72/96V	24V: 788.57	395.52	0.8	2000	4	6.5	5.65
	48V: 525.71
	72/96V: 988.33
ATO-110WDM04030 24/48/72/96V	24V: 798.63	653.05	1.3	3000	4	6.5	5.65
	48V: 532.42
	72/96V: 1001.95
ATO-110WDM06010 24/48/72/96V	24V: 758.82	395.52	0.6	1000	6	10	6.6
	48V: 505.88
	72/96V: 956.69
ATO-110WDM06020 24/48/72/96V	24V: 819.59	653.05	1.3	2000	6	10	6.6
	48V: 546.39
	72/96V: 1010.82
ATO-110WDM06030 24/48/72/96V	24V: 995.94	653.05	1.9	3000	6	10	6.6
	48V: 553.28
	72/96V: 1051.23
130mm Series DC Brushless Motor
ATO-130WDM04010 24/48/72/96V	24V: 876.95	395.52	0.4	1000	4	10.4	6.7
	48V: 584.62
	72/96V: 1099.08
ATO-130WDM04020 24/48/72/96V	24V: 910.67	395.52	0.8	2000	4	10.4	6.7
	48V: 607.13
	72/96V: 1104.98
ATO-130WDM04030 24/48/72/96V	24V: 959.18	653.05	1.3	3000	4	10.4	6.7
	48V: 639.45
	72/96V: 1151.01
ATO-130WDM06010 24/48/72/96V	24V: 987.65	395.52	0.6	1000	6	12.4	7.7
	48V: 658.43
	72/96V: 1185.17
ATO-130WDM06020 24/48/72/96V	24V: 1012.23	653.05	1.3	2000	6	12.4	7.7
	48V: 674.82
	72/96V: 1147.19
ATO-130WDM06030 24/48/72/96V	24V: 1047.72	653.05	1.9	3000	6	12.4	7.7
	48V: 698.48
	72/96V: 1208.34
ATO-130WDM07710 24/48/72/96V	24V: 1060.07	395.52	0.8	1000	7.7	15.8	9.05
	48V: 706.71
	72/96V: 1257.94
ATO-130WDM07720 24/48/72/96V	24V: 1093.21	653.05	1.6	2000	7.7	15.8	9.05
	48V: 738.65
	72/96V: 1292.64
ATO-130WDM07730 48/72/96V	48V: 751.52	653.05	2.3	3000	7.7	15.8	9.05
	72/96V: 1337.71
ATO-130WDM10010 24/48/72/96V	24V: 1161.55	653.05	1	1000	10	21.4	12
	48V: 784.83
	72/96V: 1396.89
ATO-130WDM10020 24/48/72/96V	24V: 1224.36	653.05	2	2000	10	21.4	12
	48V: 816.24
	72/96V: 1371.28
ATO-130WDM10030 48/72/96V	48V: 879.12	898.21	3.1	3000	10	21.4	12
	72/96V: 1450.55
ATO-130WDM15010 24/48/72/96V	24V:1311.88	653.05	1.6	1000	15	32.4	12
	48V: 936.47
	72/96V: 1498.35
ATO-130WDM15020 48/72/96V	48V: 1086.36	898.21	3.1	2000	15	32.4	12
	72/96V: 1738.17
ATO-130WDM15030 48/72/96V	48V: 1127.54	1119.07	4.7	3000	15	32.4	12
	72/96V: 1804.64
180mm Series DC Brushless Motor
ATO-180WDM12010 48/72/96V	48V: 1246.31	653.05	1.3	1000	12	32.6	18.5
	72/96V: 1994.09
ATO-180WDM12020 48/72/96V	48V: 1323.69	653.05	2.5	2000	12	32.6	18.5
	72/96V: 2117.91
ATO-180WDM12030 48/72/96V	48V: 1398.84	898.21	3.8	3000	12	38	18.5
	72/96V: 2238.14
ATO-180WDM16010 48/72/96V	48V: 1555.69	653.05	1.7	1000	16	55	18.6
	72/96V: 2411.32
ATO-180WDM16020 48/72/96V	48V: 1625.36	898.21	3.4	2000	16	55	18.6
	72/96V: 2568.07
ATO-180WDM16030 48/72/96V	48V: 1745.93	1119.07	5	3000	16	55	18.6
	72/96V: 2618.89
ATO-180WDM25010 48/72/96V	48V: 2012.54	653.05	2.6	1000	25	55	26
	72/96V: 3179.81
ATO-180WDM25020 48/72/96V	48V: 2274.19	1119.07	5.2	2000	25	93	26
	72/96V: 3411.26
ATO-180WDM25030 48/72/96V	48V: 2448.58	1531.99	7.9	3000	25	93	26
	72/96V: 3672.87
ATO-180WDM36010 48/72/96V	48V: 2644.28	898.21	3.8	1000	36	148	30
	72/96V: 3966.42
ATO-180WDM36020 48/72/96V	48V: 2832.56	1119.07	7.5	2000	36	148	30
	72/96V: 4248.84
ATO-180WDM36030 72/96V	72/96V: 4334.69	1885.15	11.3	3000	36	148	30
ATO-180WDM50010 48/72/96V	48V: 3284.58	1119.07	5.2	1000	50	165	38
	72/96V: 4556.41
ATO-180WDM50020 48/72/96V	48V: 4344.12	1531.99	10.8	2000	50	165	38
	72/96V: 5994.72
ATO-180WDM50030 96V	96V: 6204.65	2261.84	15.7	3000	50	165	38
