    10kW High Torque Brushless DC Motor, 72V/96V, 50Nm

    5 out of 5 based on 4 reviews | Write a review
    $5,994.72
    50Nm high torque brushless DC motor, 3-phase 10kW electric BLDC motor matching with controller/ gearbox best for electric car, available 72 volt, 96 volt voltage for selection. 2000 rpm rated speed, high efficiency up to 85%.
    SKU: ATO-BLDC-10KR2
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    10kW high power BLDC motor for sales, 72V/96V DC working voltage, 50Nm high holding torque, peak torque up to 110Nm. 2000rpm, IP65 rating with shaft seal, brushless design for long life. Brushless dc motor kit (bldc motor with the controller and gearbox) offers a great combination of durability, efficiency, torque and speed at affordable price. In general, it would be more cost-effective to buy a complete set of our BLDC motors.

    FEATURES

    • High performance and low consumption.
      10kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
    • Wide application range and good control effect.
      BLDC motor works with a matching controller (ATOTH-G) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
    • Wide control speed torque range.
      Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
    • Low noise and smooth operation.
      Brushless dc motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
    • Good protection performance and continuous duty (24/7).
      10kW 72V/96V BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

    SPECIFICATION

    Model ATO-220WDM50020 (Click it to see more motor specs)
    Matched Controller Model ATOTH-G (Click it to see more controller specs)
    Square Flange Size 220 mm
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Rated Voltage 72V DC 96V DC
    Rated Current 163 A 122 A
    Rated Power 10 kW
    Maximum Power 26.2 kW
    Holding Torque 50 Nm
    Peak Torque 110 Nm
    Rated Speed 2000 rpm
    Maximum Speed 2400 rpm
    Efficiency 85%
    Rotor Inertia 335 x 10-4 kgcm2
    Electric Potential 20 V/K rpm 30 V/K rpm 40 V/K rpm
    Brake Apparatus Voltage 24V DC, (If 24V voltage is not connected, the motor brake)
    Brake length: 40-50mm
    Motor Lead Length by Default 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided.
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Insulation Rank F
    Protection Rank IP65
    Temperature 0~50℃
    Humidity <90%RH (no dewing)
    Motor Weight 70kg
    What Parameters of ATO BLDC motor Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    BLDC MOTOR LINE DEFINITION

    Power Wire Power Line Color Red Yellow Blue
    Motor Winding U V W
    Feedback Wire Hall Line Color Orange and Black Orange Yellow Blue Green
    Hall Signal Definition 5V 0V Hall A Hall B Hall C
    Plug Serial Number 1 2 3 4 5

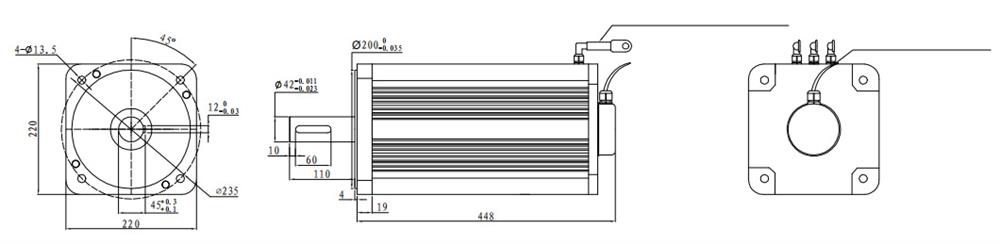

    MOTOR DIMENSION (Unit=mm)

    10kw 2000rpm bldc motor size

    MOTOR AND HAll RELATIONSHIP

    BLDC motor and hall relationship

    TIPS: More introduction about 10kW brushless DC motor

    10.5kW 2000rpm powerful brushless DC motor features high torque, compact shape, low load noise and long service life. With its high power, it can be applied in industrial machinery, boat, car, traction motor, pump, bus A/C systems, etc. As no brush in brushless DC motor, the friction is greatly reduced during running, and spark radio interference also decreased. Generally, brushless DC motors are high efficiency, no spark in running and smooth operation. What's more, 50Nm high torque brushless DC motor is long life, low maintenance cost. There are no brushes in BLDC which will wear out or break and need to be replaced, which makes the BLDC much longer service life and inexpensive.

    Wiring ATO High Torque BLDC Motor With Controller

    In this video, we will show you how to connect a ATO 400W-15kW 24V/48V/72V/96V high torque brushless DC motor with the matching controller.

    How to Make Your BLDC Motor Forward and Reverse Control

    If you want your electric car to be more powerful, try using ATO high torque BLDC motor kit as the power unit. It is a good idea. Refer to the video step by step to operate, you can achieve the forward and reverse control of the brushless DC motor.



    1. Controller User Manual.pdf

    2. BLDC Motor Wiring Instruction.pdf

    3. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38
    Existing reviews of 10kW High Torque Brushless DC Motor, 72V/96V, 50Nm
    I would like to purchase your 10kW 96V BLDC motor
    1. I would like to purchase your 10kW 96V BLDC motor, my main issue is that the high-power motors readily available are too loud, what is the noise level for yours?
    2. Do you provide customized the BLDC motor shaft?
    From: David Sonna | Date: 29/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The sound is very very low, it is below 55 decibels!
    2. Yes, We can customize motor shaft based on your needs. May you provide a hand made sketch showing shaft length, diameter, and keyway length/depth?
    Operating temperature of 10kW brushless DC motor
    Can I use your 10kW BLDC motor outside -20-30°С?
    From: Hertwig | Date: 19/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our (10KW 96V 2000rpm) can be used outside -20-30 ° С with no problem at all.
    Can ATO's brushless DC motors be customized?
    We require a 170 volt dc rating BLDC motor. My controller produces 170volts dc and requires a motor able to operate in that environment. Can you customize?
    From: Dekett | Date: 24/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can provide.
    High quality 10kW high torque brushless DC motor
    Is this motor able to operate at 30RPM and higher for more than an hour? RPM has to be smooth and pretty stable. ——10kW high torque brushless DC motor
    From: Tabyrinth | Date: 03/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, this brushless motor cannot run at low speeds of 30 rpm for a long time, it should be more than 500rpm to get such required smooth and stability. But you can add a gearbox to get a 30 rpm speed operation for a long time and maintain required smooth operation and stability as well.
