Electromagnetic Brake and Clutch Price List
Electromagnetic clutch is an electromagnetic machine that uses the principle of electromagnetic induction and the friction between internal and external friction plates to make two rotating parts in a mechanical transmission system. The driving part can be combined with or separated from it without stopping the rotation of the driving part. A connector is a self-executing appliance. The electromagnetic clutch can be used to control the starting, reverse, speed regulation and braking of machinery. It has a simple structure, fast action, small control energy, and is convenient for remote control. Although small in size, it can transmit large torque. When used as brake control, it has the advantages of rapid and smooth braking, so the electromagnetic clutch is widely used. It is widely used in various processing machines and mechanical transmission systems.
Electromagnetic brake A mechanical part that stops or decelerates moving parts in a machine. Commonly known as brakes. The brake is mainly composed of a brake frame, brake parts and a control device. Some brakes are also equipped with an automatic adjustment of the brake clearance. In order to reduce the braking torque and structure size, the brake is usually installed on the high-speed shaft of the equipment, but large equipment with high safety requirements (such as mine hoists, elevators, etc.) should be installed on the low-speed shaft near the working part of the equipment on.

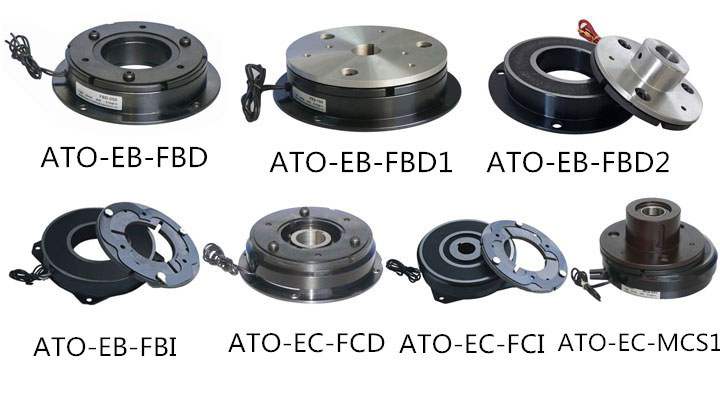

ATO Electromagnetic Brake and Clutch List
We've listed electromagnetic brake and clutch prices for your reference, they all at great prices. For more infomation, please go to the electromagnetic brake and clutch products page.
| Name | SKU | Price | Static Torque | Rated Voltage |
| Electromagnetic Brake, 6Nm/200Nm | ATO-FBD-006 | $110.69 | 6Nm | DC 24V |
| ATO-FBD-015 | $144.69 | 15Nm | ||
| ATO-FBD-025 | $170.69 | 25Nm | ||
| ATO-FBD-050 | $210.69 | 50Nm | ||
| ATO-FBD-100 | $280.69 | 100Nm | ||
| ATO-FBD-200 | $610.69 | 200Nm | ||
| ATO-FBD-400 | $1,107.69 | 400Nm | ||
| Electromagnetic Brake, 15Nm/200Nm | ATO-FBD1-006 | $179.69 | 6Nm | DC 24V |
| ATO-FBD1-015 | $236.30 | 15Nm | ||
| ATO-FBD1-025 | $273.84 | 25Nm | ||
| ATO-FBD1-050 | $397.69 | 50Nm | ||
| ATO-FBD1-100 | $568.60 | 100Nm | ||
| ATO-FBD1-200 | $699.69 | 200Nm | ||
| ATO-FBD1-400 | $1,493.69 | 400Nm | ||
| Electromagnetic Brake, 25Nm/400Nm | ATO-FBD2-006 | $179.69 | 6Nm | DC 24V |
| ATO-FBD2-015 | $236.30 | 15Nm | ||
| ATO-FBD2-025 | $273.84 | 25Nm | ||
| ATO-FBD2-050 | $397.69 | 50Nm | ||
| ATO-FBD2-100 | $568.60 | 100Nm | ||
| ATO-FBD2-200 | $699.69 | 200Nm | ||
| ATO-FBD2-400 | $1,493.69 | 400Nm | ||
| Electromagnetic Brake, 50Nm/400Nm | ATO-FBI-006 | $209.23 | 6Nm | DC 24V |
| ATO-FBI-015 | $246.23 | 15Nm | ||
| ATO-FBI-025 | $268.23 | 25Nm | ||
| ATO-FBI-050 | $446.23 | 50Nm | ||
| ATO-FBI-100 | $689.23 | 100Nm | ||
| ATO-FBI-200 | $964.84 | 200Nm | ||
| ATO-FBI-400 | $1,498.69 | 400Nm | ||
| Electromagnetic Clutch, 100Nm/200Nm | ATO-FCD-006 | $154.68 | 6Nm | DC 24V |
| ATO-FCD-015 | $211.29 | 15Nm | ||
| ATO-FCD-025 | $248.83 | 25Nm | ||
| ATO-FCD-050 | $372.68 | 50Nm | ||
| ATO-FCD-100 | $599.68 | 100Nm | ||
| ATO-FCD-200 | $811.91 | 200Nm | ||
| ATO-FCD-400 | $1,334.98 | 400Nm | ||
| Electromagnetic Clutch, 200Nm/400Nm | ATO-FCI-006 | $209.23 | 6Nm | DC 24V |
| ATO-FCI-015 | $246.23 | 15Nm | ||
| ATO-FCI-025 | $268.23 | 25Nm | ||
| ATO-FCI-050 | $446.23 | 50Nm | ||
| ATO-FCI-100 | $689.23 | 100Nm | ||
| ATO-FCI-200 | $964.84 | 200Nm | ||
| ATO-FCI-400 | $1,498.69 | 400Nm | ||
| Electromagnetic Clutch, 6Nm/400Nm | ATO-MCS1-006 | $283.07 | 6Nm | DC 24V |
| ATO-MCS1-015 | $301.53 | 15Nm | ||
| ATO-MCS1-025 | $356.65 | 25Nm | ||
| ATO-MCS1-050 | $446.15 | 50Nm | ||
| ATO-MCS1-100 | $818.46 | 100Nm | ||
| ATO-MCS1-200 | $1,083.07 | 200Nm | ||
| ATO-MCS1-400 | $1,646.15 | 400Nm |
Note: The prices in the table are just for your reference. If you want to get the latest quotation, please contact us now. Generally, it's cheaper than the price in the table.
