    What is a Gas Detector?

    Gas detector is an instrument for detecting the concentration of gas leakage, including portable gas detector, hand-held gas detector, fixed gas detector, online gas detector, etc. It mainly uses a gas sensor to detect the types of gases present in the environment, and the gas sensor is a sensor used to detect the composition and content of the gas.

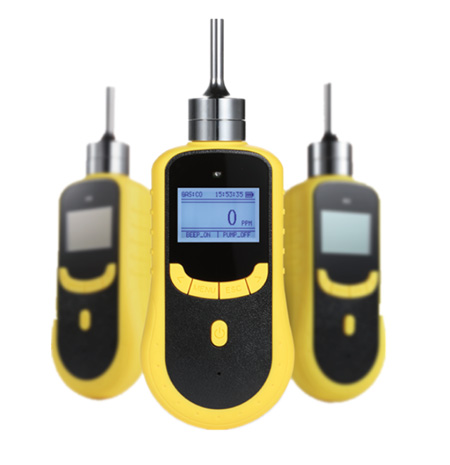

    Handheld Gas leak Detector Pump TypePortable or handheld gas detector is one of the gas detectors which is more convenient to carry around. Portable gas detector has the characteristics of easy operation and compact size, and mainly used to check the toxic and harmful substances in the working space. Portable gas detector can be divided into portable single gas detector and portable multi-gas detector. The single gas detector is a kind of equipment which can continuously and rapidly detect the specific gas concentration in the space. The instrument has the characteristics of fast response speed, high measurement precision and good stability. The portable multi-gas detector can detect multi gas concentration. The common multi-gas detector is a 4-gas detector to detect combustible gas, oxygen, carbon monoxide and hydrogen sulfide.

    The fixed or online gas detector, namely gas alarm, is generally composed of two parts: gas alarm host machine and gas detector. The host is connected to the detector through wireless or wired, to achieve all kinds of gas concentration detection. The host machine is equipped with a sound-light alarm lamp, which will send out a sound-light alarm once abnormalities are found.

    Working principle

    The core technology of gas detector is sensor technology. The common gas sensors include electrochemical, semiconductor, ionization, catalytic combustion, infrared point and so on. The sensors with different principles can be used to form alarm detection devices of different types, different uses and different gas detection purposes. The working principle of gas leak detector is also based on the type of sensor it adopts.

    Now take the common infrared gas detector as an example to illustrate the working principle of the gas detector.

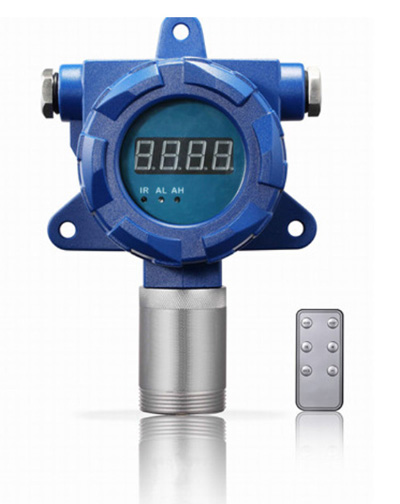

    Fixed Type Gas Detector with Remote ControlThe absorption spectrum can be measured to determine the type of gas, and the absorption intensity can be measured to determine the concentration of the gas. The infrared detector has a wide range of use, not only can analyze the gas composition, but also can analyze the composition of the solution. With high sensitivity, rapid response, and continuous online indication, it can form an adjustment system. The detection part of the infrared gas detector commonly used in industry is composed of two parallel optical systems with the same structure. The two optical systems are the measurement room and the reference room. The two chambers open and close the optical path simultaneously or alternately with a certain cycle through the cutting plate.

    After importing the measured gas into the measuring chamber, the light of the specific wavelength of the measured gas is absorbed, which reduces the light path of the measuring chamber into the infrared receiving chamber. The higher the gas concentration, the less the light flux entering the infrared receiving chamber. And the light flux through the reference chamber is constant, so is the luminous flux into the infrared receiving chamber.

    Therefore, the higher the concentration of the measured gas, the greater the difference of luminous flux between the measuring chamber and the reference chamber. The luminous flux is projected to the infrared receiving chamber by a certain amplitude of periodic vibration.

    Receiver air chamber is separated into two parts with a few microns thick metal film. The measured gas with larger concentration is sealed in the chamber, and can absorb all incoming infrared within the absorption wavelength range to make the luminous flux change. According to the gas equation, the temperature change is converted to pressure change, and then capacitive detector is used to detect. After amplification processing, the measured gas concentration are figured out. In addition to the capacitive detector, the measuring chamber can also use the quantum infrared detector to directly detect the infrared ray, and use the infrared interference filter to select the wavelength and come with the adjustable laser as the light source, forming a new all-solid infrared gas detector. The detector uses only a light source, a measuring chamber and an infrared sensor to measure gas concentration. In addition, the measurement adopts filter discs equipped with multiple different wavelengths, which can simultaneously detect the concentration of various gases in multi-component gases.

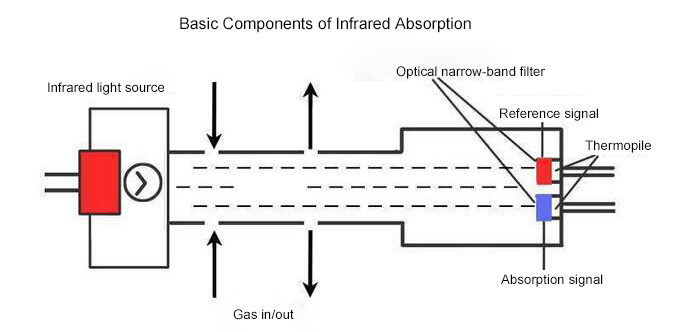

    Basic Components of Infrared Absorption

    Infrared gas detector is suitable for detecting all kinds of inflammable and explosive gases, such as carbon dioxide, with high precision, good selectivity, high reliability, no poisoning, no dependence on oxygen, less environmental interference factors, long life and other significant characteristics. Now it gradually become the mainstream market in the future.

    Applications

    The gas detectors can detect various gases such as hydrogen sulfide, carbon monoxide, oxygen, sulfur dioxide, phosphine, ammonia, nitrogen dioxide, hydrogen cyanide, chlorine, chlorine dioxide, ozone and combustible gas. It is widely used in petrochemicals and coal, metallurgy, chemical industry, municipal gas, environmental monitoring and other places. It can also meet the measurement needs of special occasions, and it can make gas concentration detection or leak detection in the tunnels, pipelines, tanks, enclosed spaces, etc.
