Force Sensor vs Pressure Sensor

Are you unsure whether to use a force sensor or a pressure sensor for your project? This article explains their core differences, working principles, common confusion points,  and typical applications. It also provides a quick selection table covering temperature, humidity, EMI, and other environmental factors.

What Are Force Sensors and Pressure Sensors?

The easiest way to understand the difference between a force sensor and a pressure sensor is to look at this table:

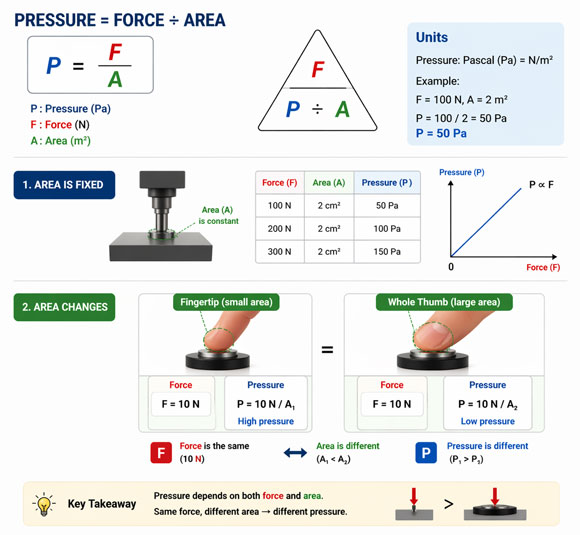

The simple formula that connects them:

Pressure = Force ÷ Area (P = F / A)

• If you know the force and the area, you can calculate pressure.
• If the area is fixed (e.g., a stamping press with a constant-size punch), the readings from a force sensor and a pressure sensor are proportional, which is why people sometimes confuse them.
• If the area changes (e.g., pressing a button with your fingertip vs. your whole thumb), force and pressure become independent. A force sensor gives the same reading regardless of finger size; a pressure sensor gives a different reading because the area changes.

In one sentence:

• Force sensor = total push/pull (independent of area)
• Pressure sensor = how hard the push is per unit area (depends on area)

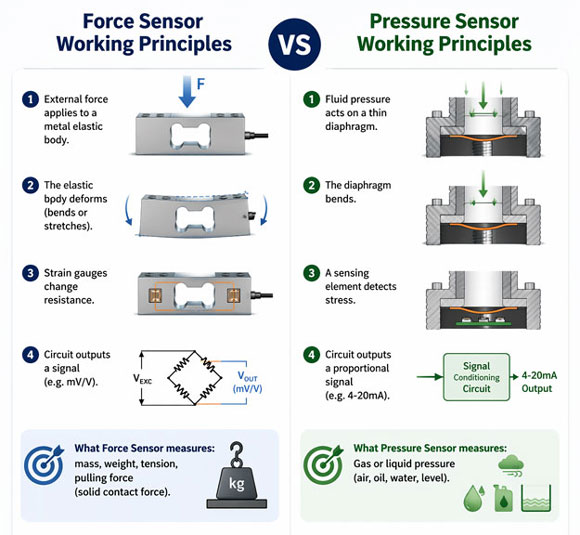

How Do Force Sensors and Pressure Sensors Measure Differently?

Although both sensors rely on mechanical deformation, their internal designs and measurement philosophies differ. The table below summarizes the key differences.

Bottom line: Even if both output 4-20mA or digital signals, they are not interchangeable. Always start with what you need to measure.

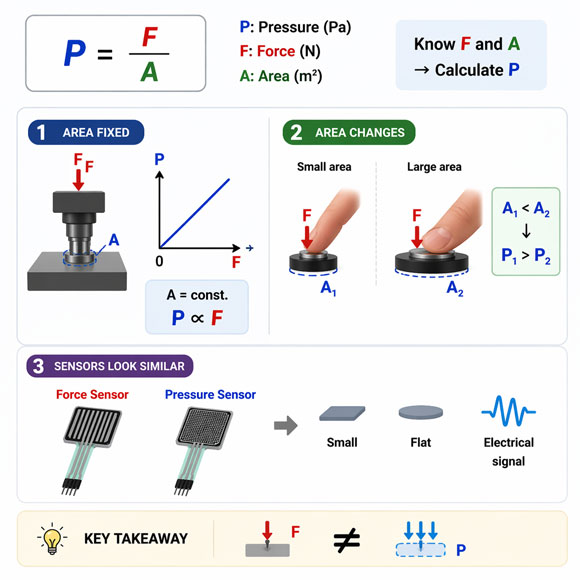

Why Do People Confuse Force Sensors with Pressure Sensors?

Confusion happens for several practical reasons:

• Everyday language: In common speech, we say "apply pressure to a button" when we actually mean "apply force." This blurs the technical distinction.
• Fixed-area scenarios: When the contact area is constant (e.g., a stamping press with a fixed-size punch), force and pressure are proportional (F = P × A). People mistakenly think they are the same thing.
• Similar appearance: Both sensors can be small, flat, and produce electrical signals. In tactile sensing (e.g., robotic skin), flexible force sensors and flexible pressure sensor arrays look almost identical.
• Wrong selection leads to bad data: If you use a pressure sensor to measure button press force, the reading will change depending on finger size (area changes). If you use a force sensor to monitor air pressure in a pipe, you cannot obtain pressure without knowing the exact internal area – and even then, the sensor isn’t designed for fluid sealing.

Remember this rule:

• Force sensor answers: "How much total push/pull?"
• Pressure sensor answers: "How hard is it pushing per square inch?"

What Are Typical Applications of Force and Pressure Sensors?

Here are a few typical products from our ATO store. The tables below show key features and common applications for each sensor type.

Typical Applications of Force Sensors：

Typical Applications of Pressure Sensor：

Which Force or Pressure Sensor Is Right for Your Project?

One-sentence rule:  Identify whether you are measuring a total force or a fluid/gas pressure. Then check the table below for environmental conditions.

Conclusion

Force sensors and pressure sensors are not interchangeable. The choice starts with one simple question: Are you measuring total force or pressure? Once you answer that, consider environmental factors like temperature, humidity, EMI, and mounting to pick the right sensor for your project. If you still have a specific application in mind, run it through the decision table above – you’ll find your answer in seconds.
