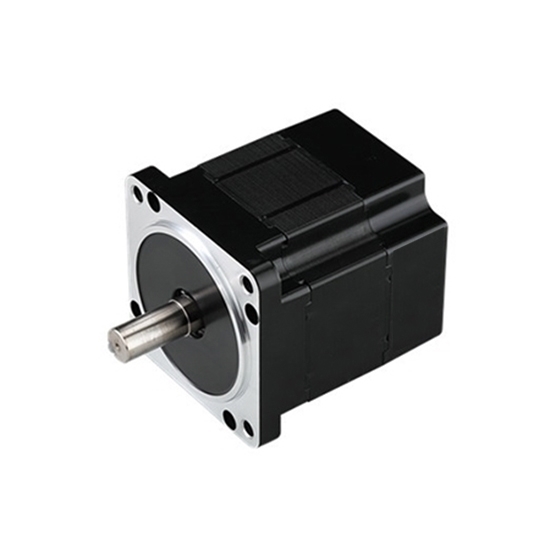

    300W 24V/48V 0.96Nm 3000rpm BLDC Motor

    5 out of 5 based on 3 reviews | Write a review
    $287.52
    300W brushless DC (BLDC) motor is compact 86mm flange size, high performance and cheap price 3 phase electric motor. It works at 24V or 48V DC power supply, providing 3000 rpm rated speed, 0.96Nm holding torque and peak torque to 2.87 Nm. The matched controller is available here and it can combine with a worm gearbox or planetary gearbox which has a wide range of gear ratios for choice.
    SKU: ATO-BLDC-300R3
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 15-30 days

    PRODUCT DESCRIPTION

    ATO offers 300W 24V/48V brushless DC motor that has lower noise, less vibration and longer working life advantages. It is a perfect solution for applications requiring 0.96Nm holding torque or 3000 rpm speed. Meanwhile, we can customize the motor according to your specific needs to provide enough torque and high efficiency when it works.

    300W 24V/48V BLDC MOTOR SPECIFICATION

    Model ATO-D5BLD300
    Matched Controller Model ATO-BLD750 (Click it to see the controller specs)
    Square Flange Size 86 mm
    Weight 6 kg
    Rated Voltage 24V DC 48V DC
    Rated Current 15.63A 7.81A
    Rated Power 300 W
    Phase 3 phase
    Number of Pole 4 pairs of poles (8 poles)
    Holding Torque 0.96 Nm
    Peak Torque 2.87 Nm
    Rated Speed 3000 rpm
    No-load Speed 3300 rpm
    Efficiency 85%
    Brake Apparatus Voltage 24V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
    No-load Current < 6.3A < 4.61A
    Insulation Rank F
    Protection Rank IP 54
    Motor Lead Length by Default 100 cm
    Warranty Time 12 months
    Certificate CE, ROHs, ISO/TS16949
    Temperature 0~50℃
    Humidity <90%RH (no dewing)
    NOTE: Tell us your application needs, we can customize the BLDC motor to meet your precise power, speed, voltage and current requirements.

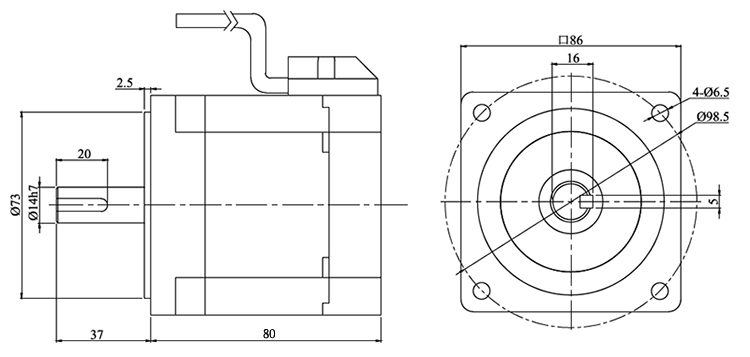

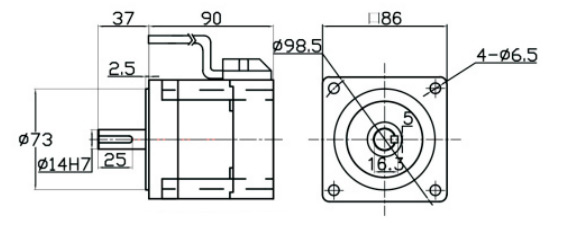

    DIMENSION (Unit=mm)

    300w brushless dc motor dimension

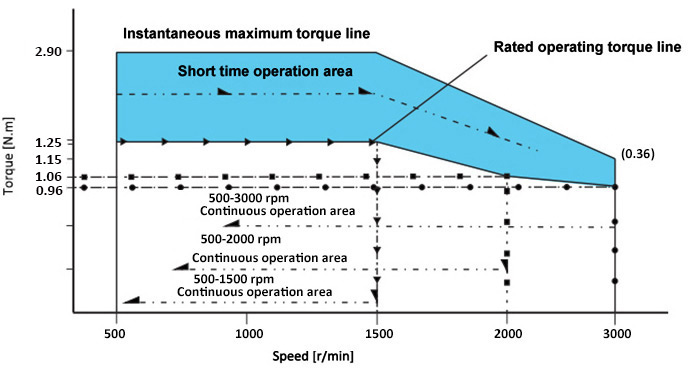

    SPEED-TORQUE CURVE

    300W bldc motor torque speed curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

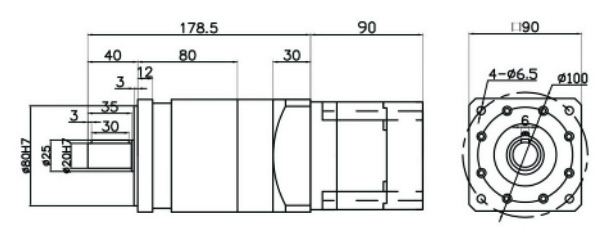

    BLDC MOTOR WITH PLANETARY GEARBOX DIMENSION (unit=mm)

    300w bldc motor with planetary gearbox size

    ALLOWABLE TORQUE BEING WITH GEARBOX

    Gear Ratio 4 5 7 10 16 20 25 28 35 40 50 80 100 125 140 175 200
    Rated Output Speed (rpm) 750 600 429 300 188 150 120 107 86 75 60 38 30 24 21 17 15
    Rated Output Torque (Nm) 3.7 4.6 6.4 9.2 14.4 18 22.4 25.1 31.4 35.9 44.9 71.8 89.8 109.8 123 153.8 175.7
    Peak Output Torque (Nm) 11 13.8 19.3 17 43.1 53.9 67.3 75.4 94.3 107.7 134.7 215.4 240 264 240 264 240
    Moment of Nertia (kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091

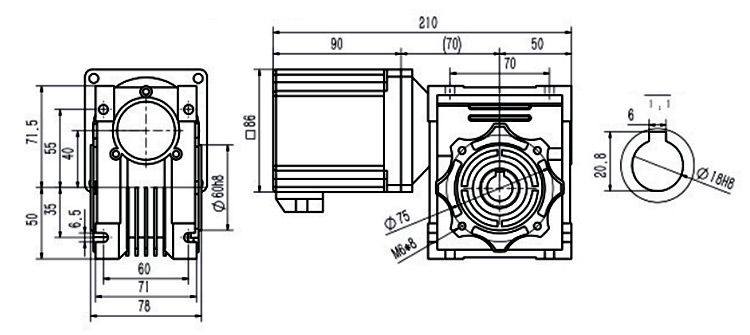

    BLDC MOTOR WITH WORM GEARBOX DIMENSION (unit=mm)

    300w bldc motor with worm gearbox dimension

    ALLOWABLE TORQUE BEING WITH GEARBOX

    (Note: The rated speed of BLDC motor is 2000rpm if matched the worm gearbox.)

    Gear Ratio 7.5 10 15 20 25 30 40 50 60 80 100
    Rated Output Speed (rpm) 267 200 133 100 80 67 50 40 33 25 20
    Rated Output Torque (Nm) 0 0 0 0 32 36 32 38 28 34 29

    TIPS: Can brushless DC motor be used as generator?

    Generator can achieve self-sufficiency in current, BLDC motor can not supply power to itself, its current and voltage still depend on the power supply current to drive, in terms of safety measures, the two also adopt completely different protective measures.

    If brushless DC motor completely does the work of the generator, its own hardware not to mention, considering the function can not fully achieve the function of power generation. If the generator is used to do brushless dc motor work, its own conditions are not appropriate, it has no way to achieve speed regulation function.

    Therefore, brushless DC motor is not suitable for being used as a generator, and it is impossible for a generator to replace a brushless dc motor.

    1. ATO-BLD750 Controller.pdf

    2. ATO BLDC Motors Catalog.pdf

    ATO High Torque BLDC Motor Drawings & Price List

    Note:

    1. ATO highly recommends 48V motors because all models of 48V are in stock, the price is cheaper and the delivery time is shorter, only about 7 days.

    2. 24V/ 72V/ 96V motors are generally not in stock, need to be produced by the factory, which will cost more to start the production line and the delivery time will be longer, about 25 days.

    3. The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Model Motor Price Controller Price Rated Power Rated Speed Rated Torque Rotor Inertia Motor Weight
    (USD/Piece) (USD/Piece) (kW)  (RPM) (Nm) (Kgcm2) (Kg)
    80mm Series DC Brushless Motor
    ATO-80WDM01330 24/48/72/96V 24V: 458.24 395.52 0.41 3000 1.3 0.6 2.4
    48V: 305.49
    72/96V: 580.43
    ATO-80WDM02420 24/48/72/96V 24V: 564.53 395.52 0.5 2000 2.4 0.8 3
    48V: 376.35
    72/96V: 715.06
    ATO-80WDM02430 24/48/72/96V 24V: 529.16 395.52 0.75 3000 2.4 0.8 3
    48V: 352.77
    72/96V: 670.26
    ATO-80WDM03320 24/48/72/96V 24V: 597.68 395.52 0.69 2000 3.3 1.1 3
    48V: 398.45
    72/96V: 757.36
    ATO-80WDM03330 24/48/72/96V 24V: 639.27 395.52 1.04 3000 3.3 1.1 3
    48V: 426.18
    72/96V: 809.74
    110mm Series DC Brushless Motor
    ATO-110WDM02020 24/48/72/96V 24V: 687.38 395.52 0.4 2000 2 3.3 3.2
    48V: 458.25
    72/96V: 824.85
    ATO-110WDM02030 24/48/72/96V 24V: 745.11 395.52 0.6 3000 2 3.3 3.2
    48V: 496.74
    72/96V: 894.13
    ATO-110WDM04010 24/48/72/96V 24V: 779.86 395.52 0.4 1000 4 6.5 5.65
    48V: 519.93
    72/96V: 935.87
    ATO-110WDM04020 24/48/72/96V 24V: 788.57 395.52 0.8 2000 4 6.5 5.65
    48V: 525.71
    72/96V: 988.33
    ATO-110WDM04030 24/48/72/96V 24V: 798.63 653.05 1.3 3000 4 6.5 5.65
    48V: 532.42
    72/96V: 1001.95
    ATO-110WDM06010 24/48/72/96V 24V: 758.82 395.52 0.6 1000 6 10 6.6
    48V: 505.88
    72/96V: 956.69
    ATO-110WDM06020 24/48/72/96V 24V: 819.59 653.05 1.3 2000 6 10 6.6
    48V: 546.39
    72/96V: 1010.82
    ATO-110WDM06030 24/48/72/96V 24V: 995.94 653.05 1.9 3000 6 10 6.6
    48V: 553.28
    72/96V: 1051.23
    130mm Series DC Brushless Motor
    ATO-130WDM04010 24/48/72/96V 24V: 876.95 395.52 0.4 1000 4 10.4 6.7
    48V: 584.62
    72/96V: 1099.08
    ATO-130WDM04020 24/48/72/96V 24V: 910.67 395.52 0.8 2000 4 10.4 6.7
    48V: 607.13
    72/96V: 1104.98
    ATO-130WDM04030 24/48/72/96V 24V: 959.18 653.05 1.3 3000 4 10.4 6.7
    48V: 639.45
    72/96V: 1151.01
    ATO-130WDM06010 24/48/72/96V 24V: 987.65 395.52 0.6 1000 6 12.4 7.7
    48V: 658.43
    72/96V: 1185.17
    ATO-130WDM06020 24/48/72/96V 24V: 1012.23 653.05 1.3 2000 6 12.4 7.7
    48V: 674.82
    72/96V: 1147.19
    ATO-130WDM06030 24/48/72/96V 24V: 1047.72 653.05 1.9 3000 6 12.4 7.7
    48V: 698.48
    72/96V: 1208.34
    ATO-130WDM07710 24/48/72/96V 24V: 1060.07 395.52 0.8 1000 7.7 15.8 9.05
    48V: 706.71
    72/96V: 1257.94
    ATO-130WDM07720 24/48/72/96V 24V: 1093.21 653.05 1.6 2000 7.7 15.8 9.05
    48V: 738.65
    72/96V: 1292.64
    ATO-130WDM07730 48/72/96V 48V: 751.52 653.05 2.3 3000 7.7 15.8 9.05
    72/96V: 1337.71
    ATO-130WDM10010 24/48/72/96V 24V: 1161.55 653.05 1 1000 10 21.4 12
    48V: 784.83
    72/96V: 1396.89
    ATO-130WDM10020 24/48/72/96V 24V: 1224.36 653.05 2 2000 10 21.4 12
    48V: 816.24
    72/96V: 1371.28
    ATO-130WDM10030 48/72/96V 48V: 879.12 898.21 3.1 3000 10 21.4 12
    72/96V: 1450.55
    ATO-130WDM15010 24/48/72/96V 24V:1311.88 653.05 1.6 1000 15 32.4 12
    48V: 936.47
    72/96V: 1498.35
    ATO-130WDM15020 48/72/96V 48V: 1086.36 898.21 3.1 2000 15 32.4 12
    72/96V: 1738.17
    ATO-130WDM15030 48/72/96V 48V: 1127.54 1119.07 4.7 3000 15 32.4 12
    72/96V: 1804.64
    180mm Series DC Brushless Motor
    ATO-180WDM12010 48/72/96V 48V: 1246.31 653.05 1.3 1000 12 32.6  18.5
    72/96V: 1994.09
    ATO-180WDM12020 48/72/96V 48V: 1323.69 653.05 2.5 2000 12 32.6 18.5
    72/96V: 2117.91
    ATO-180WDM12030 48/72/96V 48V: 1398.84 898.21 3.8 3000 12 38 18.5
    72/96V: 2238.14
    ATO-180WDM16010 48/72/96V 48V: 1555.69 653.05 1.7 1000 16 55 18.6
    72/96V: 2411.32
    ATO-180WDM16020 48/72/96V 48V: 1625.36 898.21 3.4 2000 16 55 18.6
    72/96V: 2568.07
    ATO-180WDM16030 48/72/96V 48V: 1745.93 1119.07 5 3000 16 55 18.6
    72/96V: 2618.89
    ATO-180WDM25010 48/72/96V 48V: 2012.54 653.05 2.6 1000 25 55 26
    72/96V: 3179.81
    ATO-180WDM25020 48/72/96V 48V: 2274.19 1119.07 5.2 2000 25  93 26
    72/96V: 3411.26
    ATO-180WDM25030 48/72/96V 48V: 2448.58 1531.99 7.9 3000 25  93 26
    72/96V: 3672.87
    ATO-180WDM36010 48/72/96V 48V: 2644.28 898.21 3.8 1000 36 148 30
    72/96V: 3966.42
    ATO-180WDM36020 48/72/96V 48V: 2832.56 1119.07 7.5 2000 36 148 30
    72/96V: 4248.84
    ATO-180WDM36030 72/96V 72/96V: 4334.69 1885.15 11.3 3000 36 148 30
    ATO-180WDM50010 48/72/96V 48V: 3284.58 1119.07 5.2 1000 50 165 38
    72/96V: 4556.41
    ATO-180WDM50020 48/72/96V 48V: 4344.12 1531.99 10.8 2000 50 165 38
    72/96V: 5994.72
    ATO-180WDM50030 96V 96V: 6204.65 2261.84 15.7 3000 50 165 38

    ATO BLDC Motor Hall Sensor Controller Connection & Control

    In this video, ATO shows you the connection and control operation of 200W (ATO-BLDC-200R3), 300W (ATO-BLDC-300R3), 1000W (ATO-BLDC-1000R3), 1500W (ATO-BLDC-1500R3) BLDC motor with controller. After the wiring is completed, we can use the speed control knob of the controller to adjust the speed.

    How to Use Controller to Reverse and Stop the BLDC Motor

    This video mainly shows you how to use BLDC motor controller connecting with an external potentiometer to adjust the speed of the motor, to naturally/urgently stop the motor, and forward or reverse control of the motor. In many cases, we can't directly control the speed by controller, so connecting with an external potentiometer is a good choice. Similarly, we can stop the motor or rotate the motor in the opposite direction without approaching the controller.

    BLDC Motor Controller Control Speed with Analog Signal (5V)

    The video shows how to use voltage analog signal to control the speed of ATO BLDC motor. Therefore, we can control the speed of BLDC motor in the same way with the 0~5V signal sent by PLC or microcontroller.



    Existing reviews of 300W 24V/48V 0.96Nm 3000rpm BLDC Motor
    What is the lubricant on your planetary gearbox?
    Need to know, what is the lubricant on your planetary gearbox, is it grease or oil? Give me more info, and does it wear due to friction?
    From: Daniel Touron | Date: 04/12/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our planetary gearboxes use grease, not oil. When the planetary gearbox is running, the grease inside will form an oil film that will lubricate. Regarding how to prevent wear, our gear surface hardness is 62 degrees, there will be some wear during operation, but it will not affect the use.
    Want to order online one of your ATO-BLD750 motor controller
    I want to order online one of your ATO-BLD750 motor controller, but do not want to order the motor, how can I pay you for only the controller?
    From: Sallie | Date: 29/12/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Click Pay Now button shown on: https://www.ato.com/how-to-buy. And pay the controller amount by credit card, then confirm with us by email: sales@ato.com
    What is the max Momentum / Torque of the Worm-Gear can handle?
    In the case, our vehicle would cut off the electricity and the gear stop turning. That would mean, the wheels of our vehicle would get blocked by the gear. Then the wheels are sliding over the ground and indicate a certain torque into the gearbox.
    So: What is the max Momentum / Torque of the Worm-Gear can handle? Does your gear have selflocking?
    From: Niklas Volker | Date: 06/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    A. When the motor is stopped, the external load impact force on the reducer is not a problem as long as it does not exceed the rated output torque of the worm-gear (45NM).
    B. The planetary gears hasn't self-locking.
    Write your review for 300W 24V/48V 0.96Nm 3000rpm BLDC Motor
    • Only registered users can write reviews
    • Bad
    • Excellent
