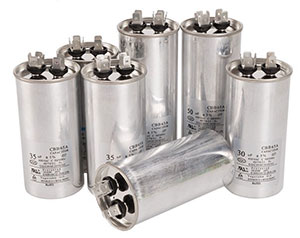

What is Air Conditioner Capacitor?

An air conditioner capacitor is an electronic component used to store and release electrical energy to assist in the start-up and operation of the air conditioner motor. It plays a crucial role in the operation of air conditioning. In this article, ATO Store will provide a detailed introduction from three aspects: the structure, function, and working principle of air conditioner capacitors.

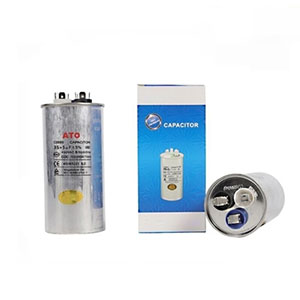

Structure of Air Conditioner Capacitor

An air conditioner capacitor generally consists of two or three capacitors which are usually mounted on an electronic control board near the air conditioner motor. One of the capacitors is called the run capacitor, which provides power to start the motor and keep it running; the other capacitor is called the start capacitor, which provides power to help the motor start from a stopped state.

Working Principle of Air Conditioner Capacitor

The working principle of an air conditioner capacitor mainly involves the process of energy storage and release in a capacitor. A capacitor is composed of two conductor plates and an insulating medium between them, and when an applied voltage is applied to the conductor plates, an electric charge is generated on the plates. Specifically, the working principle of an air conditioner capacitor can be divided into the following steps:

1. Charge Storage: When the air conditioning system is energized, the power supply current passes through the air conditioner capacitor, positive and negative charges are generated on the conductor plates and an electric field is formed. The insulating medium of the capacitor can prevent the charge from passing through directly, thus making the charge stored in the capacitor.
2. Charge Release: When the air conditioning system needs to be started, the capacitor releases the stored charge to provide additional current. By releasing the charge, the air conditioner capacitor provides auxiliary power for the compressor to start, enabling the air conditioning system to start properly.
3. Balance of Power: In the operation of air conditioning system, the current size and phase will continue to change and the air conditioner capacitor can store and release power according to the change of current, so as to realize the balance of power. By balancing the electrical energy, the air conditioner capacitor can keep the current and voltage in the circuit in the appropriate range to ensure the normal operation of the air conditioning system.

The Function of Air Conditioner Capacitor

As an important part of the air conditioning system, the air conditioner capacitor mainly plays the role of storing and releasing electrical energy. Specifically, the role of air conditioner capacitors is mainly reflected in the following aspects:

1. Help start-up: air conditioner capacitors can provide auxiliary power for the start of the air conditioning system. In the air conditioning start-up process, because the compressor start-up requires a large current, and the power grid power supply capacity is limited, so the role of the air conditioning capacitor is particularly important. By storing electrical energy and releasing it during start-up, the air conditioning capacitor can provide additional current to enable the compressor to start smoothly.
2. Balance electrical energy: Air conditioner capacitors can also balance the electrical energy in the air conditioning system and improve the stability of the circuit. During the operation of the air conditioning system, the magnitude and phase of the current will constantly change, and the air conditioner capacitor can store and release electrical energy based on the changes in current, thereby balancing the electrical energy in the circuit, keeping the current and voltage within a suitable range, and avoiding circuit faults caused by energy imbalance.
3. Power factor improvement: air conditioner capacitors can also improve the power factor of the air conditioning system. Power factor is the ratio of active power to apparent power in a circuit, and is an important indicator for evaluating the energy efficiency of a circuit. By storing and releasing electrical energy, air conditioner capacitors can improve the power factor of the circuit, reduce power loss and improve the energy efficiency of the air conditioning system.

As an important component in the air conditioning system, the air conditioner capacitor plays the role of storing and releasing electrical energy. By boosting startup, balancing electrical energy and improving power factor, air conditioner capacitors provide important support for the normal operation of air conditioning systems. At the same time, the working principle of air conditioner capacitor is also based on the energy storage and release process of capacitor, which realizes the balance of electric energy and the improvement of power factor by storing and releasing electric charge. The understanding of the role and working principle of air conditioner capacitors is important for the maintenance and servicing of air conditioning systems.
