    AC Servo Spindle Motor Price List

    The operating principle of the AC spindle servo motor is that when the symmetrical three-phase winding on the stator is connected to the symmetrical three-phase, the excitation current is supplied by the power supply and a rotating magnetic field is established in the air gap between the stator and the rotor rotating at a synchronous speed. By the electromagnetic inductance, the induced potential is generated in the rotor guide bar. Because the rotor guide strip has formed a closed circuit, a current is running through the rotor guide strip. This generates electromagnetic torque and realizes the energy transformation from electrical energy to mechanical energy. ATO provides customers with a wide range of AC spindle servo motors of good quality with favorable prices.

     Servo spindle motor Rated Voltage (optional) AC 3-Phase 380V/ 220V
    Rated Frequency 50Hz
    Rated Speed 1450/1460/1500 rpm
    Max Speed 6000 rpm
    Controller and Brake Resistor Yes/No
    Incremental Encoder Line 1024/2500PPR
    Installation Vertical/Horizontal
    Installation Method Flange installation
    Work System Continuous
    Safety Class IP54
    Working Temperature 0~55℃
    Humidity Less than 90%

    AC Servo Spindle Motor Price List

    SKU Rated Power Rated Torque Speed(rpm) Weight(kg) Price
    Rated Max Vertical  Horizontal
    ATO-SERVO-314 3 hp (2.2 kW) 14 N.m 1450 6000 33 35.6  $869.75
    ATO-SERVO-524 5 hp (3.7 kW) 24 N.m 1460 43 46 $979.92
     ATO-SERVO-5535 5.5 kW  35 N.m 57 61 $1,174.77
    ATO-SERVO-1050 10 hp (7.5 kW) 50 N.m 66.5 71.5 $1,546.23
    ATO-SERVO-9560 9.5 kW 60 N.m 1500 80 92 $2,003.38
    ATO-SERVO-1170 11 kW 70 N.m 89 101 $2,249.69
    ATO-SERVO-2095 20 hp (15 kW) 95 N.m 119 131 $2,897.69

     Note: The prices in the table are for reference. If you want more specific information and better prices, please feel free to contact us.

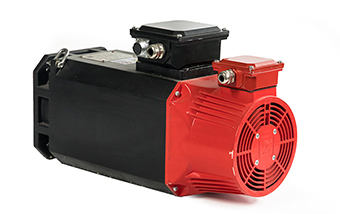

    Servo motor side Servo motor junction box
    side compact junction box

    Types of servo motor applications

    • Speed mode, such as the demand for rapid acceleration and deceleration. One of the most typical applications of this kind is the lighting ball suspended from the stage, which is the rapid acceleration and deceleration.
    • Torque mode, which is a constant output force, constant torque. For example: wire cutting machine, diamond cutting machine. The spindle and feed axis on the machine are servo motors, which mainly also serve this function.
    • Position mode. It is possible to precisely control the position. The so-called control position, in fact, is to control the angle of rotation of the servo motor. How many degrees a motor rotation is dependent on the encoder to count.
