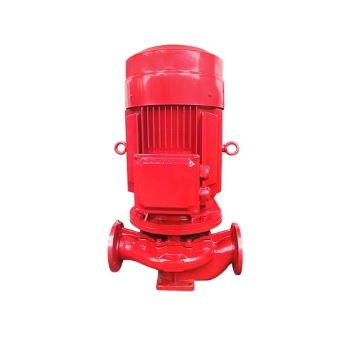

Fire Pump Buying Guide
A fire pump is a specialized device used to increase the pressure and flow rate of water in a fire protection system, such as a sprinkler system or standpipe system, to ensure an adequate water supply in the event of a fire. Fire pumps are designed to deliver large quantities of water at high pressures and are often installed in commercial or industrial buildings as well as in high-rise residential buildings.
Factors of choosing fire pumps
- Flow (Q): Fire pumps in the unit of time to transport the amount of water needed is calculated according to the building area and system requirements to meet the maximum water supply standards.
- Head (H): Refers to the vertical height of the water conveyance; the selection of fire pump models should be slightly higher than the actual required, taking into account the pipe loss and end pressure.
- Power (P): Motor or diesel engine output capacity, needs to be reasonably matched, taking into account the stability and energy control.
- Outlet caliber (DN): The size of the outlet should be consistent with the specifications of the firefighting pipeline to ensure smooth water flow and system compatibility.
ATO fire pumps for sale
| SKU | Power | Number of Stage | Caliber | Rotating Speed | Flow Rate | Price |
| ATO-FP-02HP | 2 hp (1.5 kW) | single stage | 32 mm | 2900 r/min | 6.5m³/h | $1,573.89 |
| ATO-FP-03HP | 3 hp (2.2 kW) | single stage | 40 mm | 2900 r/min | 3.7m³/h | $2,203.17 |
| ATO-FP-075HP | 7.5 hp (5.5 kW) | single stage | 50 mm | 2900 r/min | 8.8m³/h | $3,141.51 |
| ATO-FP-10HP | 10 hp (7.5 kW) | single stage | 65 mm | 2900 r/min | 17.5m³/h | $3,330.95 |
| ATO-FP-15HP | 15 hp (11 kW) | single stage | 80 mm | 2900 r/min | 32.8m³/h | $4,540.79 |
| ATO-FP-20HP | 20 hp (15 kW) | single stage | 100 mm | 2900 r/min | 70m³/h | $5,149.29 |
| ATO-FP-25HP | 25 hp (18.5 kW) | single stage | 65 mm | 2900 r/min | 15.7m³/h | $6,218.97 |
| ATO-FP-30HP | 30 hp (22 kW) | single stage | 65 mm | 2900 r/min | 16.6m³/h | $7,073.81 |
| ATO-FP-40HP | 40 hp (30 kW) | single stage | 80 mm | 2900 r/min | 31m³/h | $8,602.54 |
| ATO-FP-50HP | 50 hp (37 kW) | single stage | 80 mm | 2900 r/min | 35m³/h | $9,934.29 |
Why choose our fire pumps?
Fire pumps are indispensable machines in industry. They offer many advantages that are far from being found in other equipment. Our fire pumps are stronger and more durable than other hoists from other manufacturers and suppliers, and can work for long periods. In addition, they can operate in hot environments as usual. Here are the advantages of our fire pump.
- Increased water pressure: Fire pumps increase water pressure for effective fire suppression. They are designed to provide an adequate supply of water to a building's sprinkler or standpipe system.
- Enhanced safety: Fire pumps are a key component of a fire protection system, providing a reliable source of water in an emergency. They help ensure the safety of building occupants by reducing the risk of fire-related injuries and deaths.
- Reliable operation: Fire pumps are designed to operate reliably and provide consistent performance even under extreme conditions. They are regularly maintained to ensure they are always ready to perform when needed.
Fire pumps usually need to be used with control cabinets, piping systems, water tanks, valves, and alarm equipment etc. ATO online shop provides a variety of models of fire pumps, support for integrated system configuration, and technical consulting services to help you efficiently build a complete fire protection solution.
