    Control Transformer Price List

    Control transformers are compact dry-type transformers. It is often applied as a transformer for supplying power to machines, electrical machinery, relays, lighting, etc. As a power supply system for control circuits in electrical equipment. Control transformer is suitable for AC 50Hz/60Hz, voltage 1000V and the following power supply circuit, which can work continuously for a long time at rated value. Control transformers operate on the basic principle of the magnetic effect of current. Control transformer consists of transformer core and coil transmission line. It has two coils, the primary coil and the secondary coil.  The secondary coil is outside the primary coil. When the primary coil is connected to the AC current, the transformer core creates an alternating electromagnetic field and the secondary coil creates an induced current. It can not only change the voltage of the AC current, but also change the characteristic impedance. And it can change the flow of electricity without exceeding the output power of the design scheme. ATO offers more reliable control transformers at a more affordable price.

     Control transformer Single phase control transformer
    Winding Material Enameled copper wire/aluminum wire

    Primary Voltage(V)

    (customized)

    110,120,208,220,230,240,380,400,

    480,110/220,120/240, 240/480…

     Control transformer

    Secondary Voltage(V)

    (customized)

    6,12,24,36,48,110/48,120/24,208/36,220/48,230/36,240/120,

    120/24/12,110/36/24,127/36/6,208/48/36/24…

    Frequency 50 / 60Hz
    Insulation Level F / H
    Induced Voltage Test 125Hz/ 800V/min
    Ground Resistance 25<A80 milliohm
     Control transformer Cooling Method Natural or air cooling
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage about 6%
    Total Losses 0.1
    Efficiency 80%~99%
    Certificate CE, ISO

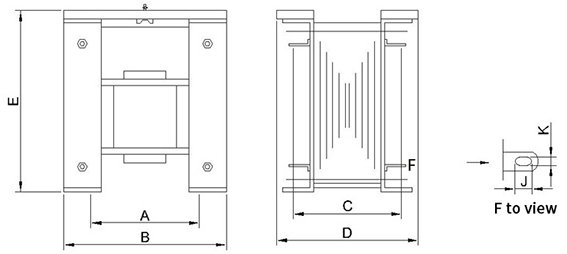

    Control transformer dimension

     Control transformer structure

    Control transformer price list

    SKU Capacity Overall size(mm) Hole distance for installation(mm)

    Installation hole(mm)K x J

    Price
    B E D A C
    ATO-T-BK500VA 500 VA 132 135 140 100 105 12 x 7 $273.08
    ATO-T-BK800VA 800VA 150 135 155 120 115 12 x 7 $325.69
    ATO-T-BK1000VA 1000VA 150 145 155 120 130 12 x 7 $276.31
    ATO-T-BK2000VA 2000VA 192 135 190 140 120 17 x 8 $456.24
    ATO-T-BK3000VA 3000VA 192 175 190 140 160 17 x 8 $597.69
    ATO-T-BK4000VA 4000VA 210 180 210 150 170 18 x 8 $754.17
    ATO-T-BK5000VA 5000VA 240 180 230 180 160 20 x 10 $864.62
    ATO-T-BK6000VA 6000VA 240 190 230 180 10 20 x 10 $966.92
    ATO-T-BK8000VA 8000VA 240 220 230 180 200 20 x 10 $1,121.54
    ATO-T-BK10KVA 10kVA 290 240 330 150 180 20 x 10 $1,321.54

    Note: The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us.

    Information about the working principleinstallation and troubleshooting of control transformers are introduced in detail by ATO. At the same time, ATO also supply a series of excellent toroidal transformers and isolation transformers.
