Water Turbine Price List
Water turbines convert the kinetic energy of flowing water into mechanical or electrical energy. Whether used for micro-hydropower systems, small stream generators, or off-grid electricity supply, they offer clean, renewable energy with low operating costs. We offer a variety of water turbines ranging from micro DC generators to high-capacity AC turbines, designed for different flow rates, head heights, and environmental conditions.
ATO offers a wide range of high-quality water turbines of different powers and structures for your selection, including vertical water turbines, horizontal water turbines, household micro water turbines, water turbines dedicated to small hydropower stations, and portable water turbine generators. The ATO turbine features high efficiency, compact structure, and stable operation. It is suitable for household electricity use, off-grid power generation, experimental teaching, and small-scale hydropower projects.
The specific prices of ATO water turbines are as follows for your reference. For more specifications, parameters, and selection information, please refer to the product page of the turbine.
Water Turbine Price List
| Product Name | SKU | Specification | Price |
|

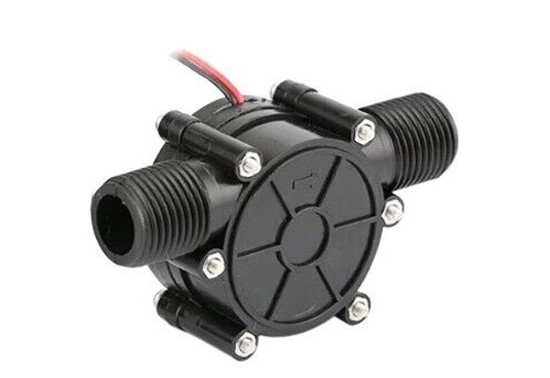

Micro Water Turbine Generator
|
ATO-WT-05 |
Regulated Output: DC 5V Starting Water Pressure: 0.05 MPa Pressure Range: 0.15-0.8 MPa |
$28.76 |
| ATO-WT-12 |
Regulated Output: DC 12V Starting Water Pressure: 0.05 MPa Pressure Range: 0.15-0.8 MPa |
$28.76 | |
| ATO-MWT-20 |
Regulated Output: DC 20V Starting Water Pressure: 0.05 MPa Pressure Range: 0.15-0.8 MPa |
$27.86 | |
| ATO-WT-80 |
Regulated Output: DC 80V Starting Water Pressure: 0.05 MPa Pressure Range: 0.15-0.8 MPa |
$29.86 | |
|
Small Water Turbine Electric Generator with Display Screen
|
ATO-WT-DS |
Max Working Pressure: 1.75 MPa Flow Range: 2.0 ~ 15 L/min Max Output: 21.2V ±2V AC (6 L/min Flow) Output Voltage: 4.7 ~ 21V ±0.3V AC |
$71.42 |
|
Small Water Turbine Generator for Home
|
ATO-WT-06 |
Starting Flow Rate: 2 L/min Working Water Pressure: <2 kg Power Output: 210 mW (4 L/min) Voltage Output: DC 6V Maximum Flow Rate: 20 L/min (Water Pressure 2 kg)
|
$72.56 |
|
IR-Induced Mini Hydroelectric Turbine Generator
|
ATO-HT-IR |
Operating Voltage Range: DC 3.8 V-6.5 V Infrared Detection Distance: 30 cm~60 cm Charging Voltage: ≤3.7 VDC Power Supply Voltage ≤3.7 V: Pulse valve remains open |
$184.76 |
|
Mini Water Turbine Generator
|
ATO-WT-LF |
Power: 50W Voltage: 1-60V Water Pressure: 0.1-1MPa Interface: 4-way water pipe connector |
$96.54 |
|
Portable Hydro Water Turbine Generator
|
ATO-WT-SD |
Length: 313 mm short / 343 mm long Power:50W Interface: USB 3.0 (fast charging interface), DC 5.5-2.1 interface Voltage: 1-15 V |
$179.58 |
|
Micro Hydro Generator, MPPT
|
ATO-HT-1248 |
Supported Batteries: 12V / 24V / 48V Power Output: 36W/50W (Optional) Connectivity: Bluetooth |
$251.18 |
|
Vertical Hydroelectric Turbine Generator
|
ATO-HT-1.5kW |
Power: 1.5 kW Voltage: 220 V Impeller Diameter: 15 cm Design Flow Rate: 0.04-0.045m3/s |
$1,416.71 |
| ATO-HT-2KW |
Power: 2 kW Voltage: 220 V Waterleaf Diameter: 18cm Design Flow Rate: 0.03 ~ 0.04 m³/s |
$1,615.71 | |
| ATO-HT-3KW |
Power: 3 kW Voltage: 220 V Waterleaf Diameter: 18cm Design Flow Rate: 0.09 ~ 0.14 m³/s |
$1,979.99 | |
| ATO-HT-5KW |
Power: 5 kW Voltage: 220V/ 380V Water Blade Diameter: 20cm Design Flow Rate: 0.09-0.14 m3/s |
$3,599.89 |
How to Choose the Water Turbine?
When selecting a hydraulic gear pump, making the right choice is crucial for system performance and reliability. Below are several important factors to guide your purchase:
- Identify Flow and Pressure Needs
Start by calculating the exact flow rate (L/min or GPM) and working pressure (bar or psi) required for your application. A properly matched pump prevents inefficiency, overheating, or premature wear, ensuring stable operation. - Select Proper Displacement and Speed
Hydraulic gear pumps vary in displacement and operating speed. Consider the cubic centimeters per revolution (cc/rev) and the maximum rpm that your system supports. Choosing the correct displacement ensures the pump can deliver the expected output without overloading the system. - Confirm Fluid Compatibility
Always verify that the pump materials are suitable for the hydraulic fluid used in your system, whether mineral oil, synthetic blends, or specialty fluids. Correct compatibility enhances service life, reduces maintenance, and improves overall pump efficiency.
By carefully evaluating these factors, you can confidently choose a hydraulic gear pump that aligns with your application’s technical requirements, while ensuring durability and long-term performance.
