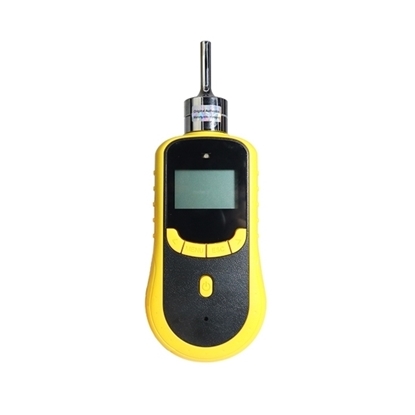

Portable Hydrogen Chloride (HCL) Gas Detector, 0 to 10/20/50/100/200 ppm

Low cost handheld gas detector provides HCL Hydrogen Chloride gas monitoring with high accuracy sensor, LCD display, easy readout, small & portable design, convenient to carry.

Specification

• Model: GD200-HCL
• Gas: Hydrogen Chloride HCL
• Sampling: With internal sampling pump, flow rate is up to 1L/min
• Data logging: Data logging with adjustable interval, and available for data downloading to PC through USB cable.
• Measure Range: 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm, 0-2000ppm
• Resolution: 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100/200ppm), 1ppm (0-500/1000/2000)
• Precision: ≤±2%F.S. (higher precision is available)
• Response Time: ≤10S
• Zero Shift: ≤±1%（F.S./year）
• Display: LCD dot matrix display, with display of gas type, real time gas concentration, battery power, time, gas unit.
• Temperature: -20℃～50℃
• Humidity: 0-95%RH (non-condensing)
• Explosion-Proof: ExibllCT4
• Degree of Protection: IP65
• Alarm: Sound: 85dB, Light: LED, low alarm: blue, high alarm: red, Vibration: the detector will vibrate when powered on (Alarm point is settable according to customer requirement.)
• Battery: 3.6V 2300mAh lithium polymer rechargeable battery, operate time is about 12h continuously, charging time: 4-6h
• Dimension: 205x75x32mm
• Weight: 300g
• Approval: CE, CNEX explosion proof certificate, CMC (China Metrology Certification)
• Warranty: 12 months

Details

Features

Fast response & high accuracy

• With internal sampling pump, response time ≤30s.
• Using world top brand sensors, high precision, the detection result is approved by the third testing organization.

Comprehensive functions

• Gas concentration unit PPM and mg/m3 can be shifted by one press.
• With Self-calibration and zero calibration functions, making the detection more accurate and reliable.
  One press to restore factory setting, free from the bother of mis-operation.

Alarm mode

• Alarm with light, sound and vibration, ensuring the safety of the users.
• Alarm point is settable according to the specific requirements.

Data logging

• Storage capacity of over 100000 sets, the historical detected data can be read on the detector quickly.
• High-speed data transmission by USB, available for data downloading to PC.

Long operation time

• High capacity of lithium polymer rechargeable battery, for toxic gas: 14h continuously. For combustible gas: 10h continuously.

High quality case

• Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.
• IP65 protection degree, water-proof, dust-proof, explosion-proof.

Application

Tips: Why do gas detectors need to be calibrated?

The accuracy of the combustible gas detector is an important prerequisite for detecting and issuing an alarm, and its accuracy depends on the built-in combustible gas sensor, whether it is an electrochemical sensor or a catalytic combustion sensor, it will be affected by certain environmental conditions during use. The influence of substances, and gradually changes or even poisoning failure, only through timely maintenance and calibration, the accuracy of the results detected by the instrument can be guaranteed. In actual use, many factors will affect the accurate value of the alarm. Regular calibration is to minimize the error of the detection result and achieve the highest accuracy.
