Power Divider Price List
A power divider, also known as a power combiner and splitter, is a passive multi-port network that is widely used in microwave circuits. Its main function is to evenly distribute an input signal to multiple output ports, or to combine multiple signals into one output signal. A power divider plays the role of signal distribution, signal synthesis and power balancing in a radio frequency (RF) system.
The working principle of the power divider is based on the coupling and distribution of electromagnetic waves. It usually consists of transmission lines, impedance-matching networks and coupling elements. The design of the power divider ensures that the input signal can be distributed to each output end in a specific ratio while minimizing signal loss and reflection. ATO One-stop Industrial Automation Shop provides 2 way, 3 way, 4 way, 6 way, 8 way, 10 way, 12 way, 16 way and 32 way power dividers for your choices. Below is the price list of power dividers for your reference.
Power Divider Price List
Product | SKU | Frequency Range | Price |
2 Way RF Power Divider | ATO-PD-2W056GHZ | 0.5~6 GHz (500~6000 MHz) | $81.99 |
ATO-PD-2W058GHZ | 0.5~8 GHz (500~8000 MHz) | $108.29 | |
ATO-PD-2W0722GHZ | 0.7~2.2 GHz (700~2200 MHz) | $146.39 | |
ATO-PD-2W1840GHZ | 18~40 GHz (18000~40000 MHz) | $505.09 | |
3 Way Coaxial Power Divider | ATO-PD-3W056GHZ | 0.5~6 GHz (500~6000 MHz) | $178.79 |
4 Way RF Power Divider | ATO-PD-4W056GHZ | 0.5~6 GHz (500~6000 MHz) | $114.29 |
ATO-PD-4W0622GHZ | 1.1~1.7 GHz Typ. (0.6~2.2 GHz Max.) | $393.89 | |
6 Way Microstrip Power Divider | ATO-PD-6W056GHZ | 0.5~6 GHz (500~6000 MHz) | $286.09 |
8 Way RF Power Divider | ATO-PD-8W056GHZ | 0.5~6 GHz (500~6000 MHz) | $204.19 |

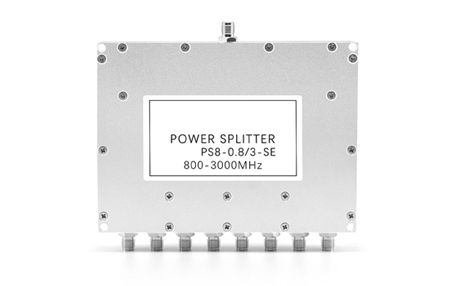

ATO-PD-8W083GHZ | 0.8~3 GHz (800~3000 MHz) | $194.69 | |
10 Way RF Power Divider | ATO-PD-10WDC3GHZ | DC~3 GHz (DC~3000 MHz) | $763.49 |
12 Way RF Power Divider | ATO-PD-12W28GHZ | 2~8 GHz (2000~8000 MHz) | $636.59 |
16 Way RF Power Divider | ATO-PD-16W083GHZ | 0.8~3 GHz (800~3000 MHz) | $543.19 |
32 Way GPS Power Divider | ATO-PD-32W0827GHZ | 0.8~2.7 GHz (800~2700 MHz) | $1,859.79 |
Note: The prices in the table list are for reference only. If you want to get current quotations and other customized product information, please contact us now.
How to Choose the Right Power Divider?
When choosing a power divider, the following technical parameters are very important:
- Frequency Range: The frequency range in which the power divider can work effectively, usually expressed in GHz.
- Insertion Loss: The power loss of the signal when passing through the power divider, usually expressed in decibels (dB).
- Isolation: The degree of signal isolation between different output ends, usually expressed in decibels (dB). The higher the isolation, the less signal interference.
- Power Handling Capacity: The maximum input power that the power divider can handle, usually expressed in watts (W).
- Impedance: The input and output impedance of the power divider, usually 50Ω or 75Ω.
